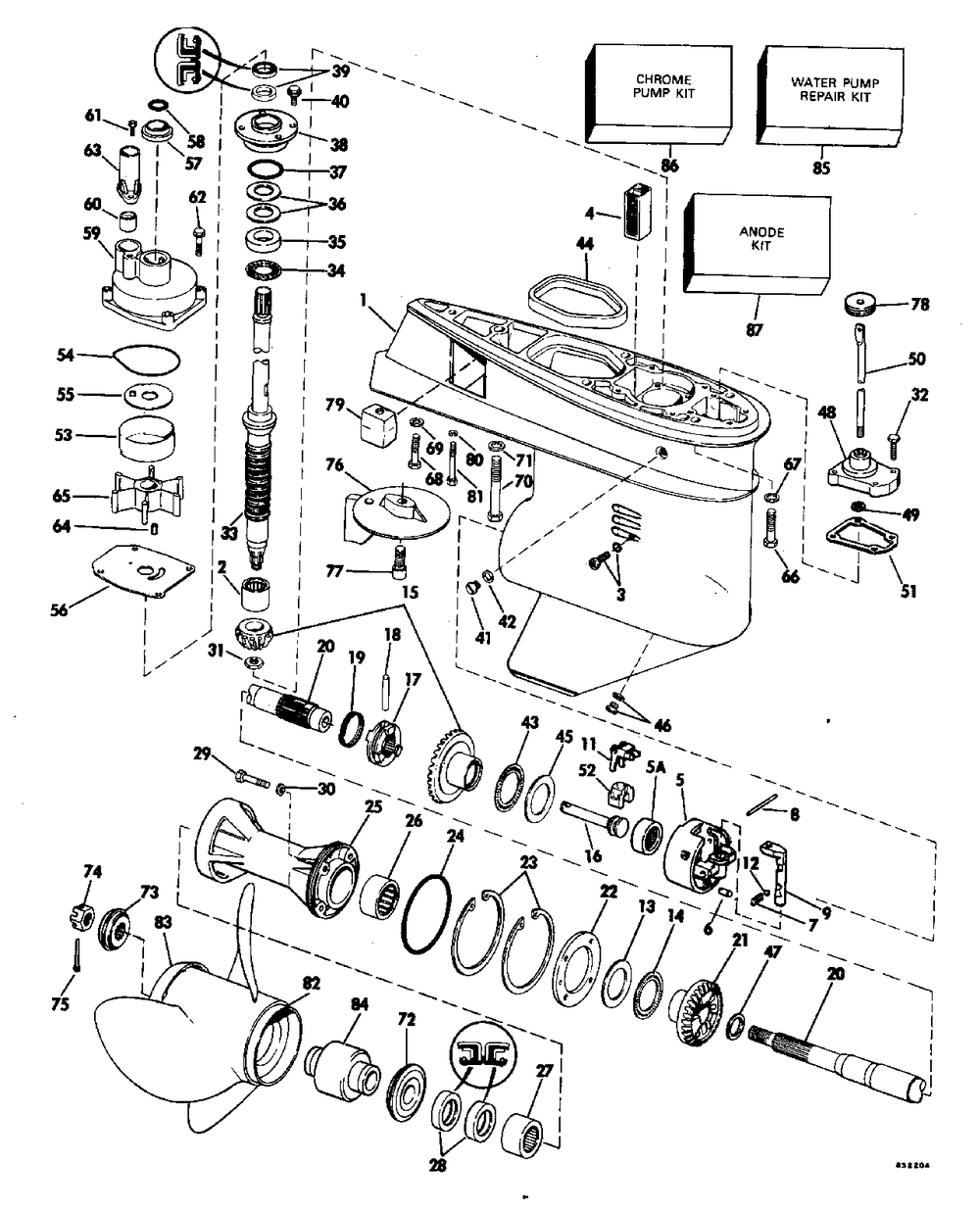

Gearcase - 20" transom

Evinrude E70TLCTE
Evinrude
#oem кодцена
2
0382343
Подшипник
3
0324852
Retaining Screw
4
0314175
Водозаборная решетка
5
0391365
Brg Hgs, Pin&spring
6
0202136
Штифт
7
0326666
Пружина
8
0320145
Штифт
9
0326670
Detent
11
0324037
Shifter Lever
12
0327345
Ball, Detent
13
0313447
Шайба
14
0382408
Bearing Ay, Thrust
15
0397338
Gearset, Fwd&pin
16
0326668
Вал
17
0318303
Рычаг переключения
18
0313448
Штифт
19
0324369
Пружина
20
0439185
Вал гребново винта
21
0318304
Reverse Gear
22
0313453
Plate, Retainer
23
0313445
Прокладка
24
0313446
Уплотнительное кольцо
25
0434391
P-shft Brg Hsg Ay
26
0382407
Подшипник игольчатый
27
0379504
Needle Brg Ay
28
0330137
Seal, Drl 5-pk
29
0320041
Screw Brg Hsg
30
0317178
Уплотнение
31
0313339
Гайка
32
0307151
Винт
33
0391378
D-shaft-lng
34
0385068
Подшипник опорный
35
0317230
Упорная шайба
36
0317231
36
0317232
Shim 005
36
0323889
Shim-pinion .003
36
0323890
Shim-pinion .004
37
0313754
Уплотнительное кольцо
38
0385087
Dr Shft Brgseal3/4
39
0321466
Oil Ret 5 Pk ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
40
0909386
Screw-ret Plate
41
0307551
Пробка сливная
42
0311598
Washer-10 Pk
43
0385043
Thrust Brg Ay
44
0324937
Уплотнение
45
0324766
Упорная шайба
46
0318544
Drain Screw
47
0316484
Упорная шайба
48
0388651
Cvr&bush Ay-rod
49
0318372
Уплотнительное кольцо
50
0327337
Shift Rod-long
51
0314082
Gasket 5 Pk
52
0334163
Cradle-shift
53
0324980
Liner-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
54
0324981
Seal-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
55
0321940
Plate-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
56
0341038
Imp Hsg Plate ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
57
0341732
Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
58
0326649
O-ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
59
0432955
Wtr Pump Kit
5A
0382407
Подшипник игольчатый
60
0314008
Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
61
0319292
Винт
62
0324334
Screw, 5 Pk ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
63
0319276
Guide Tube
64
0323950
Key-impeller ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
65
0396725
Imp & Key Ay ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391634)
66
0552968
Винт
67
0307708
Стопорная шайба
68
0306503
Винт
69
0306470
Стопорная шайба
70
0313697
Винт
71
0306314
Lockwasher 4pk
72
0127084
Bushing, Thrust
73
0315810
Проставка
74
0314503
Гайка гребного винта
75
0314502
Шплинт
76
0338742
Tab, Trim-std
77
0313715
Винт
78
0321452
Уплотнитель резиновый
79
0327482
Filler Block
80
0303886
Шайба
81
0322000
Винт
82
0763300
Prop Al, 14 X 9
82
0763301
Prop, Al 14 X 11
82
0765181
Prop, Al 13.75x13
82
0765182
Винт гребной алюминиевый 13,5 х 15
82
0765184
Prop Ay, Al 13.2x19
82
0765185
Prop Ay, Al 13.2x21
82
0390895
82
0390750
82
0763957
Ssp V4 13.75x13
82
0763930
Viperv4 13.875x17
82
0763931
Viperv4 13.875x19
82
0389512
82
0389514
Sst V-4 23"
82
0389792
Sst V-4 11"
82
0763929
Viper V413.875x15
82
0765183
Prop, Al 13.25x17
83
0314188
Converg Ring
83
0332393
Converging Ring, V4
84
0384977
85
0396726
See Pricebook
85
0438602
Рем.комплект водяного насоса
86
0389145
Chrome Pump Kit
87
0392461
Anode Kit
307853
0307853
Seal, Screw ( Not Shown)
311598
0311598
Washer-10 Pk ( Not Shown)
393138
0396730
( Not Shown)
