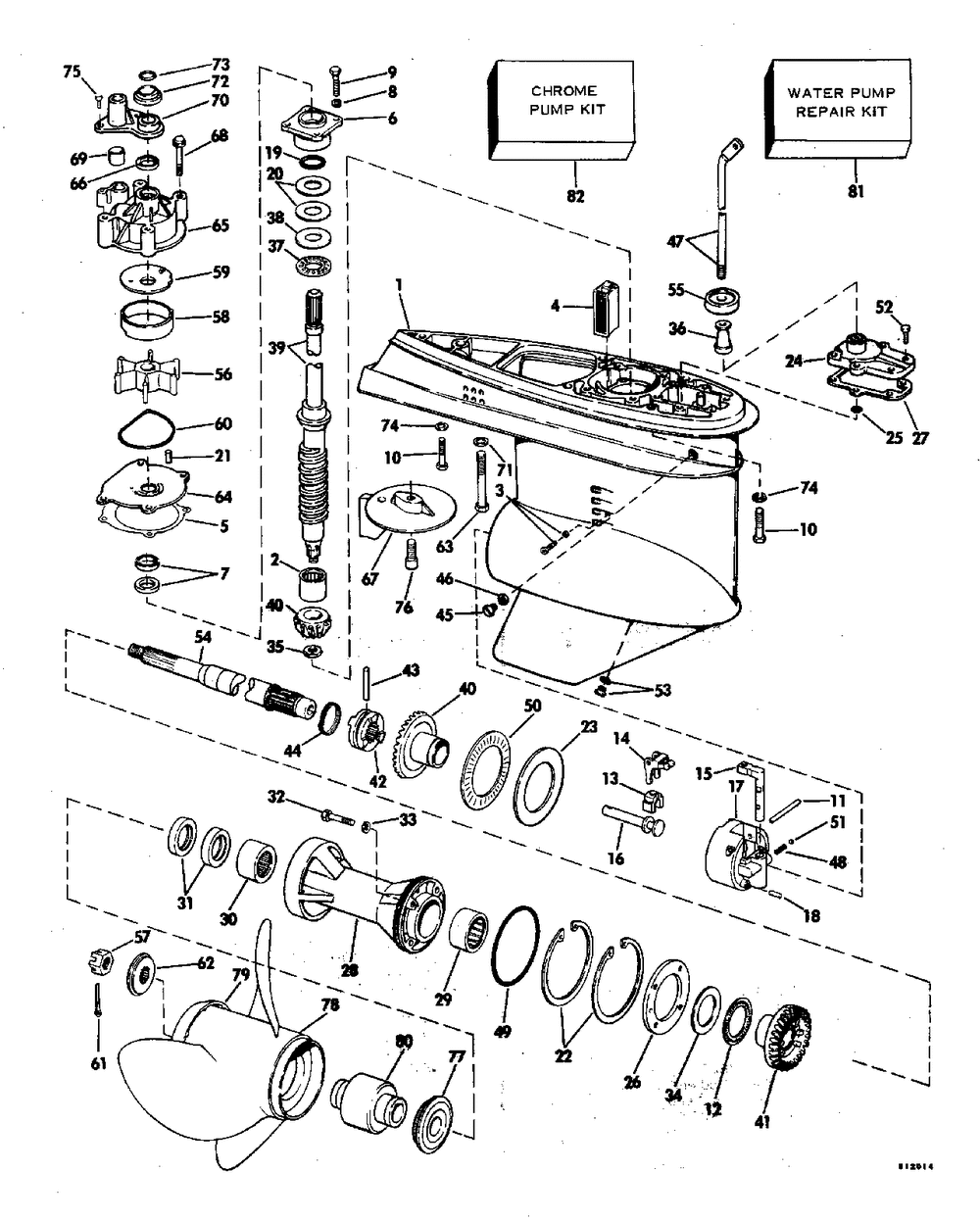

Редуктор
Редуктор

Редуктор

Evinrude E140TRLCIH

oem код

название

цена

G-case&brg Ay, V4

Ndle Brg, Bh-1820

Retaining Screw

Screen-wtr Intake

Gasket,wtr Pmp 5pk ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0439476

Ds Brg Hsg&seal Ay

0321453

Oil Seal ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

Шайба

Screw Brg Hsg

Винт

Штифт

Bearing Ay, Thrust

Cradle-shift

Shifter Lever

Detent

Shaft-shifter

Brg Hgs, Pin&spring

Штифт

Уплотнительное кольцо

Shim 005

Shim-pinion-003

Shim-pinion-004

Key-impeller ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

Прокладка

Упорная шайба

Cover Ay, Shift Rod

Уплотнительное кольцо

Пластина

Прокладка

Ps Brg Hsg&seal Ay

Подшипник игольчатый

Needle Brg Ay

Seal, Drl 5-pk

Винт

Уплотнение

Упорная шайба

Nut Pinion

Spacer-shift Rod ( 25 Inch Transom Models)

0387656

Thrust Brg Ay

0327656

Упорная шайба

5000777

Kit Ay, 2pc D/shaft ( 20 Inch Transom Models)

5000778

Kit Ay, D-shaft 2pc ( 25 Inch Transom Models)

See Pricebook

Gear, Reverse V4

Shifter-clutch Dog

Штифт

Пружина

Пробка сливная

Washer-10 Pk

( 20 Inch Transom Models)

0323270

( 25 Inch Transom Models)

0312870

Пружина

0313446

Уплотнительное кольцо

Thrust Brg Ay

Ball, Detent

Screw, 1/4-20

Drain Screw

Вал гребново винта

Grommet Exh Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

5001593

Kit Ay,impeller ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0314503

Гайка гребного винта

0395072

Imp. Hsg. Kit ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0321176

Plate, Liner ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0321120

Seal Imp Hsg Pl ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

Шплинт

Проставка

Винт

Cup & Plate Ay ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0395072

Imp. Hsg. Kit

0321453

Oil Seal ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0338742

Tab, Trim-std

0323626

Screw-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0314008

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0306314

Lockwasher 4pk

0320943

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0310585

O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

0307708

Стопорная шайба

0306643

Screw ( Also Included In Water Pump Repair Kit, (includes Impeller Housing} 391637)

Винт

Bushing, Thrust

Prop, Al 14 X 11

Prop, Al 13.75x13

Винт гребной алюминиевый 13,5 х 15

Prop, Al 13.25x17

Prop Ay, Al 13.2x19

Prop Ay, Al 13.2x21

Viper V413.875x15

Viperv4 13.875x17

Viperv4 13.875x19

Sst V-4 23"

Prop Al, 14 X 9

Sst V-4 11"

Converging Ring, V4

Рем.комплект водяного насоса

0435526

Cup & Plate Ay

307853

0307853

Seal, Screw ( Not Shown)

389819

0398182

See Pricebook ( Not Shown 20 Inch Transom Models)

389820

0398183

See Pricebook ( Not Shown 25 Inch Transom Models)

391598

0391598

Clutch Hub & Tag ( Not Shown)
