Gearcase - 20" transom Каталог оригинальных запчастей для лодочных моторов Evinrude E75TRLCIH (1981)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1981
E75TRLCIH

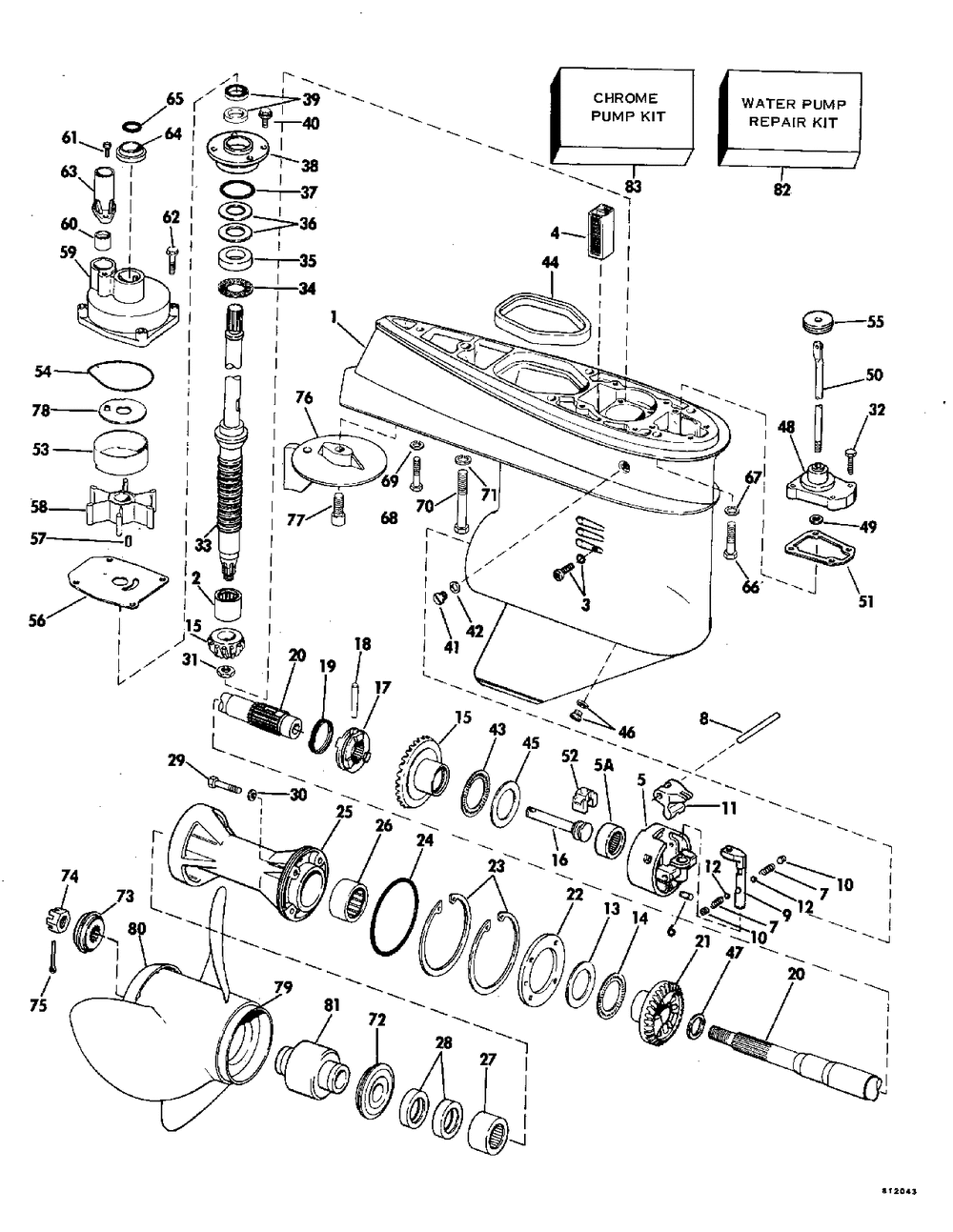

Gearcase - 20" transom
Gearcase - 20" transom

Gearcase - 20" transom

Evinrude E75TRLCIH

oem код

название

цена

0393752

( Models With "h" Model Number Suffix Only)

5005458

Gearcase&brg Ay ( Models With "m" Model Number Suffix Only)

Подшипник

Retaining Screw

Водозаборная решетка

Brg Hsg&pin Ay ( Models With "h" Model Number Suffix Only)

0391365

Brg Hgs, Pin&spring ( Models With "m" Model Number Suffix Only)

0202136

Штифт

0312870

Spring ( Models With "h" Model Number Suffix Only)

0326666

Spring ( Models With "m" Model Number Suffix Only)

0317274

Pin ( Models With "m" Model Number Suffix Only)

0326670

Detent ( Models With "m" Model Number Suffix Only)

0323209

Detent ( Models With "h" Model Number Suffix Only)

0317276

Set Screw ( Models With "h" Model Number Suffix Only)

0317273

Lever ( Models With "h" Model Number Suffix Only)

0324037

Shifter Lever ( Models With "m" Model Number Suffix Only)

Ball, Detent

Шайба

Bearing Ay, Thrust

Gearset, Fwd&pin

( Models With "h" Model Number Suffix Only)

0326668

Shaft ( Models With "m" Model Number Suffix Only)

Рычаг переключения

Штифт

Пружина

Вал гребново винта

Reverse Gear

Plate, Retainer

Прокладка

Уплотнительное кольцо

P-shft Brg Hsg Ay

Подшипник игольчатый

Needle Brg Ay

Seal, Drl 5-pk

Screw Brg Hsg

Уплотнение

Гайка

Винт

D-shaft-lng ( Models With "h" Model Number Suffix Only)

Подшипник опорный

Упорная шайба

Shim 005

Shim-pinion .003

Shim-pinion .004

Уплотнительное кольцо

0385087

Dr Shft Brgseal3/4

0321466

Oil Ret 5 Pk ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

Винт

Пробка сливная

Washer-10 Pk

Thrust Brg Ay

Уплотнение

Thrust Washer ( Models With "h" Model Number Suffix Only)

0324766

Thrust Washer ( Models With "m" Model Number Suffix Only)

Drain Screw

Упорная шайба

Cvr&bush Ay-rod

Уплотнительное кольцо

0327337

Shift Rod-long

0314082

Gasket 5 Pk

0334163

Cradle-shift ( Models With "m" Model Number Suffix Only)

0324980

Liner-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0324981

Seal-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0321452

Уплотнитель резиновый

0341038

Imp Hsg Plate ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0323950

Key-impeller ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0396725

Imp & Key Ay ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0432955

Wtr Pump Kit ( Models With "h" Model Number Suffix Only)

0382407

Подшипник игольчатый

0314008

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0319292

Винт

0324334

Screw, 5 Pk ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0319276

Guide Tube

0341732

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

0326649

O-ring ( Models With "h" Model Number Suffix Only)

Винт

Стопорная шайба

Винт

Стопорная шайба

Винт

Lockwasher 4pk

Bushing, Thrust

Проставка

Гайка гребного винта

Шплинт

Tab, Trim-std

Винт

Plate-imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Hsg 391634)

Prop Al, 14 X 9

Prop, Al 14 X 11

Prop, Al 13.75x13

Винт гребной алюминиевый 13,5 х 15

0765183

Prop, Al 13.25x17 ( Models With "h" Model Number Suffix Only)

Prop Ay, Al 13.2x19

Prop Ay, Al 13.2x21

Viperv4 13.875x17

Viperv4 13.875x19

Sst V-4 23"

Sst V-4 11"

Viper V413.875x15

Converg Ring

Converging Ring, V4

See Pricebook

Рем.комплект водяного насоса

0389145

Chrome Pump Kit

307853

0307853

Seal, Screw ( Not Shown)

311598

0311598

Washer-10 Pk ( Not Shown)

389641

0396730

( Not Shown Models With "h" Model Number Suffix Only)

392032

0396730

( Not Shown Models With "m" Model Number Suffix Only)
