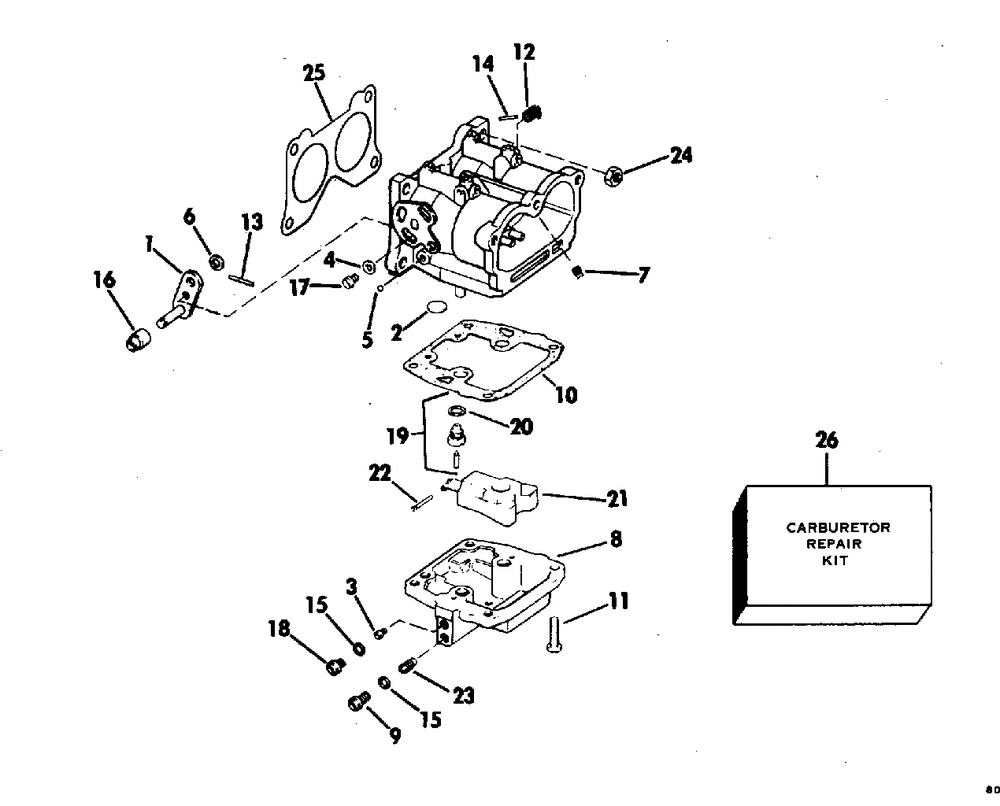

Карбюратор

Evinrude E90TLCIH
Evinrude
#oem кодцена
1
0387839
( Upper Carburetor Only)
2
0202310
Plug 5pk
3
0322776
Orifice Idle, .029
3
0322936
Orifice-idle ( Models With "m" Model Number Suffix)
3
0323003
Orifice # 25 ( Models With "h" Model Number Suffix)
4
0306547
Washer ( Upper Carburetor Only)
5
0304201
Lead Shot
6
0307596
Шайба
7
0324025
Orifice, #34 ( Models With "m" Model Number Suffix)
7
0320016
Orifice # 32 ( Models With "m" Model Number Suffix)
7
0317473
Orifice Plug#30 ( Models With "h" Model Number Suffix)
7
0323003
Orifice # 25 ( Models With "h" Model Number Suffix)
8
0391755
8
0391761
9
0330131
Резьбовая пробка
10
0338884
Прокладка
11
0307175
Винт
12
0314887
Пружина
13
0314575
Roll Pin ( Lower Carburetor Only)
14
0303261
Палец
15
0321117
Кольцо
16
0308199
Roller ( Upper Carburetor Only)
17
0302812
Screw ( Upper Carburetor Only)
18
0317501
Резьбовая пробка
19
0396520
Float Valve & Seat
20
0301996
Шайба
21
0383437
Float & Arm
22
0302661
Штифт
23
0322810
Orifice Plug-carb
23
0321449
Orifice Plug-60c
23
0317183
Orifice Plug
24
0316291
Nut Stud
25
0327707
Gasket 5pk
26
0439076
Рем.компл.Карбюратора
390397
0390397
( Not Shown Models With "h" Model Number Suffix)
390398
0390398
( Not Shown Models With "h" Model Number Suffix)
390399
0390399
( Not Shown Models With "h" Model Number Suffix)
390400
0391717
Carb Ay-lower ( Not Shown Models With "h" Model Number Suffix)
391712
0391712
( Not Shown)
391714
0391714
( Not Shown Models With "m" Model Number Suffix)
391715
0391715
( Not Shown Models With "m" Model Number Suffix)
391716
0391716
( Not Shown Models With "m" Model Number Suffix)
391717
0391717
Carb Ay-lower ( Not Shown Models With "m" Model Number Suffix)
391719
0391719
( Not Shown)
