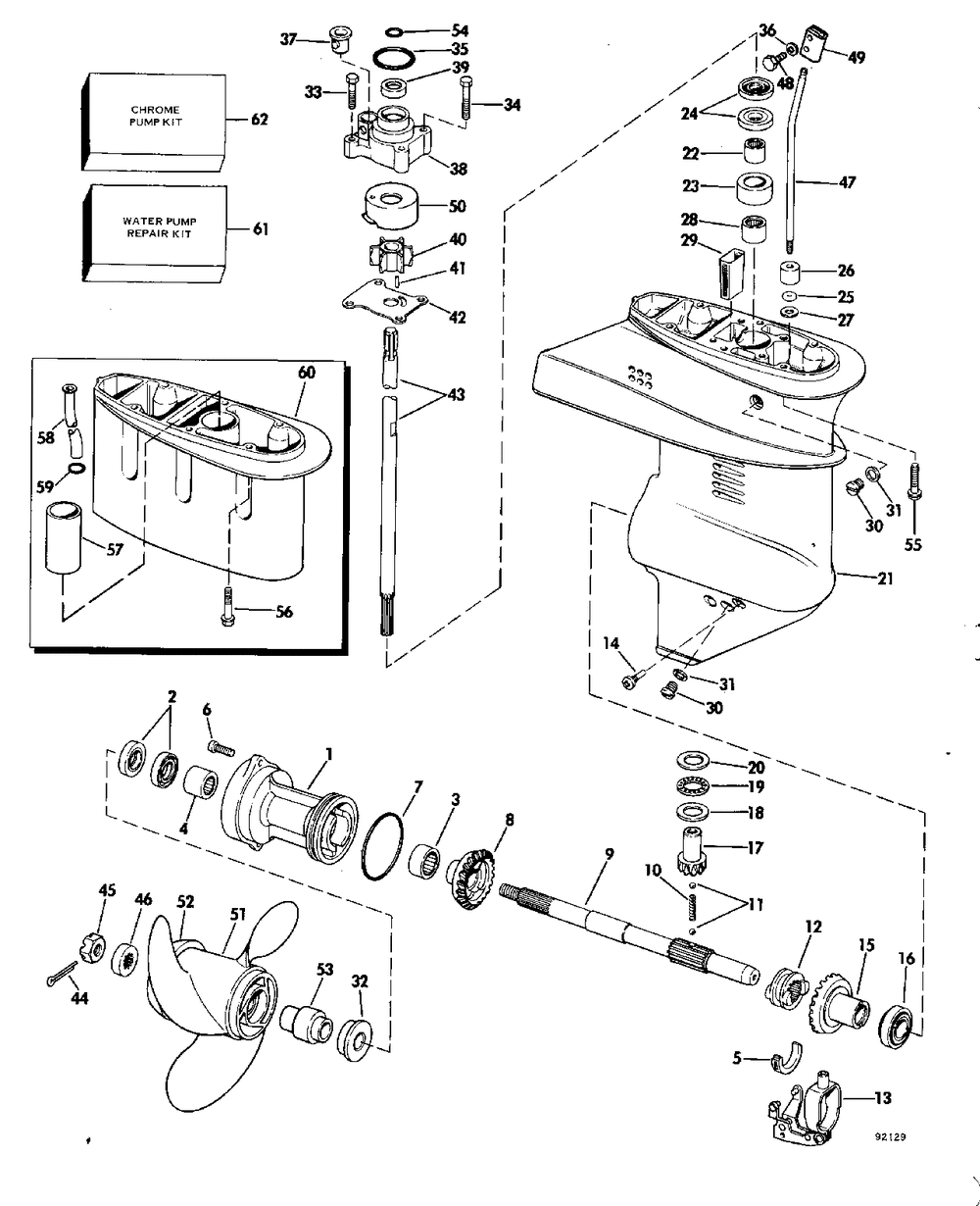

Редуктор

Evinrude E10RCSE
Evinrude
#oem кодцена
1
0437774
Корпус
2
0321481
Oil Ret 5 Pk
3
0386125
Подшипник
4
0386231
Подшипник
5
0325014
Зажим
6
0304071
Винт
7
0308627
Кольцо
8
0395046
Gears & Clutch Dog
9
0438578
Вал гребной
10
0316505
Пружина
11
0316506
Шарик фиксирующий
12
0325013
Clutch Dog, 2-lug
13
0388416
Shift Lvr&yoke Ay
14
0308376
Винт
15
0395046
Gears & Clutch Dog
16
0386186
Roller Brg Ay
17
0322341
Pinion-ds-12:29
18
0322202
Упорная шайба
19
0388000
Thrust Brg Ay-pin
20
0322201
Упорная шайба
21
0438617
G-case Ay, Less D/s
22
0386014
Подшипник
23
0318874
Гильца
24
0321480
Сальник
25
0301877
Кольцо
26
0304765
Втулка
27
0321738
Шайба
28
0386071
Подшипник
29
0318991
30
0307551
Пробка сливная
31
0311598
Washer-10 Pk
32
0318966
Упорная шайба
33
0324334
Screw, 5 Pk ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
34
0319126
Screw-exh Hsg ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
35
0319085
Seal-imp Hsg 5pk ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
36
0301551
Стопорная шайба
37
0302497
Grommet ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
38
0435390
Корпус помпы
39
0318972
Seal ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
40
0386084
Impeller Ay ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
41
0300611
Dowel ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
42
0318995
Plate-imp Hsg ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
43
0321455
D-shaft Std/15"
43
0321456
D-shaft Long/20"
44
0552906
Шплинт
45
0318971
Гайка гребного винта
46
0323942
Thrust Washer-prop
47
0318992
Shift Rod-lwr
47
0319298
Shift Rod, Lwr 20"
48
0304024
Винт
49
0303794
Connector, Shft Rod
50
0324097
Cup-impeller Hsg ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
51
0778772
Prop, Al 9.25x10
51
0386669
Al Prop 9.9&15hp 5
51
0763457
Prop, Al 9.25 X 8 ( Sailboat Models Only)
51
0386670
51
0763892
Ss Prop 9.25x9
52
0332395
Converging Ring
53
0386119
54
0303067
O Ring 5 Pk ( Also Included In Water Pump Repair Kit (includes Impeller Housing) 391388)
55
0331025
Винт
56
0331025
Винт
57
0319340
Extension
58
0320025
Extension Wtr Tube
59
0202893
Уплотнительное кольцо
60
0331152
G-case Extension
60
0123023
Gearcase Extension ( Sailboat Models Only)
61
0394711
Рем.комплект помпы
62
0394711
Рем.комплект помпы
386710
0392002
( Not Shown)
388001
0438617
G-case Ay, Less D/s ( Not Shown)
