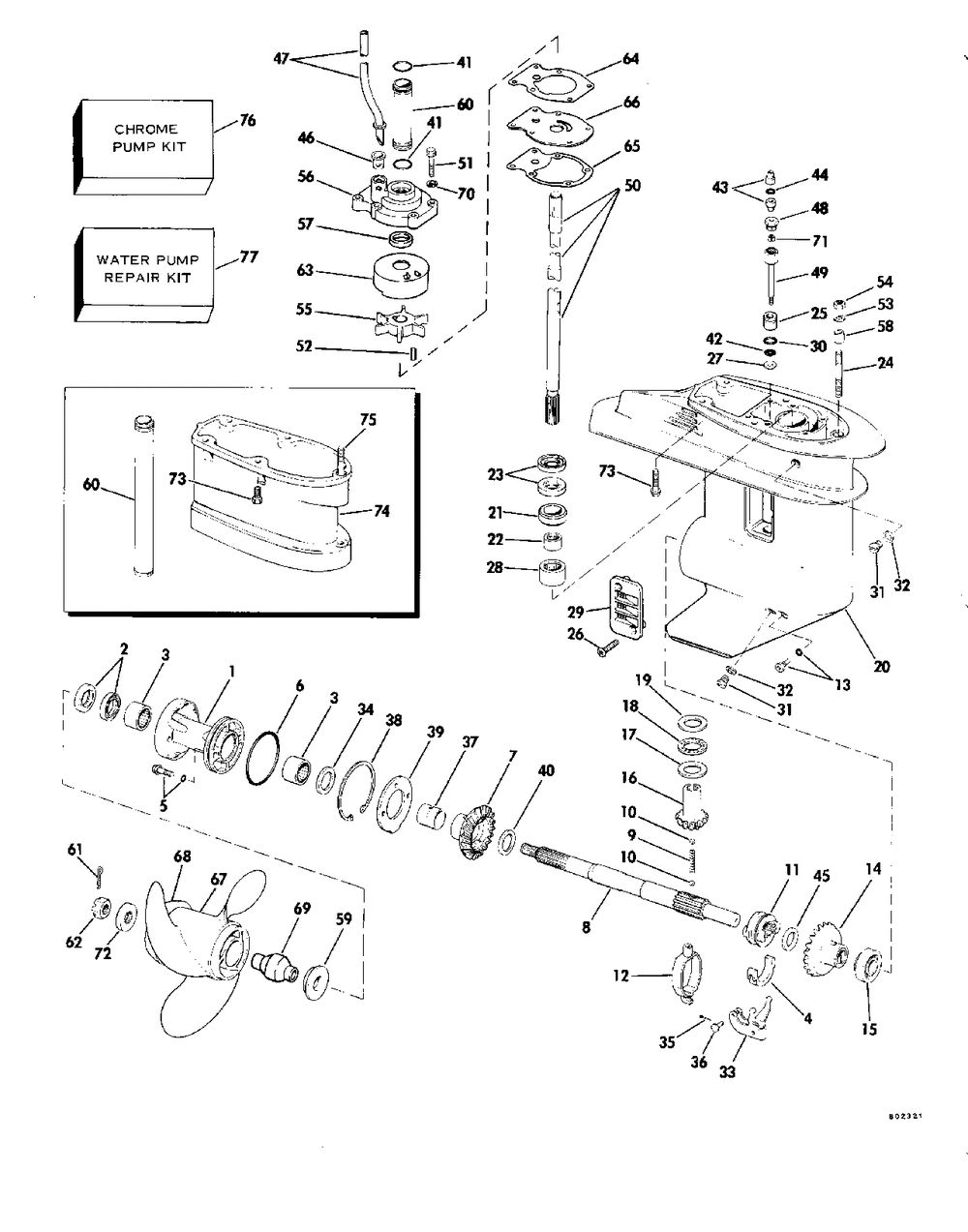

Gearcase - 35 Каталог оригинальных запчастей для лодочных моторов Evinrude E35TLESM (1980)

Gearcase - 35

Evinrude E35TLESM

oem код

название

цена

Корпус

Сальник

Brg Ay, Needle

Cradle Clutch Dog

Sst Screw

Уплотнительное кольцо

Gear Rev 14:27

Ff Prop Shaft Ay

Spring-detent

Шарик фиксирующий

Ff Shifter C Dog

Yoke & Connector

Винт

Gear & Bushng, Fwd

Roller Brg Ay

Pinion Gear, 14:27

Thrust Washer-lwr

Thrust Brg Ay

Ff Thrust Washer

Bearing Hsg Dshaft

Подшипник

Oil Ret Brg Hsg Ds

Ff Stud

Втулка

Винт

Шайба

Brg Ay, Needle

Кольцо

Пробка сливная

Washer-10 Pk

Ff Thrust Washer

Шплинт

Штифт

Ff Bushing Rev Gr

Ff Retaining Ring

Ff Retainer Plate

O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0301877

Кольцо

0391652

Scraper&o-ring

0326956

O-ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0319686

Ff Thrust Washer

0302497

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

Water Tube Std

Connctr, Shft Rod

Kit Ay, Shift Rod

Вертикальный вал 15"

Driveshaft 20"

Screw ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0300611

Dowel ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

Стопорная шайба

Стопорная шайба

Гайка

Imp & Key ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0393631

Impeller Hsg Ay

0321786

Seal Prop Shaft ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

Втулка

Ff Thrust Bushing

Spacer, Long

Ff Cotter Pin 5pk

Ff Prop Nut

Cup, Imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0325535

Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0325537

Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

0327704

Plate-impeller Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

Al Prop 35hp 7p

Prop, Al 10x17

Prop, Al 10.5x11 Rh

Prop, Al/10.3x13

Prop, Al 11 X 9 Rh

Prop, Ss-10x11 3bld

Converging Ring

Washer ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391636)

Keeper

Spacer Prop Nut

Screw-pivot Cap

Винт

Ff Stud

Wtr Pump Kit

317178

0317178

Уплотнение

325541

0325541

Shift Rod-lng ( Not Shown)

390383

0390383

390855

0392454

( Not Shown)
