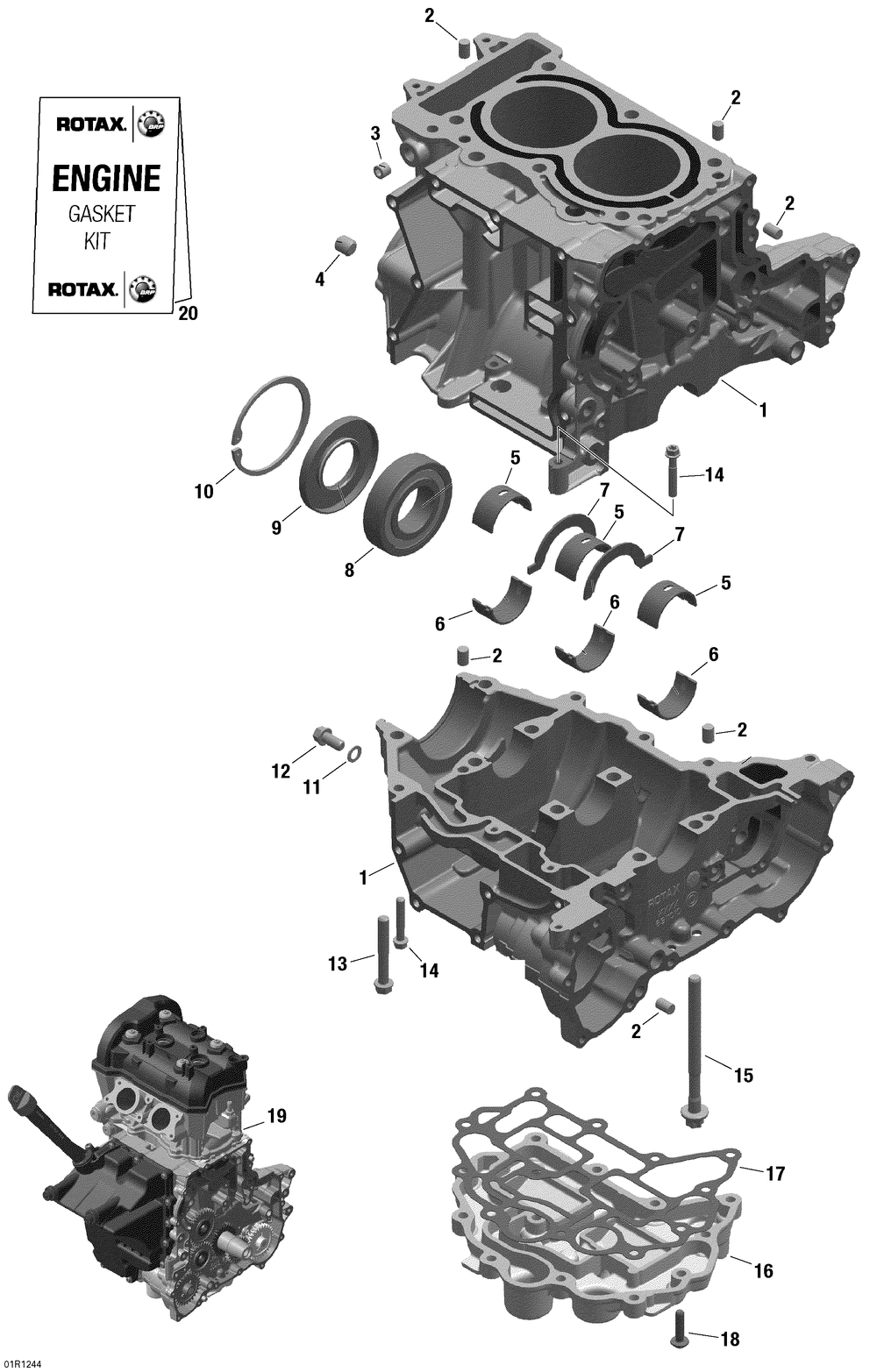

Блок двигателя

Ski-Doo (Bombardier) Skandic SWT 600 ACE DOHC (4-strokes)

Блок двигателя

#

oem код

название

цена

2

Палец центровочный

Палец центровочный

3

Screw ( Tightening Torque 12nm +/- 12%)

Screw ( Tightening Torque 12nm +/- 12%)

4

Goupille *pin-threaded ( Tightening Torque 15nm +/- 12%)

Goupille *pin-threaded ( Tightening Torque 15nm +/- 12%)

5

Подушка

Подушка

6

Подушка

Подушка

7

Полукольцо

Полукольцо

8

Подшипник

Подшипник

9

Anneau Etanche *seal-oil ( Included In Gasket Kit)

Anneau Etanche *seal-oil ( Included In Gasket Kit)

10

Anneau *retaining Ring

Anneau *retaining Ring

11

Bague Etanche *ring-sealing ( Included In Gasket Kit)

Bague Etanche *ring-sealing ( Included In Gasket Kit)

12

Vis Hexalob.epa*screw-torx Flange ( Tightening Torque 20nm +/- 12%)

Vis Hexalob.epa*screw-torx Flange ( Tightening Torque 20nm +/- 12%)

13

Vis Hexalob.epa*torx Flange Screw ( Tightening Torque 23nm +/- 12%)

Vis Hexalob.epa*torx Flange Screw ( Tightening Torque 23nm +/- 12%)

14

Screw Torx Flange M6 X 35 ( Tightening Torque 11nm +/- 12%)

Screw Torx Flange M6 X 35 ( Tightening Torque 11nm +/- 12%)

15

Torx-reduced Shaft Screw M9x113 ( Tightening Torque 20nm +/- 12% +120)

Torx-reduced Shaft Screw M9x113 ( Tightening Torque 20nm +/- 12% +120)

16

Carter Huile*oil Sump

Carter Huile*oil Sump

17

Прокладка

Прокладка

18

Torx-reduced Shaft Screw M6x25 ( Tightening Torque 14nm +/- 12%)

Torx-reduced Shaft Screw M6x25 ( Tightening Torque 14nm +/- 12%)

19

Moteur 602 Semi*block-long 602

Moteur 602 Semi*block-long 602

20

Ensemble*gasket Kit 602

Ensemble*gasket Kit 602

1-6

Carter Moteur *crankcase Assy (includes 1 To 6 )

Carter Moteur *crankcase Assy (includes 1 To 6 )
