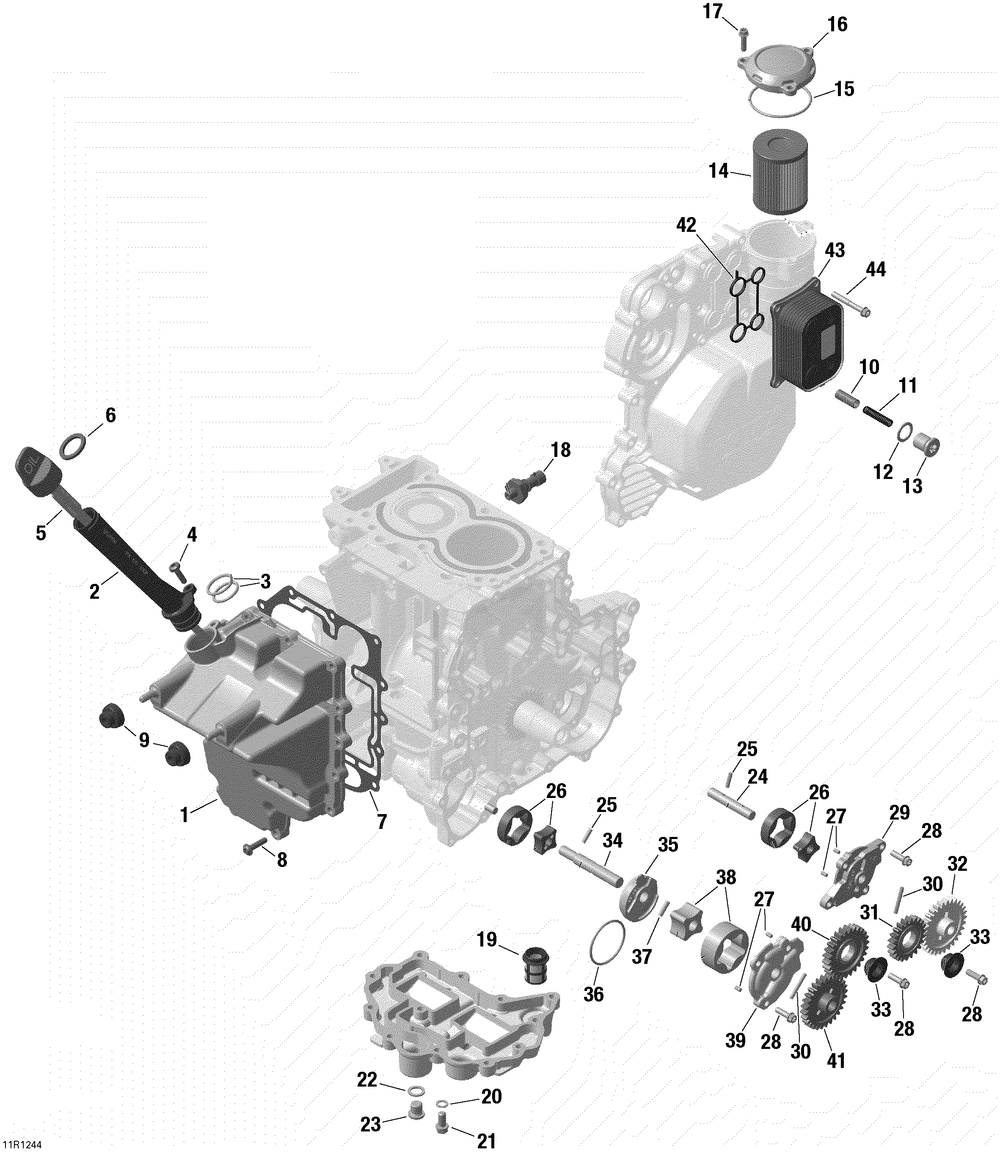

Масляная система

Ski-Doo (Bombardier) Skandic SWT 600 ACE DOHC (4-strokes)
Ski-Doo (Bombardier)
#oem кодцена
1
420956210
Couvercle*oil Sump Cover
2
420656900
Tube*oil Filler Tube
3
420430440
Кольцо
4
420441381
Torx-reduced Shaft Screw M6x20 ( Tightening Torque 10nm +/- 12%)
6
420431790
Anneau*gasket Ring ( Included In Gasket Kit)
7
420431770
Прокладка
8
420841546
Torx-reduced Shaft Screw M6x25 ( Tightening Torque 14nm +/- 12%)
9
420860150
Rondelle*rubber Grommet
10
420256517
Regu.pres.pist *pres.egulating Piston
11
420239445
Пружина
12
420430622
Gasket Ring ( Included In Gasket Kit)
13
420441372
Vis*plug Screw ( Tightening Torque 30nm +/- 12%)
14
420956123
Фильтр маслянный
15
420650500
Кольцо
16
420210418
Крышка масленного фильтра
17
420440207
Screw Torx Flange M6 X 20 ( Tightening Torque 11nm +/- 12%)
18
420256915
Interrupteur Pr*oil Pressure Switch ( Tightening Torque 12nm +/- 12%)
19
420656680
Сетка маслянная
20
420950141
Bague Etanche *ring-sealing ( Included In Gasket Kit)
21
420440852
Vis Hexalob.epa*screw-torx Flange ( Tightening Torque 20nm +/- 12%)
22
420250640
Rondelle Cuivre*copper Washer ( Included In Gasket Kit)
23
420241700
Screw-plug M12 X 1.5 ( Tightening Torque 20nm +/- 12%)
24
420820120
Шестерня ведущая с валом
25
420232730
Goupille Aiguil*pin-needle
26
420256347
Rotor Pompe Hui*rotor-pump Oil
27
420929075
Goupille Aiguil*pin-needle
28
420440207
Screw Torx Flange M6 X 20 ( Tightening Torque 11nm +/- 12%)
29
420911080
Крышка масляного насоса
30
420232430
Палец направляющий
31
420835054
Engrenage 22d*idle Gear 22 Th
32
420834882
Engrenage 29d *gear-pump Oil
33
420947390
Espaceur* Graduated Spacer
34
420837916
Шестерня ведущая с валом
35
420611950
Крышка масляного насоса
36
420631830
Кольцо
37
420632220
Goupille Aiguil*pin-needle
38
420256836
Rotor Pompe Hui*rotor-pump Oil
39
420611980
Крышка масляного насоса
40
420835320
Engrenage 26d*idle Gear 26 Th
41
420834885
Engrenage 28d *gear-pump Oil
42
420431870
Прокладка
43
420656692
Radiateur Huile*oil Radiator ( Tightening Torque 11nm +/- 12%)
44
420440324
Винт
5-6
420856665
Tube Huile *oil Lever Tube
