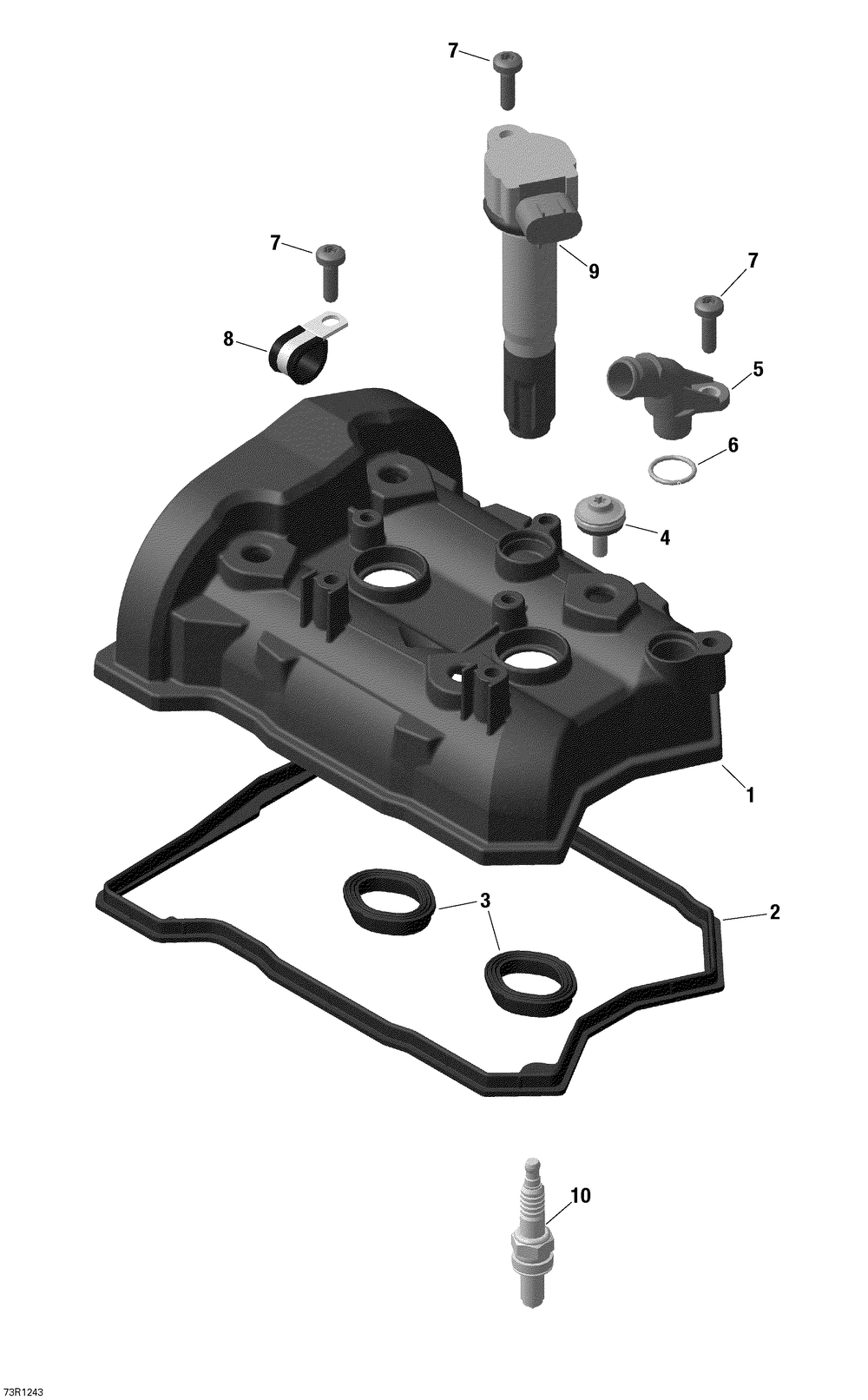

Клапаная крышка

Ski-Doo (Bombardier) Skandic WT 600 ACE (4-strokes)
Ski-Doo (Bombardier)
#oem кодцена
1
420911040
Крышка клапанная
2
420431620
Joint Etanche*gasket ( Included In Gasket Kit)
3
420431750
Joint Etanche*gasket ( Included In Gasket Kit)
4
420440495
Vis*torx Distance Screw M6 ( Tightening Torque 10nm +/- 12%)
5
420611240
Connecteur*connector
6
420631260
Joint Torique *o-ring ( Included In Gasket Kit)
7
420441381
Torx-reduced Shaft Screw M6x20 ( Tightening Torque 10nm +/- 12%)
8
420851492
Bride De Cable *clamp-cable
9
420666140
Катушка зажигания
10
415129429
Bougie *plug-spark ( Tightening Torque 15nm +/- 12%)
