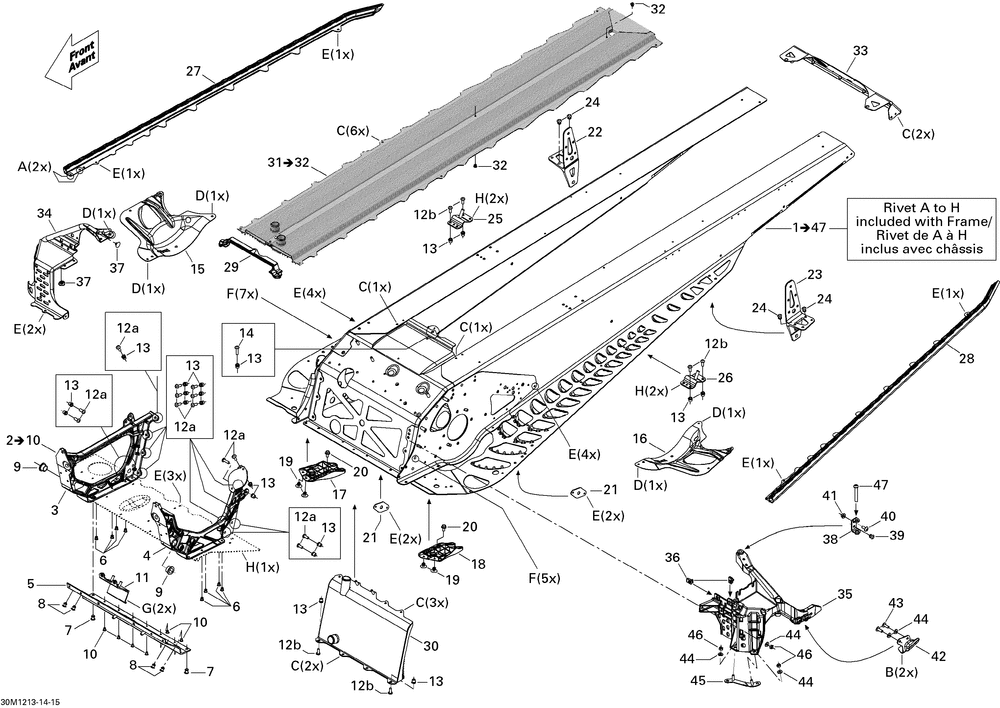

Рама

Ski-Doo (Bombardier) Summit SP 600HO E-TEC
Ski-Doo (Bombardier)
#oem кодцена
1
415129644
Chassis *frame (includes 1 To 47, Track 146" )
1
415129643
Chassis *frame (includes 1 To 47, Track 154" )
1
415129642
Chassis *frame (includes 1 To 47, Track 163" )
2
518326843
Module E *module E (includes 2 To 10 )
3
518326795
Longeron Dr *rh Member
4
518326796
Longeron Ga *lh Member
5
518326198
Traverse Avant *front Member
6
293150144
Rivet Stavex *stavex Rivet
7
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
8
293150119
Заклепка
9
505072690
Изолирующая втулка
A
390402300
Заклепка 3/16
B
293150194
Заклепка
C
390909200
Заклепка
D
390909100
Заклепка
E
293150144
Rivet Stavex *stavex Rivet
F
293150146
Rivet Henrob *henrob Rivet
G
293150119
Заклепка
H
293150174
Rivet Hemlock *hemlock Rivet
11
518325943
Support Mag *mag Support
13
233261414
Гайка
14
207662044
Винт
15
518324874
Renfort Dr *reinforcement
16
518324875
Renfort Ga *reinforcement
17
518325782
Deflecteur Dr. *rh Deflector
18
518325783
Deflecteur Ga. *lh Deflector
19
293150104
Заклепка 3/16
20
207561244
Винт
21
518326647
Plaque Renfort *plate-reinf.
22
518324976
Attache Droite *rh.bracket
23
518324977
Кронштейн
24
293150147
Заклепка
25
518325973
Embase Arrire *rear Base
26
518325974
Embase Arrire *rear Base
27
518325159
Rouleau Droit *rh.roller
28
518325160
Rouleau Gauche *lh.roller
29
518326656
Уплотнение
30
518326485
Radiateur Avant*front Radiator
31
518326728
Radiateur Arr.s*rear Rad. Weld (includes 31 To 32, Track 146" )
31
518326692
Radiateur Arr.s*rear Rad. Weld (includes 31 To 32, Track 154" )
31
518326735
Radiateur Arr.s*rear Rad. Weld (includes 31 To 32, Track 163" )
32
293150144
Rivet Stavex *stavex Rivet
33
518325421
Capuchon *rear Cap
34
518326216
Etrier Droit *rh.stirup
35
518326820
Etrier Ga. *lh.stirup
36
250000079
Гайка M5 X 0.8 (отпуск.по 10 шт)
37
293730042
Dard 5-6 *dart 5-6
38
518326961
Attache *attach
39
293150147
Заклепка
40
250000534
Torx-truss M/s Bzn 3m-2353y M6x16
41
233061414
Гайка Din.6927
42
518326960
Суппорт
43
250000536
Torx-truss M/s Bzn Nylon Lock M6x18
44
250200039
Шайба
45
518326986
Attache *attach
46
232561414
Гайка с тефлоном
47
250000535
Torx-truss M/s Bzn 3m-2353y M8x55
12a
207662044
Винт
12b
207661644
Винт
