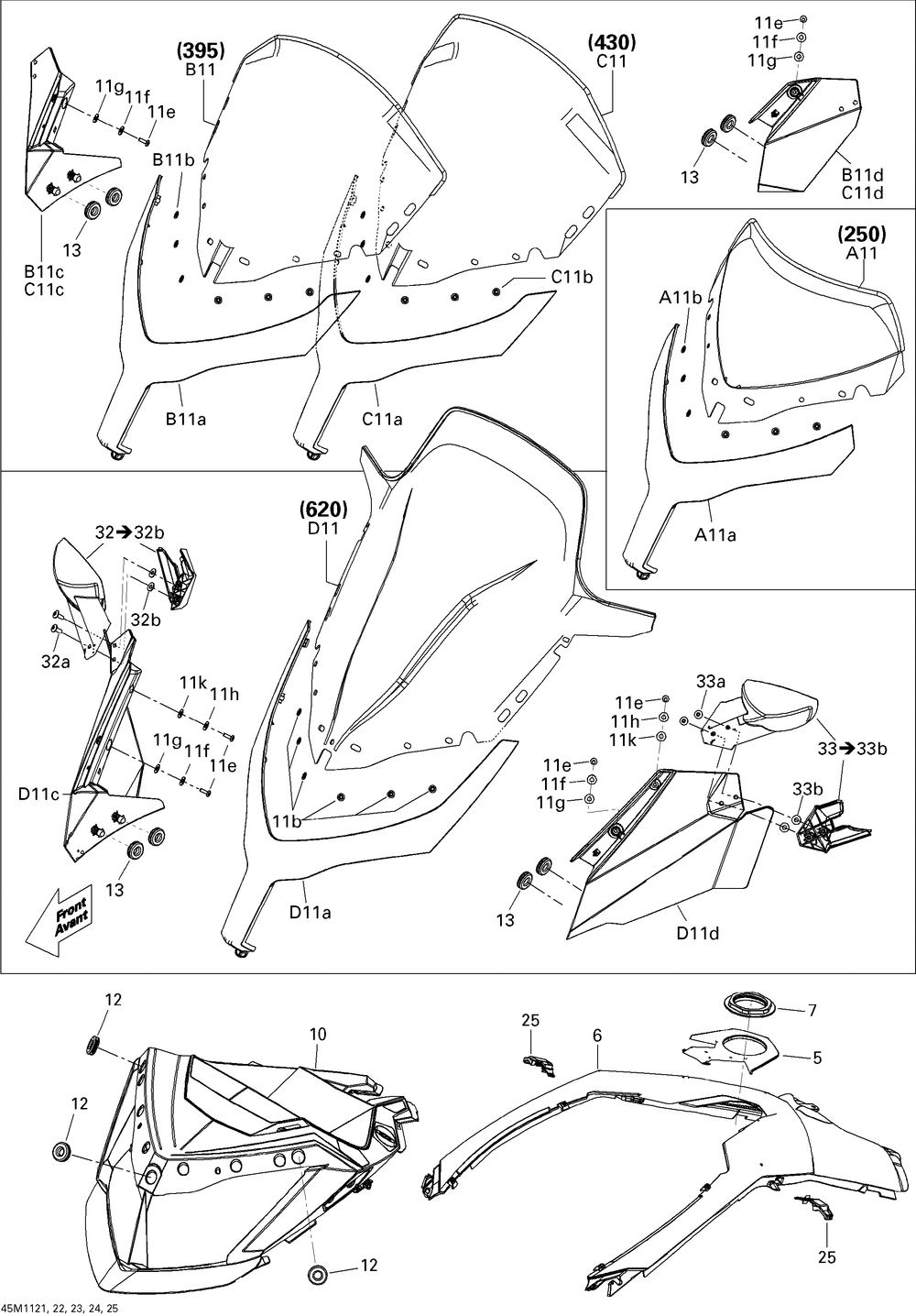

Стекло ветровое и консоль

Ski-Doo (Bombardier) MX Z X & TNT 1200 XR
Ski-Doo (Bombardier)
#oem кодцена
5
517304027
Крышка консоли
6
517303741
Консоль
6
517304381
Консоль
7
517304518
Гайка
10
517303742
Support Ind. *indicator Support (x )
10
517303972
Support Ind. *indicator Support (tnt )
12
517303756
Rondelle *grommet (x )
13
517303756
Rondelle *grommet (tnt )
25
517303973
Защелка панели
11e
250000146
Torx-screw Truss Head Pt.k50x16 (tnt )
11f
250200025
Rondelle M5 *washer M5 (tnt )
11g
250200024
Rondelle M5 *rubber Washer M5 (tnt )
A11
517303888
Pare-brise 250 *windshield 250 (x )
B11
517303887
Pare-brise 395 *windshield 395 (tnt )
A11a
517303959
Support *support (x )
A11b
732610072
Ecrou Pression *push Nut (x )
B11a
517303798
Support *support (tnt )
B11b
732610072
Ecrou Pression *push Nut (tnt )
B11c
517304024
Deflecteur Air *deflector-air Rh (tnt )
B11d
517304025
Deflecteur Air *deflector-air Lh (tnt )
