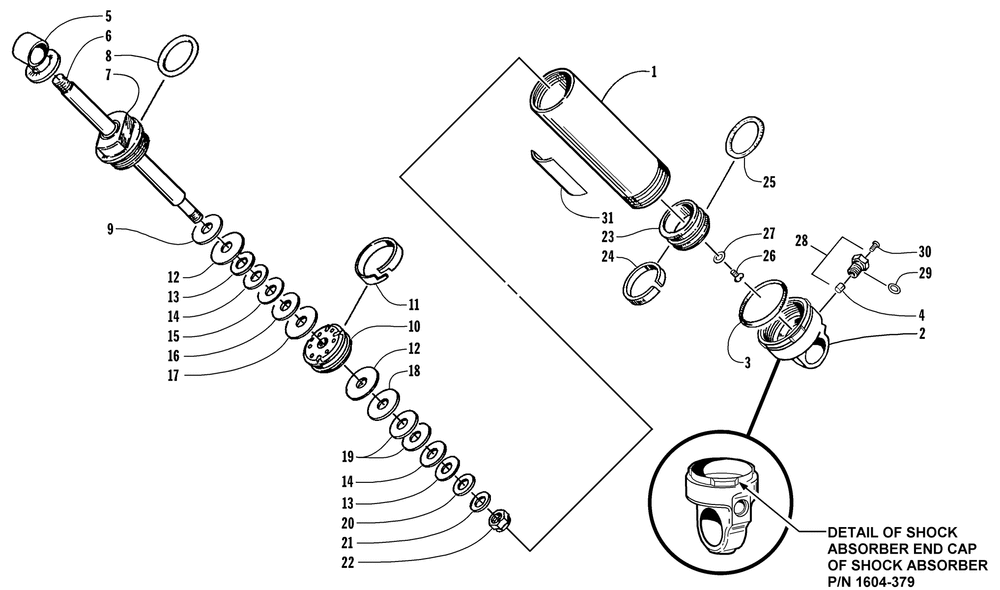

Задняя подвеска, передний амортизатор

Arctic Cat ZR 500

Задняя подвеска, передний амортизатор

#

oem код

название

цена

1

Body, Shock

Body, Shock

2

Endcap, Shock - Assy (fox)

Endcap, Shock - Assy (fox)

3

O-ring -end Cap

O-ring -end Cap

5

Eyelet, Shock-assy

Eyelet, Shock-assy

6

Shaft, Chrome.498 X 5.75"

Shaft, Chrome.498 X 5.75"

7

Endcap - Assy (inc. 8)

Endcap - Assy (inc. 8)

8

O Ring-cap Assy.

O Ring-cap Assy.

9

Washer, Top Out-1.125od X .378 Id X.093

Washer, Top Out-1.125od X .378 Id X.093

10

Piston, 0.059 Orifice

Piston, 0.059 Orifice

11

Strap, Piston-(step)-turcite

Strap, Piston-(step)-turcite

12

Valve, 1.250x.010(3/8id)

Valve, 1.250x.010(3/8id)

13

Valve, .800x.010(3/8id)

Valve, .800x.010(3/8id)

14

Valve, .900x.010(3/8id)

Valve, .900x.010(3/8id)

15

Valve, Shock 1.000 X.012(3/8id)

Valve, Shock 1.000 X.012(3/8id)

16

Valve, Shock 1.100 X.012(3/8id)

Valve, Shock 1.100 X.012(3/8id)

17

Valve, Shock 1.300 X.012

Valve, Shock 1.300 X.012

18

Valve, 1.100x.010(3/8id)

Valve, 1.100x.010(3/8id)

19

Valve, 1.000x.010(3/8id)

Valve, 1.000x.010(3/8id)

20

Valve, Shock- .700 Dia X .010

Valve, Shock- .700 Dia X .010

21

Washer, Backup

Washer, Backup

22

Nut, Cap-fox Shock

Nut, Cap-fox Shock

23

Piston, Floating-assy (1.459 Bore) (inc. 24-27)

Piston, Floating-assy (1.459 Bore) (inc. 24-27)

24

Strap, Floating Piston - Teflon

Strap, Floating Piston - Teflon

25

O-ring, .139 Cs X 1.171 Id (fox)

O-ring, .139 Cs X 1.171 Id (fox)

26

Screw, Relief W/ O-ring (inc. 27)

Screw, Relief W/ O-ring (inc. 27)

27

O-ring, Relief Screw

O-ring, Relief Screw

28

Valve, Pressure-ass'y (inc. 4 And 29)

Valve, Pressure-ass'y (inc. 4 And 29)

29

O-ring-end Cap Fitting(fox Only)

O-ring-end Cap Fitting(fox Only)

30

Винт 8-32x.25

Винт 8-32x.25

31

Decal, Warning

Decal, Warning

1

Body, Shock-1.625x5.580

Body, Shock-1.625x5.580

2

End Cap, Shock - W/lugs

End Cap, Shock - W/lugs

3

O-ring, End Cap

O-ring, End Cap

5

Eyelet, Shock - .630 - Weld't

Eyelet, Shock - .630 - Weld't

8

O-ring, Outer

O-ring, Outer

9

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

11

Strap, Piston - Teflon

Strap, Piston - Teflon

12

Valve, Shock-1.300 Dia X .012

Valve, Shock-1.300 Dia X .012

13

Valve, Shock-1.100 Dia X .012

Valve, Shock-1.100 Dia X .012

14

Valve, Shock-1.000 Dia X .012

Valve, Shock-1.000 Dia X .012

15

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

16

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

17

Valve, Shock-1.250 Dia X .010

Valve, Shock-1.250 Dia X .010

18

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

19

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

20

Valve, Shock- .700 Dia X .010

Valve, Shock- .700 Dia X .010

21

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

22

Nut, Flex - 3/8-24 Unf Z&y

Nut, Flex - 3/8-24 Unf Z&y

23

Piston, Floating-assy (inc. 24-27)

Piston, Floating-assy (inc. 24-27)

25

O-ring, Floating Piston

O-ring, Floating Piston

26

Screw, Mach - Hsfh 10-24x3/8 Blk (inc. 27)

Screw, Mach - Hsfh 10-24x3/8 Blk (inc. 27)

27

O-ring, -008 (3/16x5/16x1/16)

O-ring, -008 (3/16x5/16x1/16)

28

Valve, Pressure - Assy (inc. 4 And 29)

Valve, Pressure - Assy (inc. 4 And 29)

29

O-ring, Pressure Valve

O-ring, Pressure Valve

30

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

31

Decal, Shock-warning

Decal, Shock-warning
