Вал руля Запчасти для снегоходов Arctic Cat ZR 500 (1998)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

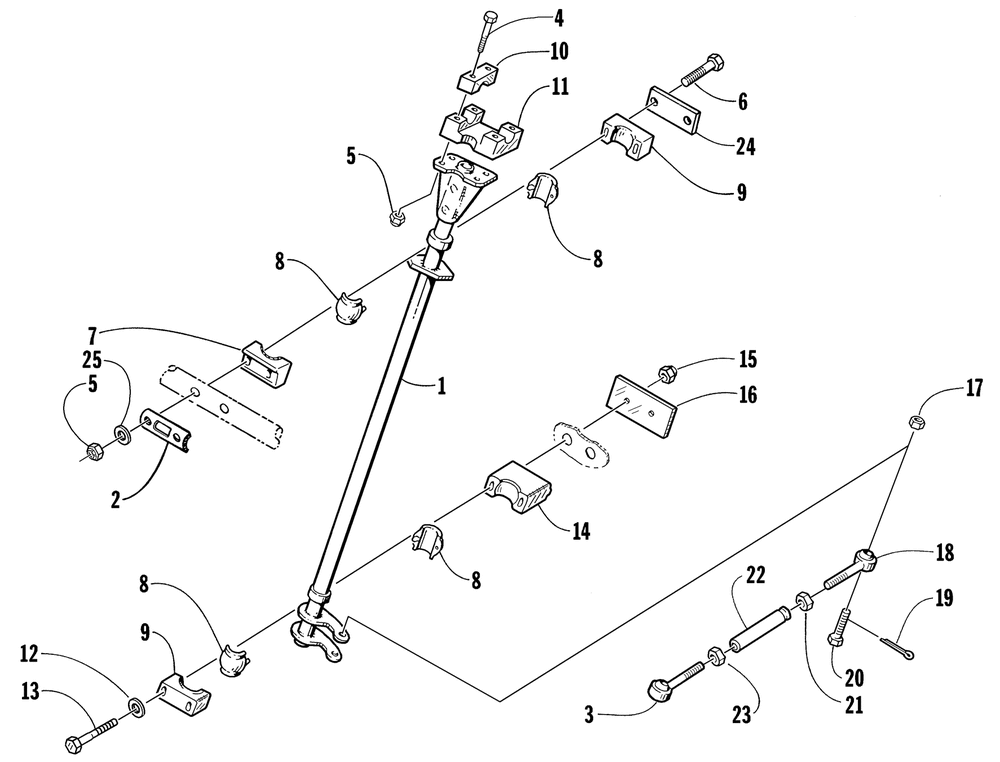

Вал руля

Arctic Cat ZR 500

Вал руля

#

oem код

название

цена

1

Post, Steering-weld't (alum. Frt. End)

Post, Steering-weld't (alum. Frt. End)

2

Plate, Backing-strg Support

Plate, Backing-strg Support

3

Rod End-lh

Rod End-lh

4

Screw, Cap-hh 1/4-20 X2.00 G5 Z&y

Screw, Cap-hh 1/4-20 X2.00 G5 Z&y

5

Гайка

Гайка

6

Screw, Cap-hh 1/4-20 X3.50 G5 Z&y

Screw, Cap-hh 1/4-20 X3.50 G5 Z&y

7

Hsng, Bearing-upper-ptd Blk

Hsng, Bearing-upper-ptd Blk

8

Bearing, Steering Post

Bearing, Steering Post

9

Cap, Bearing - Steering Post

Cap, Bearing - Steering Post

10

Крышка крепления руля

Крышка крепления руля

11

Adjuster, Block Steering-0105-351 Painted

Adjuster, Block Steering-0105-351 Painted

12

Шайба

Шайба

13

Screw, Cap -hh 5/16-18 X 3.75 Zn

Screw, Cap -hh 5/16-18 X 3.75 Zn

14

Housing, Bearing-lower(99prod)

Housing, Bearing-lower(99prod)

15

Гайка

Гайка

16

Plate, Backing-steering Post (l/c)

Plate, Backing-steering Post (l/c)

17

Nut, Flex-lock3/8-16 Unc

Nut, Flex-lock3/8-16 Unc

18

Наконечник правый

Наконечник правый

19

Pin, Cotter 3/32 X 1

Pin, Cotter 3/32 X 1

20

Screw, Cap -hh 3/8-16 X 1.75 (drilled)

Screw, Cap -hh 3/8-16 X 1.75 (drilled)

21

Гайка

Гайка

22

Tube, Tie Rod-.625 X 14.00" (3/8-24)

Tube, Tie Rod-.625 X 14.00" (3/8-24)

23

Гайка

Гайка

24

Stop, Steering

Stop, Steering

25

Шайба

Шайба
