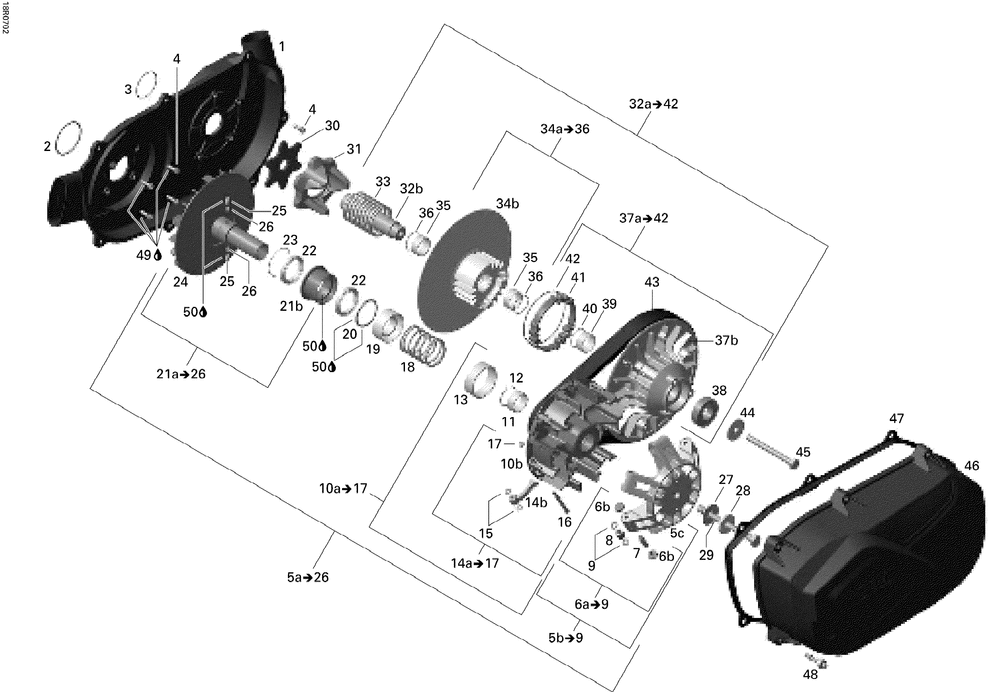

Трансмиссия

Can-Am (Bombardier) Outlander 500 XT 4 X 4
Can-Am (Bombardier)
#oem кодцена
1
420611405
Guide*cvt Air Guide Update Kit
2
420430407
Кольцо
3
420631087
Кольцо
4
420440202
Винт
7
420233893
Гильза
8
417223387
Ролик
9
420626231
Шайба
15
420626290
Rondelle * Thrust Washer
18
420238166
Пружина-сжатия
19
420627574
Седло пружины
20
420460430
Rondelle *friction Washer
22
420632372
Подшипник шариковый
23
420245951
Anneau Retenu *ring-retaining
25
420229577
Manchon Ressort*sleeve-spring
26
420239134
Пружина
27
420627920
Упорная шайба
28
420627765
Шайба пружинная
29
420641855
Vis Hex.m12x140*screw-hex.din.931
30
420627586
Plaque De Came *plate
31
420280199
Came Poulie Me.*cam V-660
33
420238173
Пружина
38
420932421
Подшипник шариковый
41
420660121
Engrenage Coupl*gear-torque
42
420245910
Кольцо уплотнитнльное
43
715000302
Ремень вариатора
44
420627590
Упорная шайба
45
420941909
Винт m10x110
46
420611395
Крышка вариатора
47
420430124
Joint Etanche * Gasket
48
420440567
Винт
49
293800060
Фиксатор резьбы loctite-243
50
293550021
Graisse Isoflex*grease-isoflex 50g
5a
420229577
Manchon Ressort*sleeve-spring (includes 5a To 26 )
5a
420238166
Ressort Poulie *spring-compression (includes 5a To 26 )
5a
420239134
Ressort *spring (includes 5a To 26 )
5a
420245951
Anneau Retenu *ring-retaining (includes 5a To 26 )
5a
420248555
Centrifugal Lever Set (includes 5a To 26 )
5a
420257195
Embrayage Pouli*clutch (includes 5a To 26 )
5a
420280157
Coupole Regulat*cup-governor Assy (includes 5a To 26 )
5a
420280313
Flasque Couli. *outer Half Assembly (includes 5a To 26 )
5a
420280374
Inner Half (includes 5a To 26 )
5a
420460430
Rondelle *friction Washer (includes 5a To 26 )
5a
420627577
Siege Ressort *seat-spring (includes 5a To 26 )
5a
420632375
Roulement Bille*bearing-ball (includes 5a To 26 )
5b
420280157
Coupole Regulat*cup-governor Assy (includes 5b To 9 )
6a
420281293
Slider Shoe Set (1 Set = 12 Shoes) (includes 6a To 9 )
10a
420248555
Centrifugal Lever Set (includes 10a To 17 )
10a
420280313
Flasque Couli. *outer Half Assembly (includes 10a To 17 )
14a
420248555
Centrifugal Lever Set (includes 14a To 17 )
21a
420229577
Manchon Ressort*sleeve-spring (includes 21a To 26 )
21a
420239134
Ressort *spring (includes 21a To 26 )
21a
420245951
Anneau Retenu *ring-retaining (includes 21a To 26 )
21a
420257195
Embrayage Pouli*clutch (includes 21a To 26 )
21a
420280374
Inner Half (includes 21a To 26 )
21a
420632375
Roulement Bille*bearing-ball (includes 21a To 26 )
21b
420257195
Embrayage Pouli*clutch
32a
420684679
Cvt Driven Pulley Ass Y (includes 32a To 42 )
32b
420220913
Arbre Poulie Me*shaft-driven
34a
420248233
Flasque Coulis.*half-inner Assy (includes 34a To 36 )
37a
420280173
Flasque Fixe *half-outher Assy (includes 37a To 42 )
