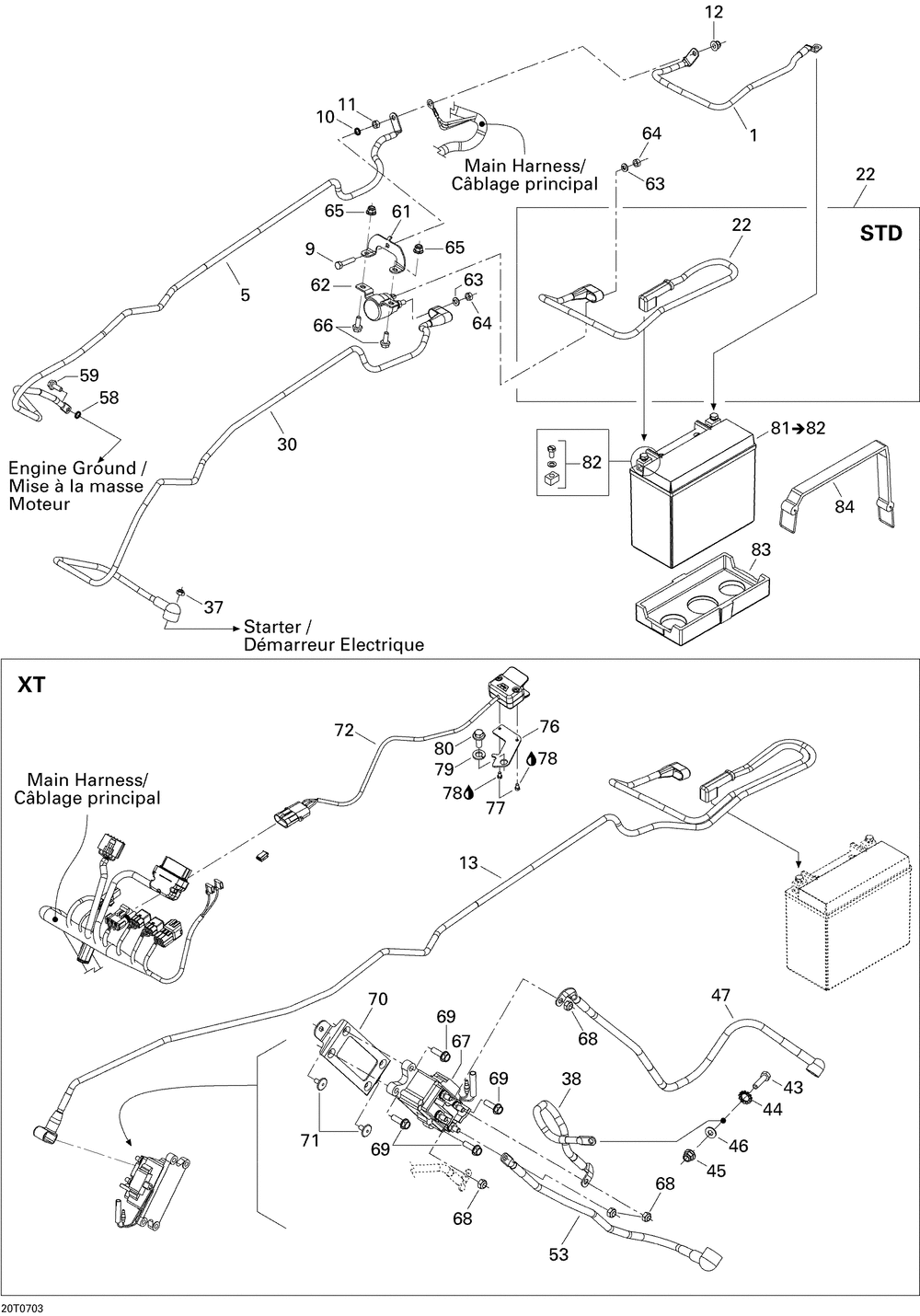

10- electrical system xt

Can-Am (Bombardier) Outlander Max 400 XT 4 X 4
Can-Am (Bombardier)
#oem кодцена
1
710000830
Cable Masse *cable-ground
5
710000844
Cable Masse *cable-ground
9
207162544
Винт
10
234461608
Washer-lock Serrated Din.6798a-a2
11
232061414
Гайка
12
233061414
Гайка Din.6927
13
710000843
Cable Positif *cable-positive (xt )
30
710000903
Cable Positif *cable-positive
37
232561414
Гайка с тефлоном
38
710000455
Cable Negatif *negative Cable (xt )
43
207662044
Screw-hex.flange Din.6921 (xt )
44
250200041
Washer-lock Serrated Int.ext.m6 (xt )
45
233261414
Nut-flange Elastic Din.6926 (xt )
46
224061121
Washer-flat (xt )
47
710000451
Cable Positif *cable-positive (xt )
53
710000454
Cable Positif *cable-positive (xt )
58
234461608
Washer-lock Serrated Din.6798a-a2
59
207561644
Винт
61
705201325
Supp. Solenoide*solenoid-supp.
62
515176011
Solenoide Dem. *relay-starter
63
234161601
Шайба Din.127b-a2
64
232061600
Гайка
65
233061414
Гайка Din.6927
66
207661244
Винт
67
710001000
Solenoide *solenoid (xt )
68
232561414
Nut-stop Elastic Din.985 (xt )
69
210262080
Screw-forming Hex.hd.fl.gm6174m (xt )
70
710000798
Sup. Solenoid *relay Bracket (xt )
71
390406500
Rivet-pop 3/16 *rivet-pop 3/16 (xt )
72
710001001
Interrupteur *switch (xt )
76
710000755
Support Noir *black Support (xt )
77
250000153
Slotted Head Hex Cap Screw 6-32 X 1/4 (xt )
78
293800060
Loctite 243 *loctite-243 (xt )
79
234101601
Washer-lock Helical Din.127b-a2 (xt )
80
250000029
Screw-hex.cap Din.961 M10 X 16 (xt )
81
410301203
Batterie Ytx20lbs*battery18amps(wet) (includes 81 To 82 )
82
295500849
Ens. Boulon Ba*fastener Battery Kit
83
710000279
Tampon Batterie*insulator Pad
84
293850077
Sangle Retenue *strap-rubber
