Сцепление Запчасти для квадроциклов ATV Arctic Cat 150 Utility (2011)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

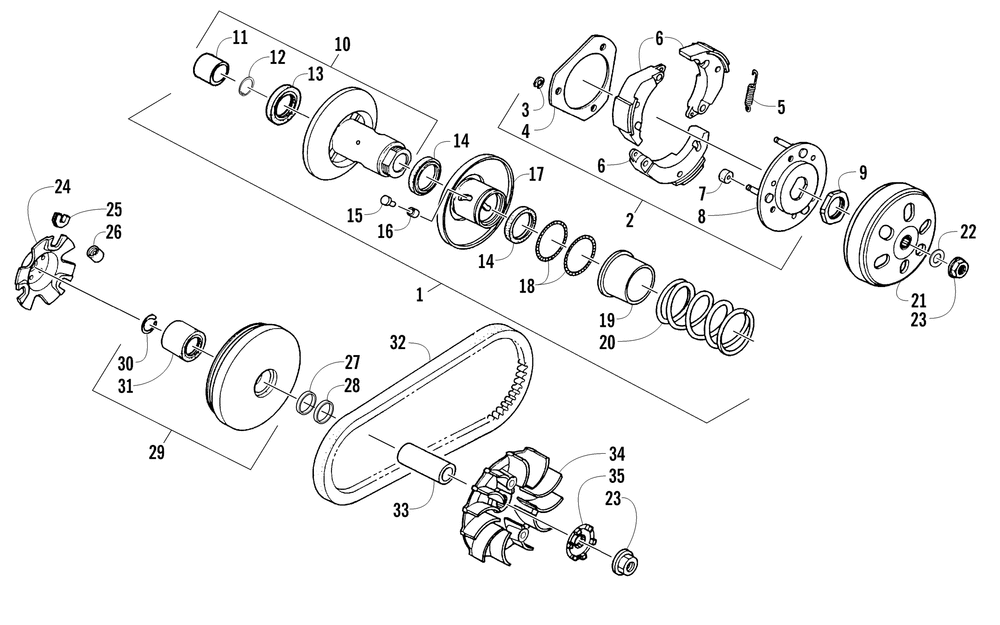

Сцепление

Arctic Cat 150 Utility

Сцепление

#

oem код

название

цена

1

Pulley Sub Assy (inc. 2-21)

Pulley Sub Assy (inc. 2-21)

2

Plate Assy Drive (inc. 3-8)

Plate Assy Drive (inc. 3-8)

3

Cir Clip 7mm

Cir Clip 7mm

4

Plate Clutch Side

Plate Clutch Side

5

Spring Clutch

Spring Clutch

6

Weight Clutch

Weight Clutch

7

Rubber Clutch Damper

Rubber Clutch Damper

8

Plate Comp Drive

Plate Comp Drive

9

Nut Special 28mm

Nut Special 28mm

10

Face Assy Driven (inc. 11-13)

Face Assy Driven (inc. 11-13)

11

Brg Ndl 20*29*18

Brg Ndl 20*29*18

12

Cir Clip In 28mm

Cir Clip In 28mm

13

Brg Ball Radial 6902u 15*28*7

Brg Ball Radial 6902u 15*28*7

14

Seal Driven Face 34*41*4

Seal Driven Face 34*41*4

15

Pin Roller Guide

Pin Roller Guide

16

Roller Guide

Roller Guide

17

Face Comp Movable Driven

Face Comp Movable Driven

18

O-ring Pinion Cap

O-ring Pinion Cap

19

Collar Seal

Collar Seal

20

Spg Driven Face

Spg Driven Face

21

Outer Clutch

Outer Clutch

22

Washer Thrust

Washer Thrust

23

Nut Flange 12mm

Nut Flange 12mm

24

Plate Ramp

Plate Ramp

25

Piece Slide

Piece Slide

26

Roller Comp Weight

Roller Comp Weight

27

Collar Drive Face

Collar Drive Face

28

Collar Drive Face

Collar Drive Face

29

Face Comp Movable Drive (inc. 30-31)

Face Comp Movable Drive (inc. 30-31)

30

Clip Piston Pin 33mm

Clip Piston Pin 33mm

31

Collar Drive Face

Collar Drive Face

32

Belt Drive

Belt Drive

33

Boss Drive Face

Boss Drive Face

34

Face Drive

Face Drive

35

Ratchet Kick Starter

Ratchet Kick Starter
