Suzuki LT-4WD Quad Runner

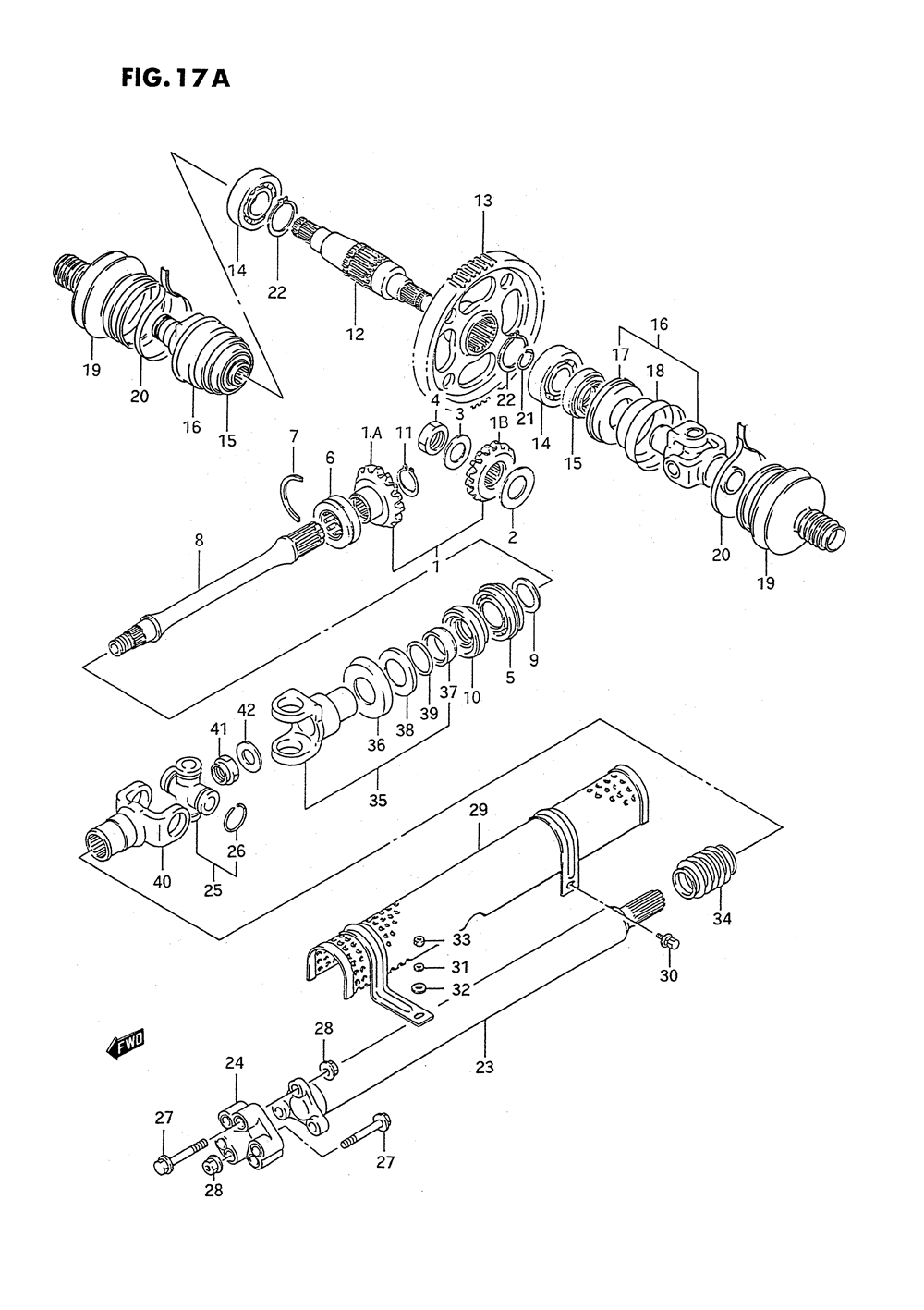

Secondary gear - propeller shaft (model r/s)

oem код

название

цена

24911-19B70

Gear, Secondary Drive Bevel

2-4

24935-19B00-090

Shim (t:0.90)

2-5

Shim (t:0.95)

Шайба

Гайка

Brg, Sec Driven Output Sft Fr

09263-30050

Brg, Sec Driven Gear, Mdl

09390-50002

Ring, Sec Driven Brg, Mdl

24961-19B01

Shaft, Secondary Output

9-1

09181-25186

Shim (t:0.50)

9-2

09181-25051

Shim, Sec Driven Gear

9-3

09181-25052

Shim, Sec Driven Gear

9-4

09181-25053

Shim, Sec Driven Gear

9-5

09181-25054

Shim, Sec Driven Gear

9-6

09181-25162

Shim 0.8

9-7

09181-25056

Shim, Sec Driven Gear

9-8

09181-25164

Shim 0.9

9-9

09181-25058

Shim, Sec Driven Gear

9-10

09181-25167

Washer, 5th Drive

9-11

09181-25060

Shim, Sec Driven Gear

9-12

09181-25061

Shim, Sec Driven Gear

9-13

09181-25062

Shim, Sec Driven Gear

9-14

09181-25063

Shim, Sec Driven Gear

09283-34008

Oil Seal, Driven Sft, Fr

08331-3124A

СТОПОРНОЕ КОЛЬЦО

27551-19B10

Shaft, Rear Final Driven

27541-19B10

Gear, Driven (nt:62)

09262-25073

Bearing (25x62x17)

27501-19B80

Joint, Rear Final Output

27592-19B80

.cover, Universal Joint

27593-19B70

.cover, Universal Joint

27153-19B70

Чехол защитный

44123-60A00

Clamp, Universal Joint

Circlip, 2nd Drive

СТОПОРНОЕ КОЛЬЦО

Вал гребного винта

Муфта

Joint Set, Universal Rr

.circlip

Болт

Гайка

Протектор

Болт

Шайба-замок

Washer (6.5x15x1.6)

Nut, No.1

Чехол защитный

Yoke, Fr Drive Bevel Gr

.plate

.collar

.plate, Oil Seal

.o Ring (d:1.0, Id:28)

27140-19B00

Yoke, Propeller Shaft Joint

09159-16004

Гайка

09160-16026

Washer, Fr Drive Output Yoke

24911-19B00

Gear, Drive Bevel

24921-19B00

Gear, Driven Bevel

2-1

2-2

2-3

2-6

Shim (t:1.00)

2-7

24935-19B00-105

Shim (t:1.05)

2-8

24935-19B00-110

Shim (t:1.10)

2-9

24935-19B00-115

Shim (t:1.15)
