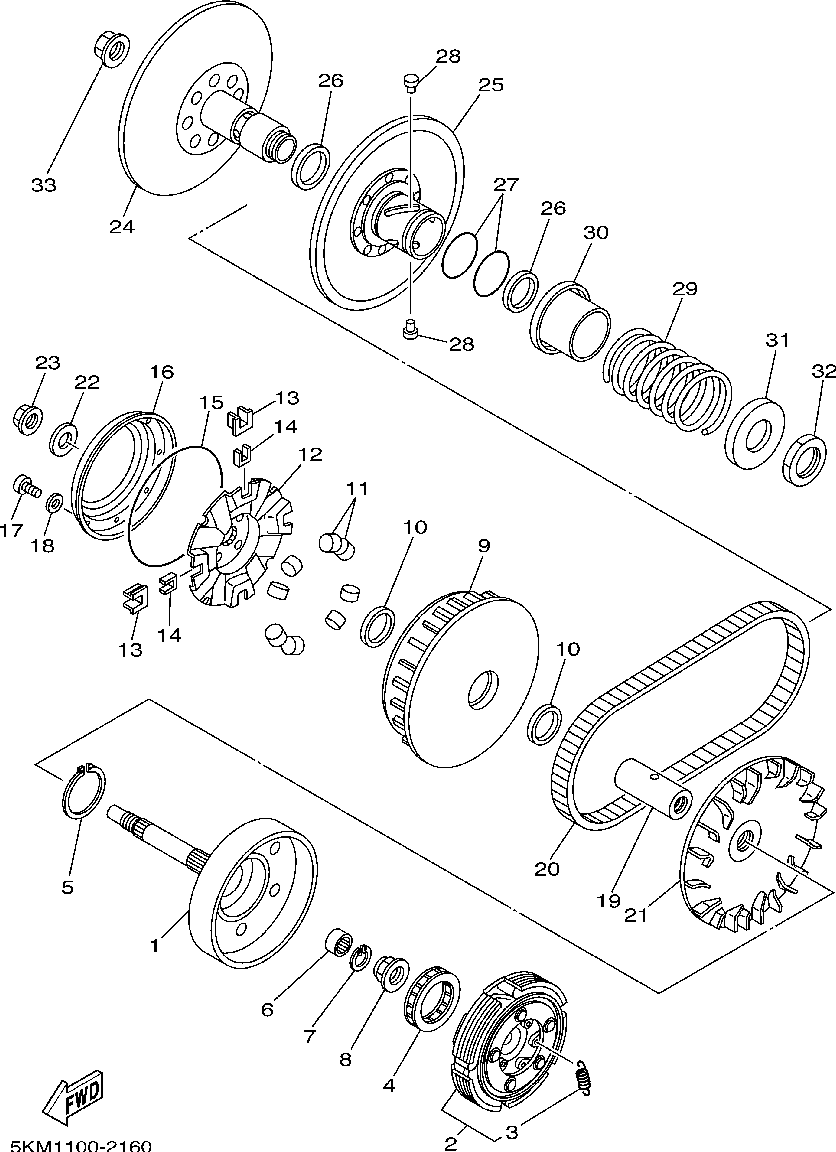

Сцепление

Yamaha Grizzly 660 YFM660FP
Yamaha
#oem кодцена
1
5KM-16611-10-00
Clutch Housing Comp. (usa)
2
5KM-16620-00-00
Clutch Carrier Assy (usa)
3
5KM-16626-00-00
Spring, Clutch Weigh (usa)
4
4SH-16664-00-00
Clutch, One Way (usa)
5
93410-46079-00
Circlip (usa)
6
93315-21813-00
Bearing, Cyl.#15 (usa)
7
93450-24062-00
Circlip (usa)
8
90179-22005-00
Nut (usa)
9
5KM-17620-00-00
Primary Sliding Shea (usa)
10
93101-35001-00
Oil Seal (usa)
11
5KM-17632-00-00
Weight (usa)
12
5KM-17623-00-00
Cam (usa)
13
4WV-17653-00-00
Slider (usa)
14
4WV-17654-01-00
Spacer 1 (usa)
15
93211-594A4-00
O-ring (usa)
16
4WV-17639-10-00
Stopper (usa)
17
98517-04012-00
Screw, Panhead (usa)
18
90201-047R9-00
Washer, Plate (usa)
19
5KM-17645-00-00
Collar (usa)
20
5KM-17641-01-00
V-belt (usa)
21
5KM-17611-00-00
Sheave, Primary Fixe (usa)
22
90201-190T7-00
Washer, Plate (usa)
23
90179-16001-00
Nut (usa)
24
4WV-17660-10-00
Sec. Fixed Sheave (usa)
25
4WV-17670-00-00
Sec. Sliding Sheave (usa)
26
93104-41119-00
Oil Seal (usa)
27
93210-44545-00
O-ring (usa)
28
4CW-17664-00-00
Pin, Guide (usa)
29
90501-65001-00
Spring, Compression (usa)
30
4WV-17684-00-00
Seat, Sec. Spring (usa)
31
4WV-17644-00-00
Seat, Spring (usa)
32
90170-36279-00
Nut, Hexagon (usa)
33
90179-16001-00
Nut (usa)
