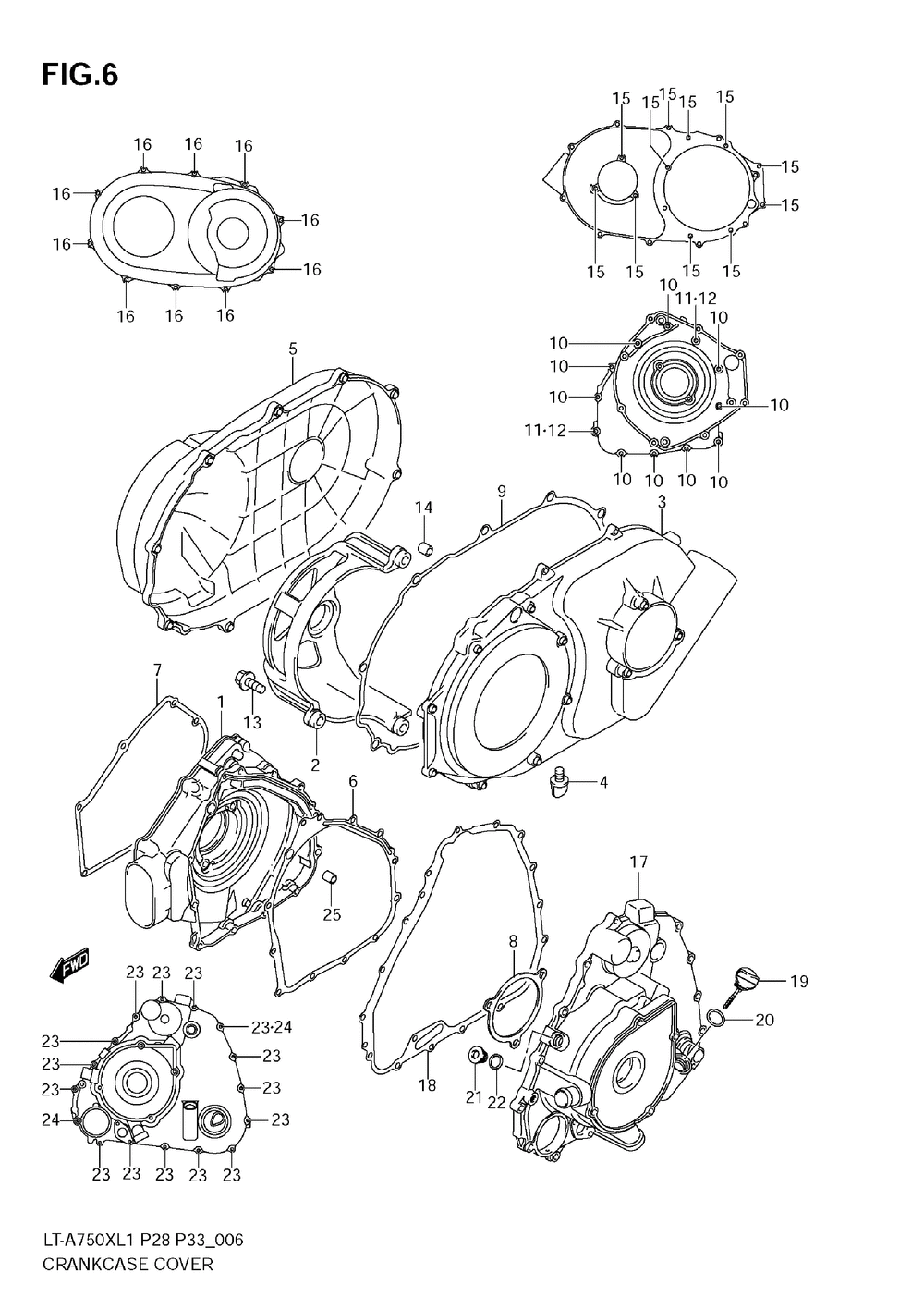

Боковые крышки

Suzuki LT-A750X,Z KingQuad 750AXi
Suzuki
#oem кодцена
1
11341-31G00
Крышка сцепления
2
11342-31G00
Housing, V-belt
3
11370-31G00
Cover Comp, V-be
4
11375-31G00
Plug, Water Drai
5
11380-31G00
Cover Comp, V-be
6
11482-31G00
Gasket, Clutch C
7
11484-31G00
Gasket, V-belt C ( Front )
8
11485-31G00
Gasket, V-belt C ( Rear )
9
11486-31G00
Gasket, V-belt C
10
01547-0625B
Bolt (cluch Cover)
11
01547-0635B
Bolt (v-belt Bearing Housing )
12
04211-11169
Pin 11x16 (cluch Cover)
13
01547-0635B
Bolt (v-belt Bearing Housing )
14
04211-09149
Pin 9x14 (v-belt Bearing Housing )
15
01547-0625B
Bolt (v-belt Inner Cover)
16
01547-0625B
Bolt (v-belt Outer Cover)
17
11350-31G01
Крышка магнето
18
11483-31G00
Gasket, Magneto
19
11971-09F50
Указатель уровня масла
20
09280-17003
O-ring, Oil Fil (oil Gauge)
21
09248-14012
Plug, Cyl Head (tdc Check)
22
09168-14014
Gasket, 14x18x1. (tdc Plug)
23
01547-0625B
Bolt (magneto Cover)
24
01547-0635B
Bolt (magneto Cover)
25
04211-11169
Pin 11x16 (magneto Cover)
