Side cover (vzr1800 l2 e33) Оригинальные запчасти для мотоциклов Suzuki VZR1800,Z Boulevard M109R (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

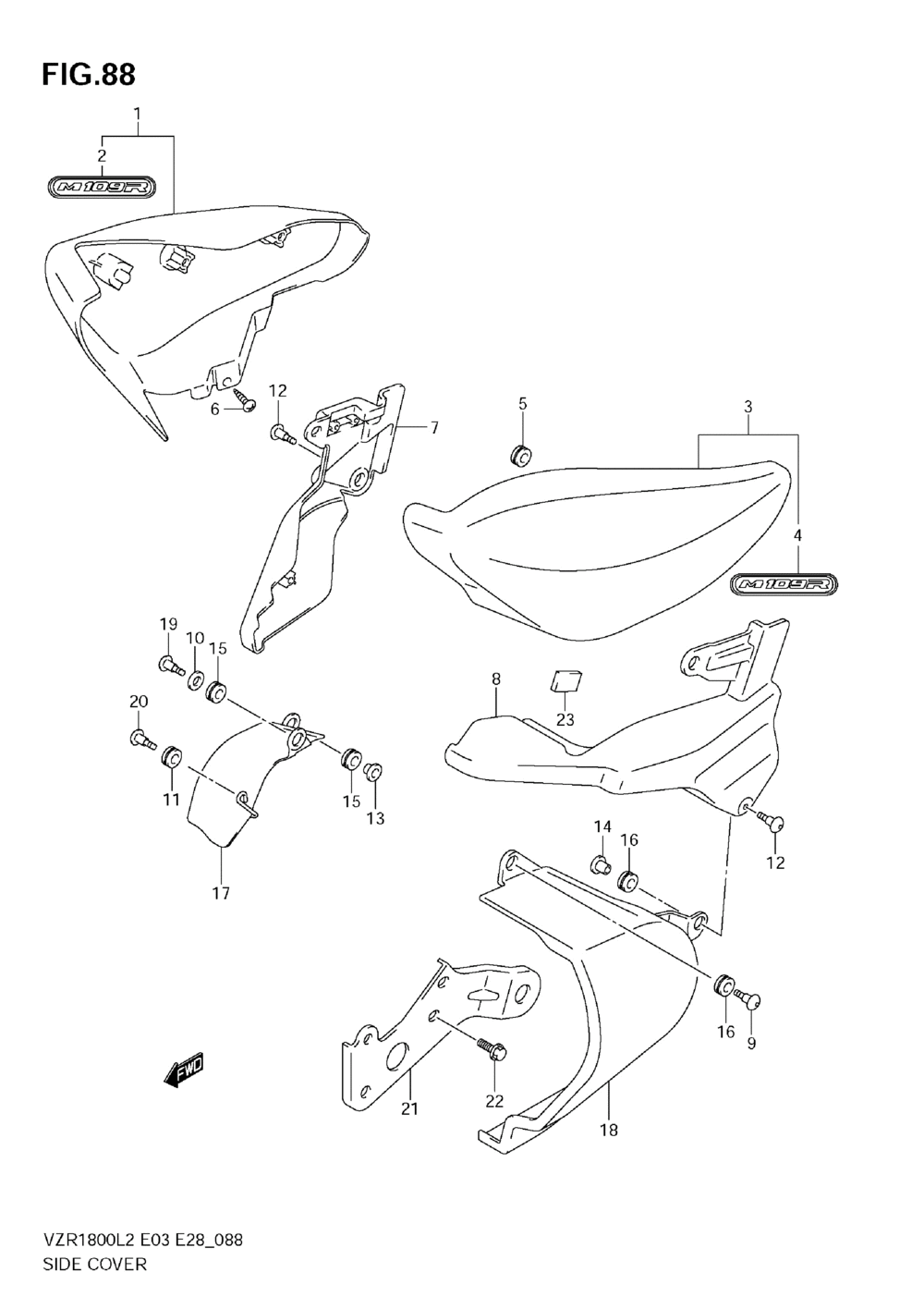

Side cover (vzr1800 l2 e33)

Suzuki VZR1800,Z Boulevard M109R

Side cover (vzr1800 l2 e33)

#

oem код

название

цена

1

47110-48G00-YVB

Cover, Side, R Bl

Cover, Side, R Bl

2

Emblem, "m109r"

Emblem, "m109r"

3

47210-48G00-YVB

Cover, Side Lh B

Cover, Side Lh B

4

Emblem, "m109r"

Emblem, "m109r"

5

Cushion Frame C

Cushion Frame C

6

Винт

Винт

7

Cover, Side Lowe

Cover, Side Lowe

8

Cover, Side Lowe

Cover, Side Lowe

9

Screw (lh)

Screw (lh)

10

Washer, 10.5x20x (rh)

Washer, 10.5x20x (rh)

11

Cushion (rh)

Cushion (rh)

12

Винт

Винт

13

Spacer, 6.5x10x1 (rh)

Spacer, 6.5x10x1 (rh)

14

Washer (lh)

Washer (lh)

15

Cushion Fuel Ta (rh)

Cushion Fuel Ta (rh)

16

Cushion (lh)

Cushion (lh)

17

Cover Comp, Lowe

Cover Comp, Lowe

18

Cover, Lower L

Cover, Lower L

19

Screw (rh)

Screw (rh)

20

Screw (rh)

Screw (rh)

21

Bracket Comp, Lo

Bracket Comp, Lo

22

Болт

Болт

23

Cushion, Frame C

Cushion, Frame C
