Обтекатель рамы Оригинальные запчасти для мотоциклов Suzuki GSX-R600 (2011)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

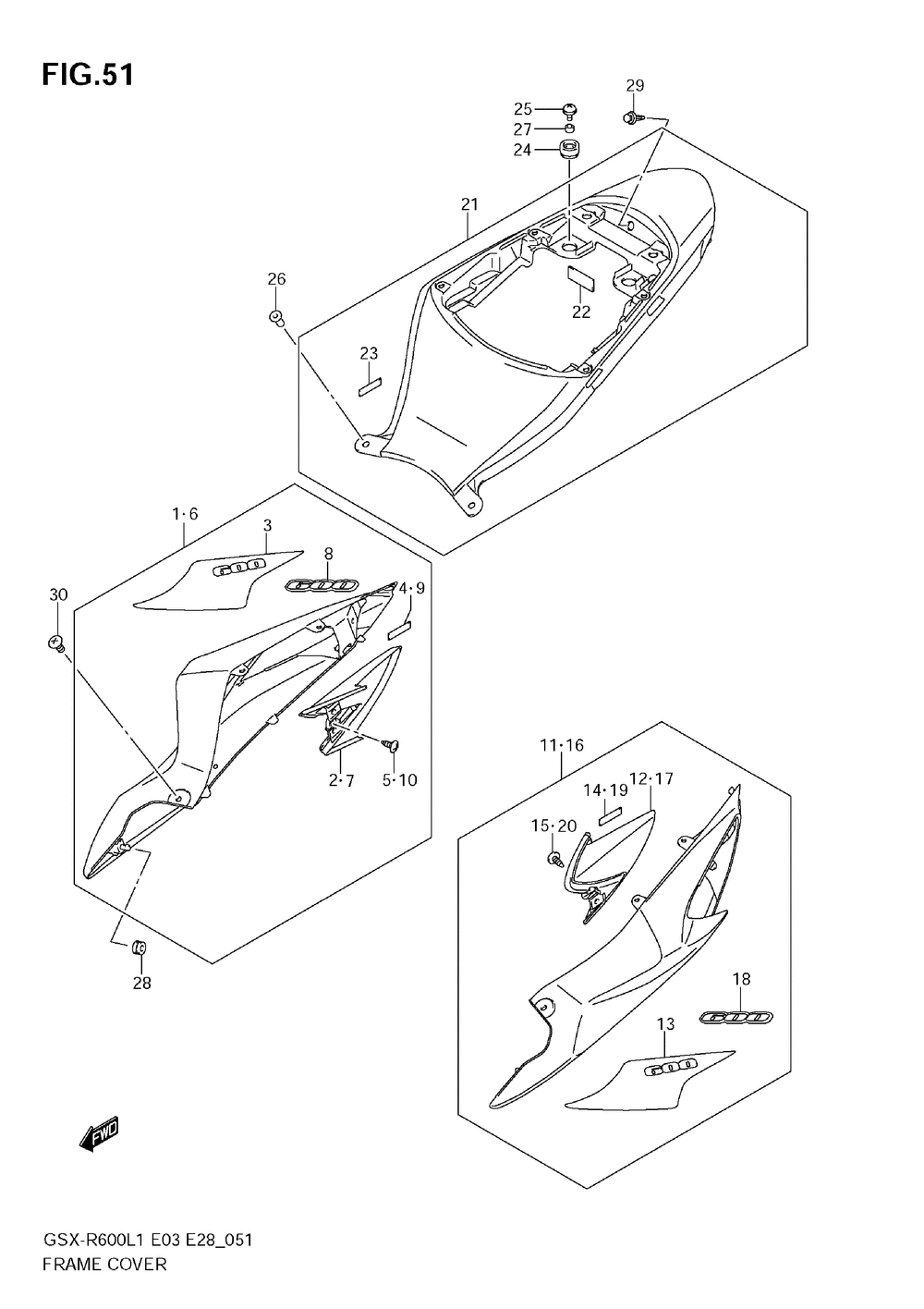

Обтекатель рамы

Suzuki GSX-R600

Обтекатель рамы

#

oem код

название

цена

1

47100-14J00-YBD

Cover Assy, Fram (for Glr)

Cover Assy, Fram (for Glr)

2

Cover, Frame Rea (for Glr)

Cover, Frame Rea (for Glr)

3

68135-14J00-JSB

Tape, Frame Cove (for Glr)

Tape, Frame Cove (for Glr)

4

Tape, Seat Tail (for Glr)

Tape, Seat Tail (for Glr)

5

Screw (for Glr)

Screw (for Glr)

7

Cover, Frame Rea (for Jdt, Yvb)

Cover, Frame Rea (for Jdt, Yvb)

9

Tape, Seat Tail (for Jdt, Yvb)

Tape, Seat Tail (for Jdt, Yvb)

10

Screw (for Jdt, Yvb)

Screw (for Jdt, Yvb)

11

47200-14J00-YBD

Cover Assy, Fram (for Glr)

Cover Assy, Fram (for Glr)

12

Cover, Frame Rea (for Glr)

Cover, Frame Rea (for Glr)

13

68145-14J00-JSB

Tape, Frame Cove (for Glr)

Tape, Frame Cove (for Glr)

14

Tape, Seat Tail (for Glr)

Tape, Seat Tail (for Glr)

15

Screw (for Glr)

Screw (for Glr)

17

Cover, Frame Rea (for Jdt, Yvb)

Cover, Frame Rea (for Jdt, Yvb)

19

Tape, Seat Tail (for Jdt, Yvb)

Tape, Seat Tail (for Jdt, Yvb)

20

Screw (for Jdt, Yvb)

Screw (for Jdt, Yvb)

22

Cushion, Foot Bo

Cushion, Foot Bo

23

Tape, Seat Tail

Tape, Seat Tail

24

Cushion, Frame C

Cushion, Frame C

25

Screw. 6 X 16

Screw. 6 X 16

26

Гайка

Гайка

27

Spacer, 6.5x10x7

Spacer, 6.5x10x7

28

Подушка

Подушка

29

09409-06314-5PK

Clip(black)

Clip(black)

30

Screw ( : Jdt=ykv(black), Ypa(white) )

Screw ( : Jdt=ykv(black), Ypa(white) )

6-1

47100-14J10-YPA

Cover Assy, Fram (for Jdt)

Cover Assy, Fram (for Jdt)

6-2

47100-14J10-YVB

Cover Assy, Fram (for Yvb)

Cover Assy, Fram (for Yvb)

8-1

68131-14J00-JSA

Emblem, "600" (for Ypa)

Emblem, "600" (for Ypa)

16-1

47200-14J10-YPA

Cover Assy, Fram (for Jdt)

Cover Assy, Fram (for Jdt)

16-2

47200-14J10-YVB

Cover Assy, Fram (for Yvb)

Cover Assy, Fram (for Yvb)

18-1

68131-14J00-JSA

Emblem, "600" (for Ypa)

Emblem, "600" (for Ypa)

21-1

Cover Assy, Fram (for Jdt)

Cover Assy, Fram (for Jdt)

21-2

Cover Assy, Fram (for Glr)

Cover Assy, Fram (for Glr)
