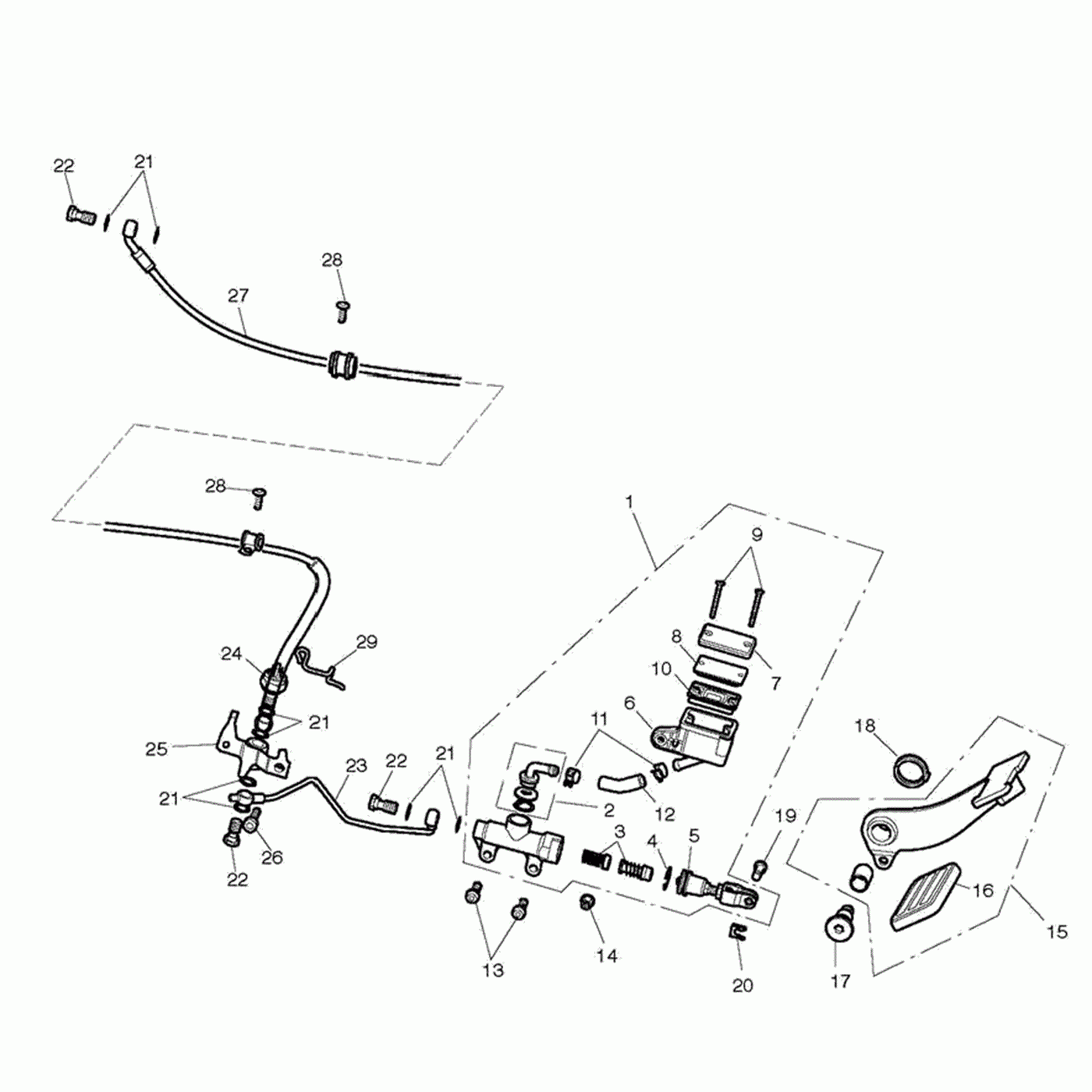

Задний цилиндр и педаль тормоза

Triumph Rocket III Touring
Triumph
#oem кодцена
1
T2021990
Master Cylinder Assy, Rear
2
T2025402
Connector Set
3
T2020031
Piston Set, Rear M'cylinder
4
T2020472
Circlip, M'cylinder, Rear
5
T2020489
Rod Assy
6
T2022115
Reservoir Body, M/cyl, Rear
7
T2022116
Reservoir Cap, M/cyl, Rear
8
T2022117
Reservoir Seal, M/cyl, Rear
9
T2022118
Reservoir Screw, M/cyl, Rear
10
T2022119
Reservoir Insert, M/cyl, Rear
11
T2023188
Зажим
12
T2022125
Hose, Reservoir, M/cyl, Rear
13
T3050321
Screw, Cap/hd, M8x1.25x20, Slv
13
T3050142
Screw, Cap/hd, M8x1.25x20, Ss
14
T3350003
Flanged Lock Nut, M6
14
T3350012
Locknut M6
15
T2023453
Brake Pedal Assy
16
T2023455
Rubber, Brake Pedal
17
T3331650
Bolt, Shouldered, M10x1.25
18
T2025506
Spring, Brake Pedal Return
19
T3000301
Pin, Clevis 8 X 13.7
20
T3000302
Clip, 8mm Clevis Pin
20
T3000211
Clip, 8mm Clevis Pin
21
T3550229
Washer, 15.2 X 10 X 1.0, Plated
22
T3250125
Bolt, Banjo, M10x1.25x21
23
T2023138
Brake Line Assy, Hard
24
T2023120
Switch, Rear Brake
25
T2023139
Adaptor, Inline, Brake, Switch
26
T3050323
Screw, Cap/hd, M8x1.25x30, Slv
27
T2023143
Brake Line Assy, Flexi
28
T3330334
Screw, Tx, Pan/hd, M6x1.0x16, Slv
29
T2020269
Направляющая тормозного шланга
