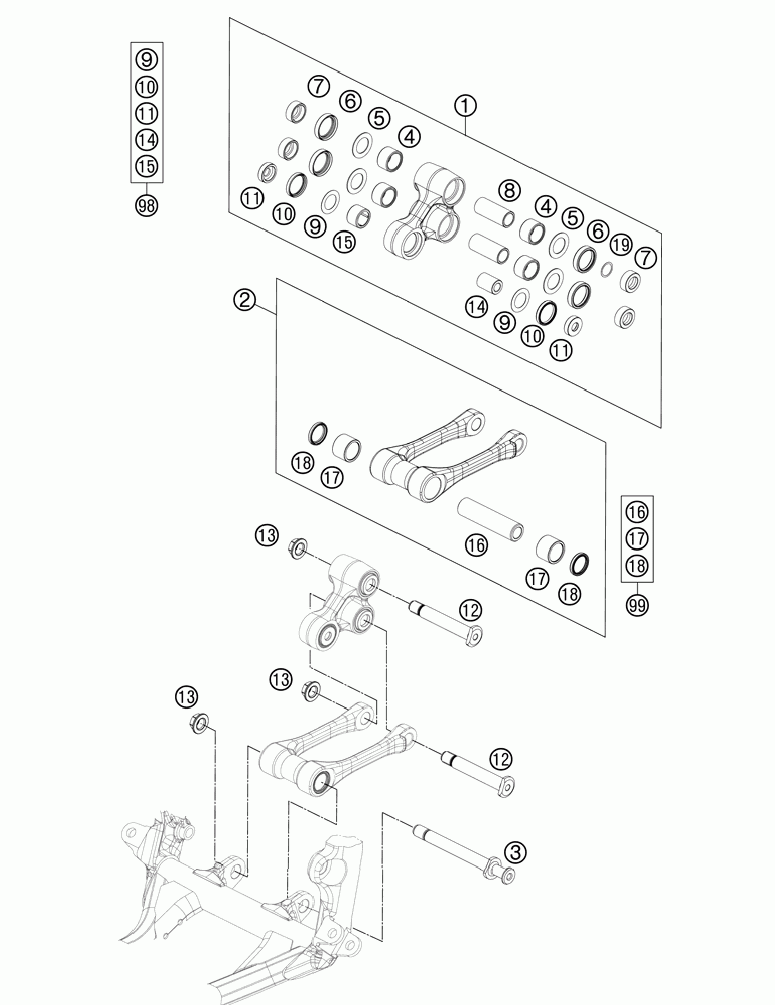

Соединение рычагов

KTM 150 SX CHASSIS
KTM
#oem кодцена
1
7720408014401
Triangle Lever Cpl. Sx 2013
2
7720408304401
Pull Rod Cpl.
3
77204084000
Pull Rod Anchor Bolt
4
54603097000
Needle Bush Hk 2016
5
59033080000
Shim 20x32x1
6
0760253270
Shaft Seal Ring 25x32x7
7
77204080130
Bucket Shaft Seal Ring 25x11
8
54603081000
Bushing Sleeve 15 X 20 X 48
9
50180604
Shim D29, 75 X D19 X T0, 4 08
10
0760243050
Shaft Seal Ring 24x30x5
11
77204080020
Bucket For Shaft Seal Ring
12
77204085100
Bolt For Cantilever M14
13
77204087000
Hex Nut M14x1.5 Sw17
14
77204080010
Bearing Sleeve 10x18x25, 5
15
0618182416
Needle Bush Hn1816 Rs 18/24/16
16
77204084010
Bearing Sleeve
17
0618222820
Needle Bearing Hk2220 22x28x20
18
0760222841
Shaft Seal Ring G22x28x4
19
54603090010
Steel Washer 15, 2x19x0, 1
19
54603090020
Steel Washer 15, 2x19x0, 2
19
54603090030
Steel Washer 15, 2x19x0, 3
98
77204080090
Triangle Lever Rep. Kit Front
99
77204083010
Pull Rod Rep. Kit Sx/sx-f
12
77204085000
Bolt For Cantilever M14
