Карбюратор Оригинальные запчасти для мотоциклов KTM 200 XCW ENGINE (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

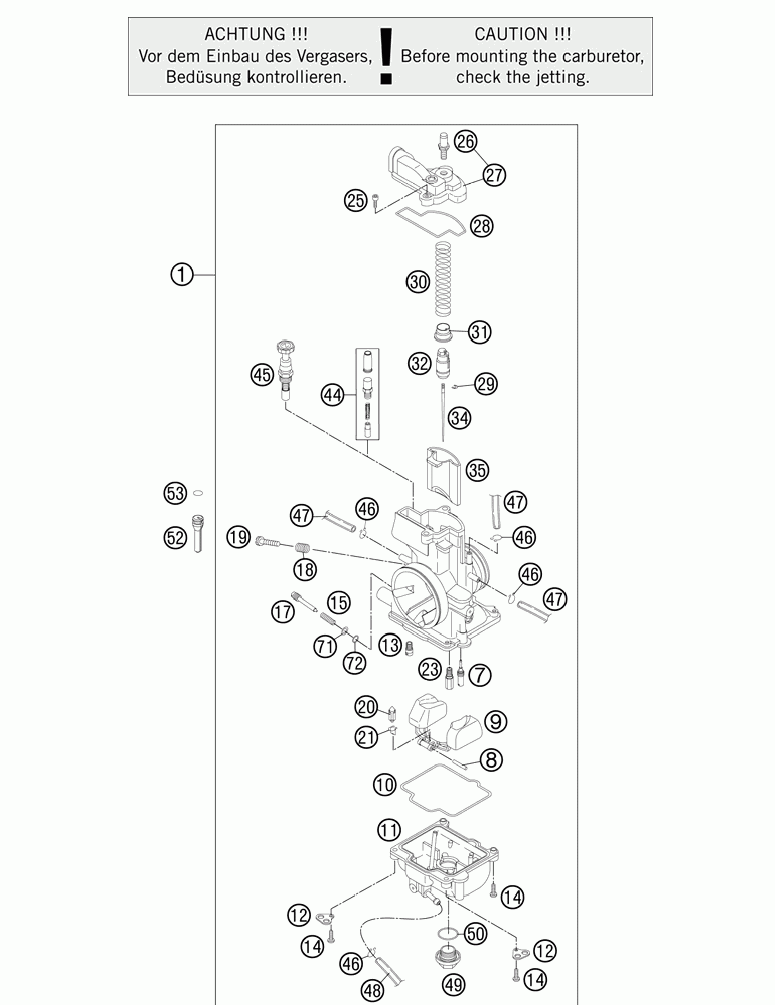

Карбюратор

KTM 200 XCW ENGINE

Карбюратор

#

oem код

название

цена

1

Carb. Keih. Pwk 36s Ag Fk20 08

Carb. Keih. Pwk 36s Ag Fk20 08

7

Idle Jet 35 Keihin

Idle Jet 35 Keihin

7

Idle Jet 38 Keihin

Idle Jet 38 Keihin

7

Idle Jet 40 Keihin

Idle Jet 40 Keihin

7

Idle Jet 42 Keihin

Idle Jet 42 Keihin

7

Idle Jet 45 Keihin

Idle Jet 45 Keihin

7

Idle Jet 48 Keihin

Idle Jet 48 Keihin

7

Idle Jet 50 Keihin

Idle Jet 50 Keihin

7

Idle Jet Size 35x35 Keihin

Idle Jet Size 35x35 Keihin

8

Arm Pin Float

Arm Pin Float

9

Поплавок

Поплавок

10

Прокладка поплавковой камеры

Прокладка поплавковой камеры

11

Float Chamber Pwk38-s Ag

Float Chamber Pwk38-s Ag

12

Retaining Plate For Bleeder

Retaining Plate For Bleeder

13

Starter Jet 50 Keihin

Starter Jet 50 Keihin

13

Starter Jet 85 Keihin

Starter Jet 85 Keihin

14

Hh Collar Screw M 4x16 Ws=6

Hh Collar Screw M 4x16 Ws=6

15

Spring For Adjustment Screw

Spring For Adjustment Screw

17

Stop Screw Cpl.

Stop Screw Cpl.

18

Пружина

Пружина

19

Adjustment Screw M 5

Adjustment Screw M 5

20

Игла поплавка

Игла поплавка

21

Зажим

Зажим

23

Main Jet Gr 100

Main Jet Gr 100

23

Main Jet 150 Keihin

Main Jet 150 Keihin

23

Main Jet 152 Keihin

Main Jet 152 Keihin

23

Main Jet 155 Keihin

Main Jet 155 Keihin

23

Main Jet 158 Keihin

Main Jet 158 Keihin

23

Main Jet 160 Keihin

Main Jet 160 Keihin

23

Main Jet 162 Keihin

Main Jet 162 Keihin

23

Main Jet 165 Keihin

Main Jet 165 Keihin

23

Main Jet 168 Keihin

Main Jet 168 Keihin

23

Main Jet 170 Keihin

Main Jet 170 Keihin

23

Main Jet 172 Keihin

Main Jet 172 Keihin

23

Main Jet 175 Keihin

Main Jet 175 Keihin

25

Винт M4x12

Винт M4x12

26

Throttle Calbe Holder M6x0, 75

Throttle Calbe Holder M6x0, 75

27

Carburetor Cover Pwk36-s Ag

Carburetor Cover Pwk36-s Ag

28

Прокладка крышки карбюратора

Прокладка крышки карбюратора

29

Clip For Jet Needle

Clip For Jet Needle

30

Sliding Spring

Sliding Spring

31

Spring Cap

Spring Cap

32

Ниппель

Ниппель

34

Jet Needle Keihin N1ee 06

Jet Needle Keihin N1ee 06

34

Jet Needle Keihin N1ef 06

Jet Needle Keihin N1ef 06

34

Jet Needle Keihin N1eg 06

Jet Needle Keihin N1eg 06

34

Jet Needle Keihin N1eh 06

Jet Needle Keihin N1eh 06

34

Jet Needle Keihin N1ei 07

Jet Needle Keihin N1ei 07

34

Jet Needle Keihin N1ej 07

Jet Needle Keihin N1ej 07

34

Jet Needle Keihin N1ek 07

Jet Needle Keihin N1ek 07

35

Throttle Valve 7 For 38 Pj '00

Throttle Valve 7 For 38 Pj '00

45

Starter Piston Cpl.

Starter Piston Cpl.

46

Clamp 6 Mm

Clamp 6 Mm

47

Pvc-hose 4x6mm

Pvc-hose 4x6mm

48

Pvc-hose 3x5mm

Pvc-hose 3x5mm

49

Plug M 18x1

Plug M 18x1

50

O-ring 18, 00x2, 30 Nbr 70

O-ring 18, 00x2, 30 Nbr 70

53

O-ring 6, 00x1, 78

O-ring 6, 00x1, 78

71

Washer Adjusting Screw

Washer Adjusting Screw

72

Кольцо

Кольцо

1

Carb. Keih. Pwk 36s Ag Bm9 13

Carb. Keih. Pwk 36s Ag Bm9 13
