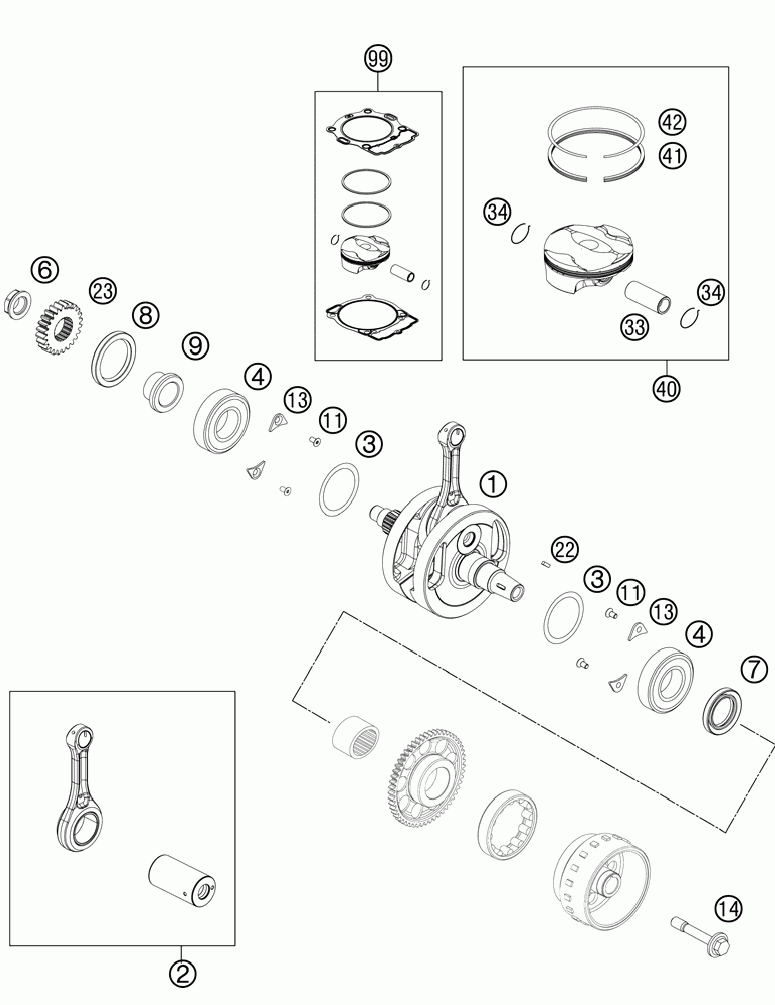

Коленвал и поршень

KTM 250 XCF ENGINE
KTM
#oem кодцена
1
77730018100
Crankshaft Cpl.
2
77730015144
Connecting Rod Repair Set
3
56030081000
Thrust Washer 30, 5x45x0, 10
3
56030081100
Thrust Washer 30, 7x47x0, 15
3
56030081200
Thrust Washer 30, 5x45x0, 30
4
77330082200
Bearing Nj 206 Ecp/hn3c4hva624
6
77230029000
Nut Primary Wheel
7
0760304772
Sh.seal Ring 30x47x7 Bsl Viton
8
0760405560
Shaft Seal Ring A40x55x6 Viton
9
77232022000
Spacer Bushing Primary Gear
11
0019050106
Int. Torx Flat Head M5x10 10.9
13
75030085000
Retaining Plate F. Cs Bearing
14
77339010100
Flywheel Screw
22
0888030037
Woodruff Key Din6888-3x3, 7
23
77232023024
Primary Gear 24t.
33
77230233100
Piston Pin 350
34
77230274000
СТОПОРНОЕ КОЛЬЦО
40
77730007000 I
Piston Cpl. 250
40
77730007000 II
Piston Cpl. 250
41
77730032000
Scraper Ring 250
42
77730030000
Compressionring 250
11
0019050106S
Int. Torx Flat Head M5x10 10.9
99
00050000222
Piston Kit Gr.i 250 Sx-f13-14
99
00050000223
Piston Kit Gr.ii 250 Sx-f 13
