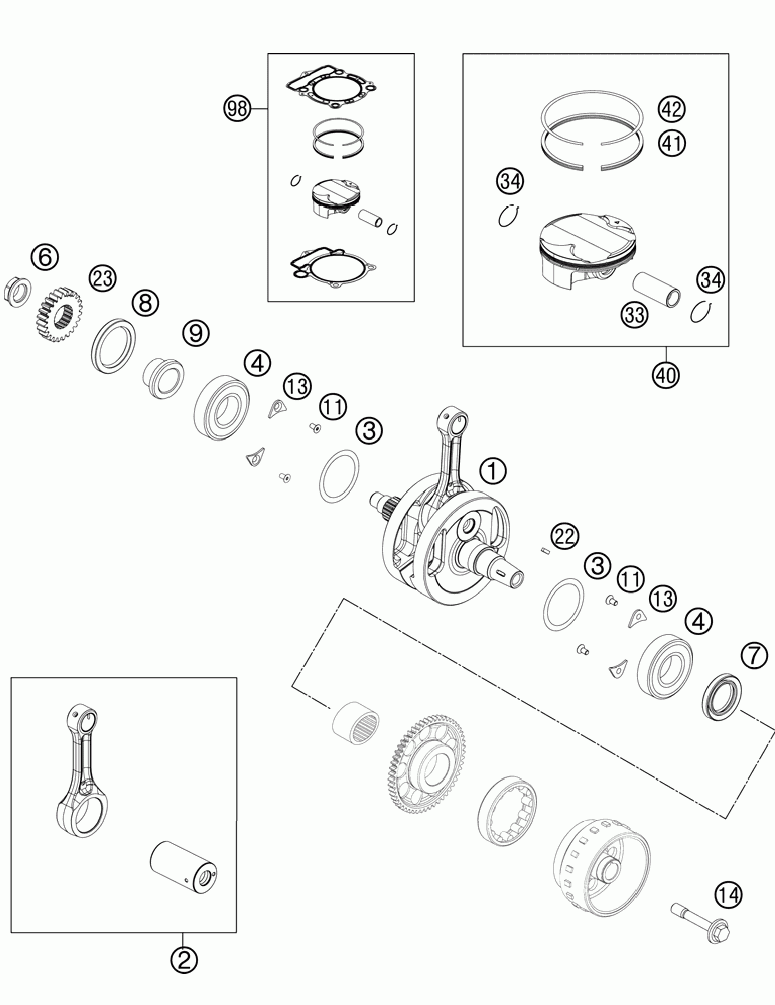

Коленвал и поршень

KTM 350 SXF ENGINE
KTM
#oem кодцена
1
77830018100
Crankshaft Cpl.
2
77830015144
Connecting Rod Repair Set
3
56030081000
Thrust Washer 30, 5x45x0, 10
3
56030081100
Thrust Washer 30, 7x47x0, 15
3
56030081200
Thrust Washer 30, 5x45x0, 30
4
77330082200
Bearing Nj 206 Ecp/hn3c4hva624
6
77230029000
Nut Primary Wheel
7
0760304772
Sh.seal Ring 30x47x7 Bsl Viton
8
0760405560
Shaft Seal Ring A40x55x6 Viton
9
77232022000
Spacer Bushing Primary Gear
11
0019050106
Int. Torx Flat Head M5x10 10.9
13
75030085000
Retaining Plate F. Cs Bearing
14
77339010100
Flywheel Screw
22
0888030037
Woodruff Key Din6888-3x3, 7
23
77232023024
Primary Gear 24t.
33
77230233100
Piston Pin 350
34
77230274000
СТОПОРНОЕ КОЛЬЦО
40
77230207000 I
Piston Cpl. 350 I
40
77230207000 II
Piston Cpl. 350 Ii
41
77230032100
Scraper Ring 350
42
77230030000
Compressionring 350
98
00050000221
Piston Kit Gr.ii 350 Sx-f 13
11
0019050106S
Int. Torx Flat Head M5x10 10.9
98
00050000220
Piston Kit Gr.i 350 Sx-f 13-14
