Амортизатор

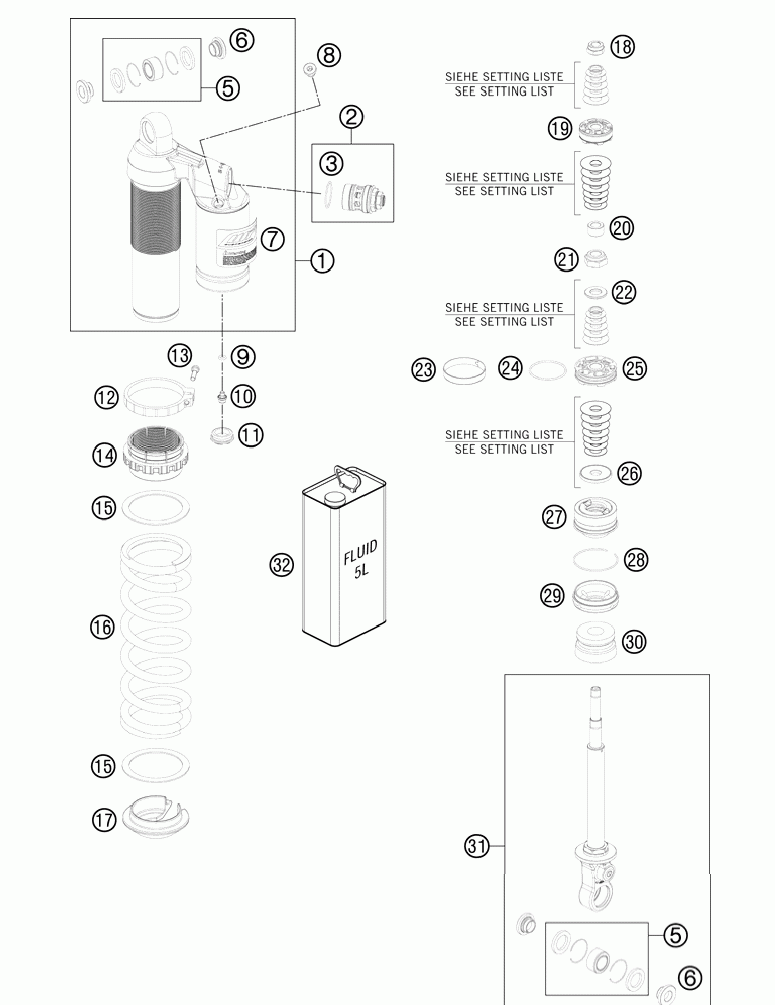

KTM 85 SX CHASSIS

Амортизатор

#

oem код

название

цена

2

Dcc-compr.damp.control Cpl. 09

Dcc-compr.damp.control Cpl. 09

3

O-ring 27x1, 5 Viton

O-ring 27x1, 5 Viton

5

Rep. Kit Bear./seal Up. 07

Rep. Kit Bear./seal Up. 07

6

Adaptor Bush Kgw 12x24

Adaptor Bush Kgw 12x24

7

Sticker Wp Monoshock

Sticker Wp Monoshock

8

Bleed Plug R 1/8

Bleed Plug R 1/8

9

O-ring Nbr 5, 28x1, 78

O-ring Nbr 5, 28x1, 78

10

Screw Plug M5x6

Screw Plug M5x6

11

Rubber Cap ""do Not Open""

Rubber Cap ""do Not Open""

13

Ah Screw Din0912-m 5x20

Ah Screw Din0912-m 5x20

15

Interm.ring D=58

Interm.ring D=58

16

Spring 215 30 N/mm D=9, 00 Oran

Spring 215 30 N/mm D=9, 00 Oran

16

Spring 215 35 N/mm D=9, 25 Oran

Spring 215 35 N/mm D=9, 25 Oran

16

Spring 215 40 N/mm D=9, 50 Org

Spring 215 40 N/mm D=9, 50 Org

17

Spring Washer H=15 D=28

Spring Washer H=15 D=28

18

Piston Rod Nut M10x1

Piston Rod Nut M10x1

19

Piston + Piston Spring

Piston + Piston Spring

21

Piston Rod Nut

Piston Rod Nut

22

Ring 12x24x2, 5

Ring 12x24x2, 5

23

Piston Ring 8x46

Piston Ring 8x46

24

O-ring Viton 37, 82x1, 78

O-ring Viton 37, 82x1, 78

25

Piston 6+6d7

Piston 6+6d7

26

Rebound Disc H=4

Rebound Disc H=4

27

Adaptor Cpl. D=46 H=28 07

Adaptor Cpl. D=46 H=28 07

28

Circlip 49x1, 5

Circlip 49x1, 5

29

Cap D=46 H=9, 5

Cap D=46 H=9, 5

30

Bump Rubber Wp60 D=18-26

Bump Rubber Wp60 D=18-26

32

Shock Absorber Fluid 5 Lt

Shock Absorber Fluid 5 Lt

1

Monoshock Case Cpl.

Monoshock Case Cpl.

12

Tensioning Ring D64 H10

Tensioning Ring D64 H10

14

Adjusting Nut D46 Plastic

Adjusting Nut D46 Plastic

31

Monoshock Lower Part

Monoshock Lower Part
