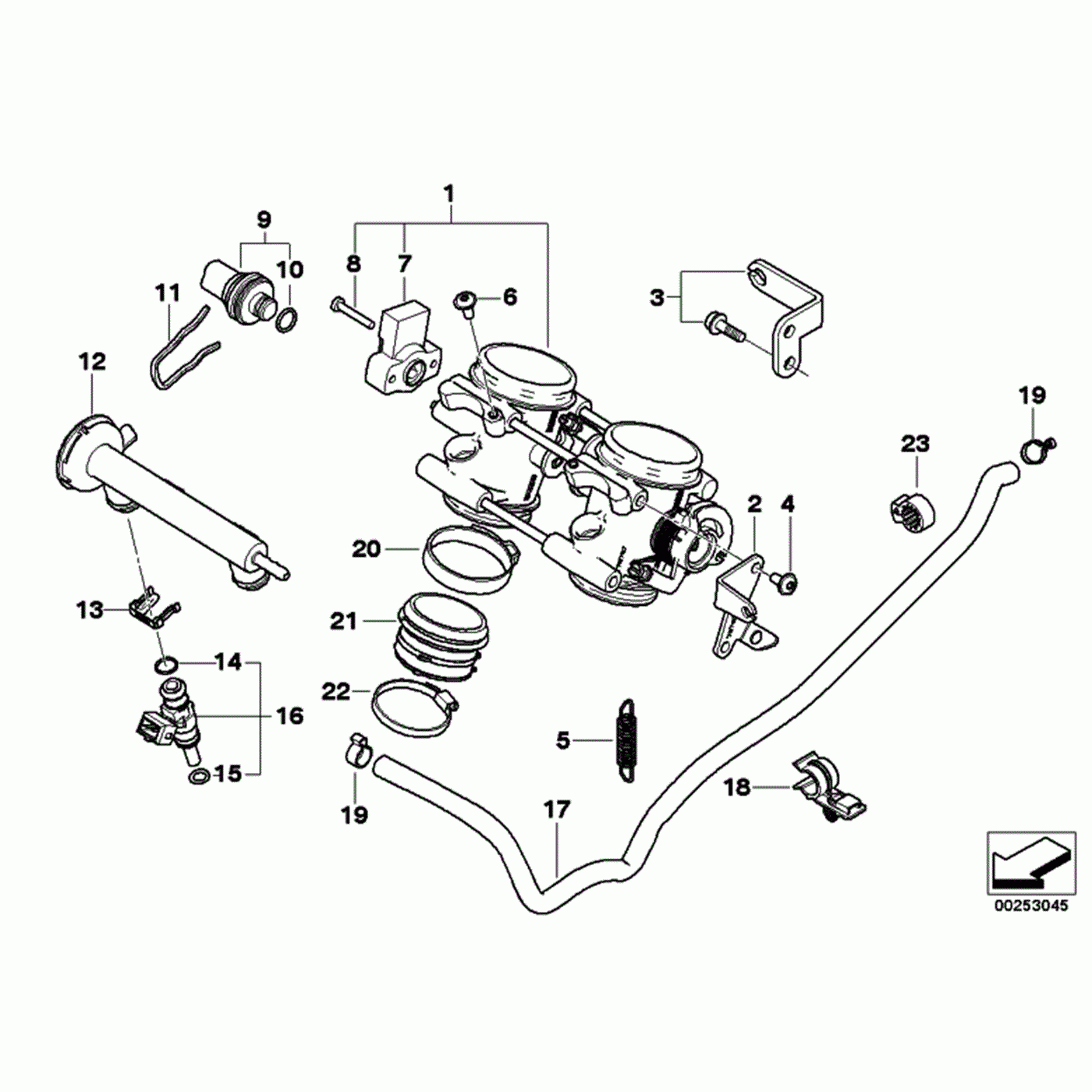

Корпус дроссельной заслонки Оригинальные запчасти для мотоциклов BMW F650GS(K72) 09+ (K72) (2011)

Корпус дроссельной заслонки

BMW F650GS(K72) 09+ (K72)

oem код

название

цена

13547717979

Throttle Housing Assy - 25kw

For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers

13547716114

Throttle Housing Assy

Not For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers

13547716113

Bracket For Accelerator Bowden Cable

13547702371

Bracket For Accelerator Bowden Cable - 25kw

For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.

13547713348

Tension Spring

For Vehicles With Power Reduction (code: X703a)

07129903323

Torx Bolt - M5x12

13547696412

Throttle Valve Switch - 4 Kohm

13547701545

Isa Screw With Washer - M4x25

13537694579

Fuel Pressure Sensor

13537688284

O-ring Pressure Sensor - 9, 25x1, 7

Clamping Spring

Injection Rail

Пружинный Зажим

O-ring - 7, 52x3, 51

O-ring - 8, 3x3

Injection Valve - Ev14

Installed Only On Secondary Injection Line

13547709426

Hose Running Meter - 6x11 (meter)

Length 550 Mm

13547711470

Cable Holder - D=11, 5

11731277848

Hose Clamp - 11, 1-13, 1

13547682115

Hose Clamp - D=58mm

11117720771

Резиновый патрубок

32131092152

Хомут крепления шланга- D=59mm

61137838241

Toothed Ring

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.

32737716115

Accelerator Cable

Only In Conjunction With

13547713348

Tension Spring

For Vehicles With Power Reduction (code: X703a)

32737700908

Accelerator Cable

Only In Conjunction With

13547702371

Bracket For Accelerator Bowden Cable - 25kw

For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers
