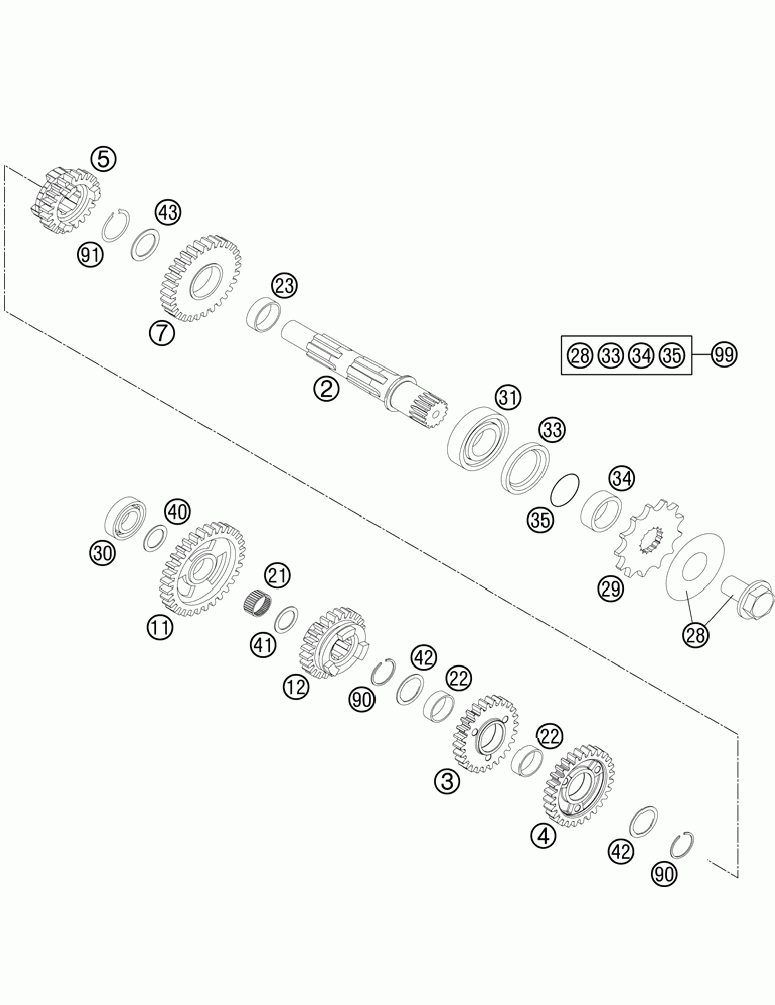

Трансмиссия 2-контрпривод

KTM 250 XCF ENGINE
KTM
#oem кодцена
2
77033010000
Counter Shaft 05
3
77033114000
Idler G. 4th 6.28-t ""4b28""
4
77033113000
Idler G. 3rd G.29-t ""3b29""
5
77033116100
Sliding G. 6th 6.22-t ""6b26""
7
77033112000
Idler G. 2nd 6. 33-t ""2b33""
11
77033111000
Idler G. 1st G. 33-t ""1b33""
12
77033115100
Sliding G. 5th G .23-t ""5b23""
21
50033098000
Needle Bearing K20x24x10
22
0405222611
Needle Bear.k 22x26x10 Divided
23
50333023000
Втулка шестерни 25x28x9,7 D
28
59033034044
Screw 10.9+spring Washer
29
50033029013
Front Sprocket 13-t
29
50033029014
Front Sprocket 14-t
29
50033029015
Front Sprocket 15-t
30
0625060031
Ball Bearing 6003 Tn9 C4
31
0625062054
Ball Bearing 6205 C3 Ntn
33
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
34
54633014100
Spacer Bushing 12mm
35
0770020220
O-ring 25, 12x1, 78 Nbr70
40
56033030000
Stop Disc 17, 2x30x1
41
59033080000
Shim 20x32x1
42
50333043000
Stop Disc 25, 2x32x1
43
0988253510
Thrust Wash. Din0988-25x35x1, 0
90
77033022000
Axial-circlip 25x1, 65
91
0471250120
Circlip Din0471-25x1, 2
99
00050000941
Counter Shaft Rep.kit 4 Stroke
