Кик стартер Оригинальные запчасти для мотоциклов KTM 65 SX ENGINE (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

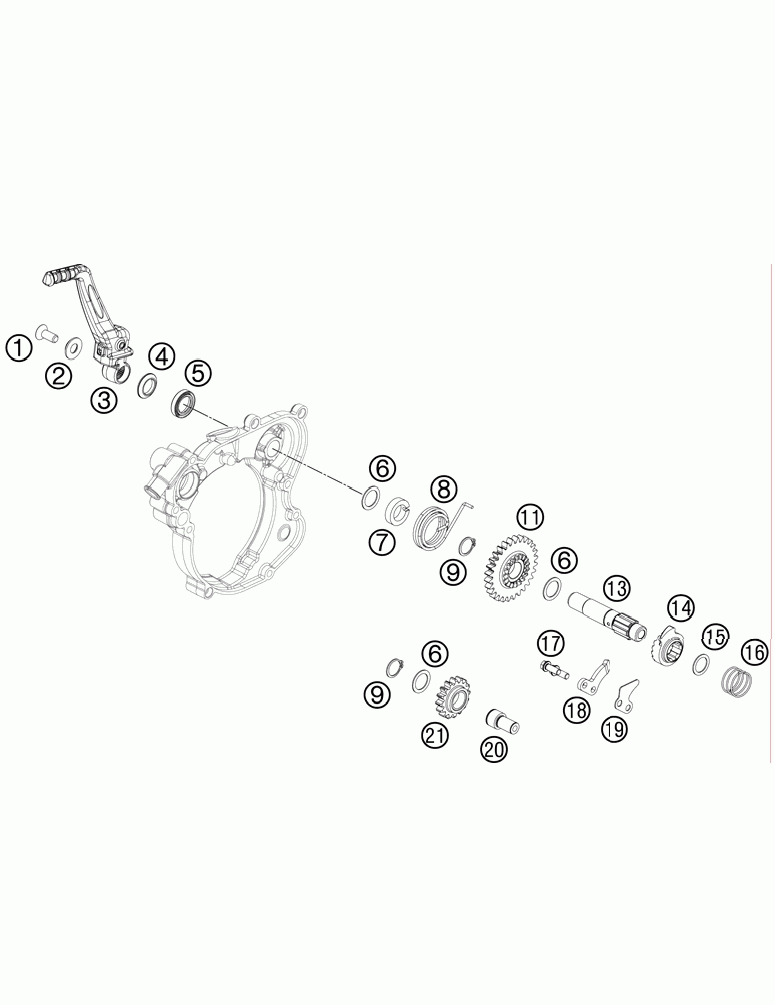

Кик стартер

KTM 65 SX ENGINE

Кик стартер

#

oem код

название

цена

1

Counter-sunk Screw Isa45 M8x20

Counter-sunk Screw Isa45 M8x20

2

Washer 8mm Galvanized

Washer 8mm Galvanized

3

Kickstarter Cpl.

Kickstarter Cpl.

4

Spacer Sleeve

Spacer Sleeve

5

Shaft Seal Ring 17x28x6b Nbr

Shaft Seal Ring 17x28x6b Nbr

6

Stop Disk 17, 2x24x1

Stop Disk 17, 2x24x1

7

Driving Hub 125/200'98

Driving Hub 125/200'98

8

Kickstarter Spring 2, 6mm '98

Kickstarter Spring 2, 6mm '98

9

Circlip Din0471-17x1

Circlip Din0471-17x1

11

Kickstart. Gear 28-t 05

Kickstart. Gear 28-t 05

13

Kickstarter Shaft 125/200'98

Kickstarter Shaft 125/200'98

14

Kickstarter Ratchet

Kickstarter Ratchet

15

Thrust Washer Din0988-16x22x1

Thrust Washer Din0988-16x22x1

16

Spring 1, 4mm '98

Spring 1, 4mm '98

17

Винт м6х16

Винт м6х16

18

Stop Met.sheet 4mm 125/200'98

Stop Met.sheet 4mm 125/200'98

19

Крышка

Крышка

20

Bearing Pin Idler Gear

Bearing Pin Idler Gear

21

Intermediate Starting Gear

Intermediate Starting Gear
