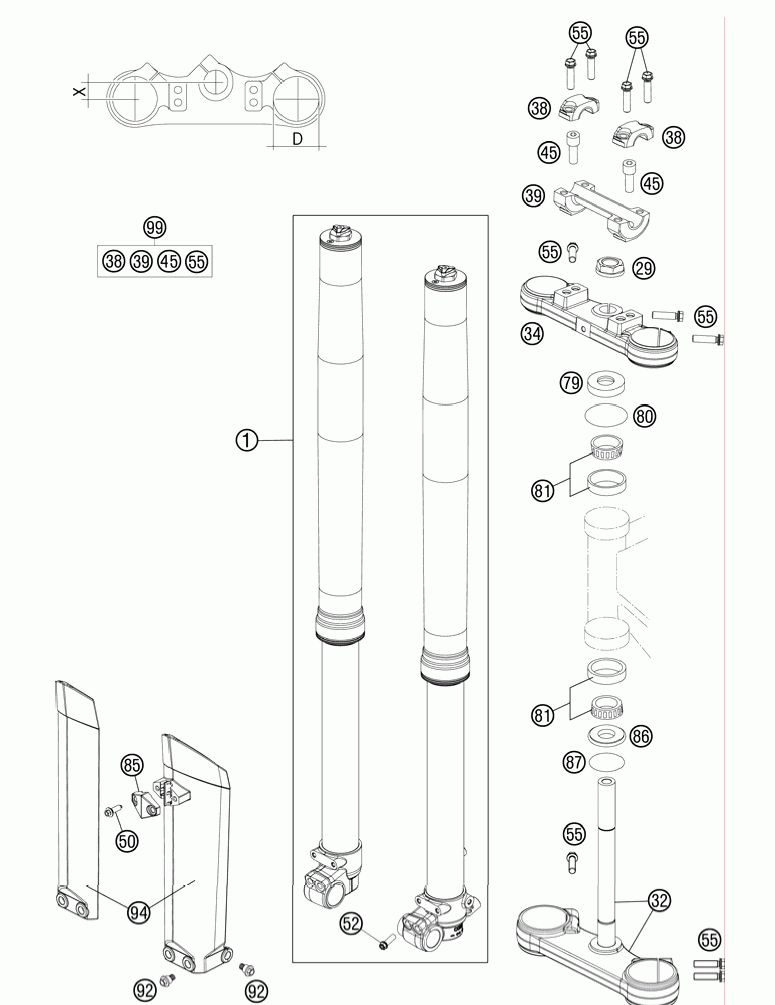

Передняя вилка

KTM 85 SX CHASSIS
KTM
#oem кодцена
1
05187L0501
Fork Wp 85/105 Sx
29
59030029000
Hh Nut M20x1, 5 Ws=27 Right
32
47001032014
Bot.triple Clamp Cpl. 85 Sx 03
34
47001034014
Top Triple Clamp 85 Sx 2003
38
50301038000
Handlebar Clamp D=22mm 2001
39
59001039000
Handlebar Support 22mm 2t 2000
45
0032100256S
Ah-collar Screw M10x25 Isa45
50
0025050166
Hh Collar Screw M5x16 Tx30
52
0025060206
Винт М6х20
55
0025080306
Hh Collar Screw M8x30 Tx40
79
49001086000
Covering Cap
80
0770021300
O-ring 40, 94x2, 62 Nbr70
81
49001081000
Tapered Roller Bearing 32004x
85
7800108500028
Clamp F. Speed. Cable D=6mm 08
86
46001086000
Protection Ring 20, 1x39x5
87
0770360030
O-ring 36, 00x3, 00 Nbr
92
59001092050
винт M6x12, 5 Вт = 8
94
4710109400028
Fork Protector Set 85sx White
99
00050000923
Handlebar Support Kit
