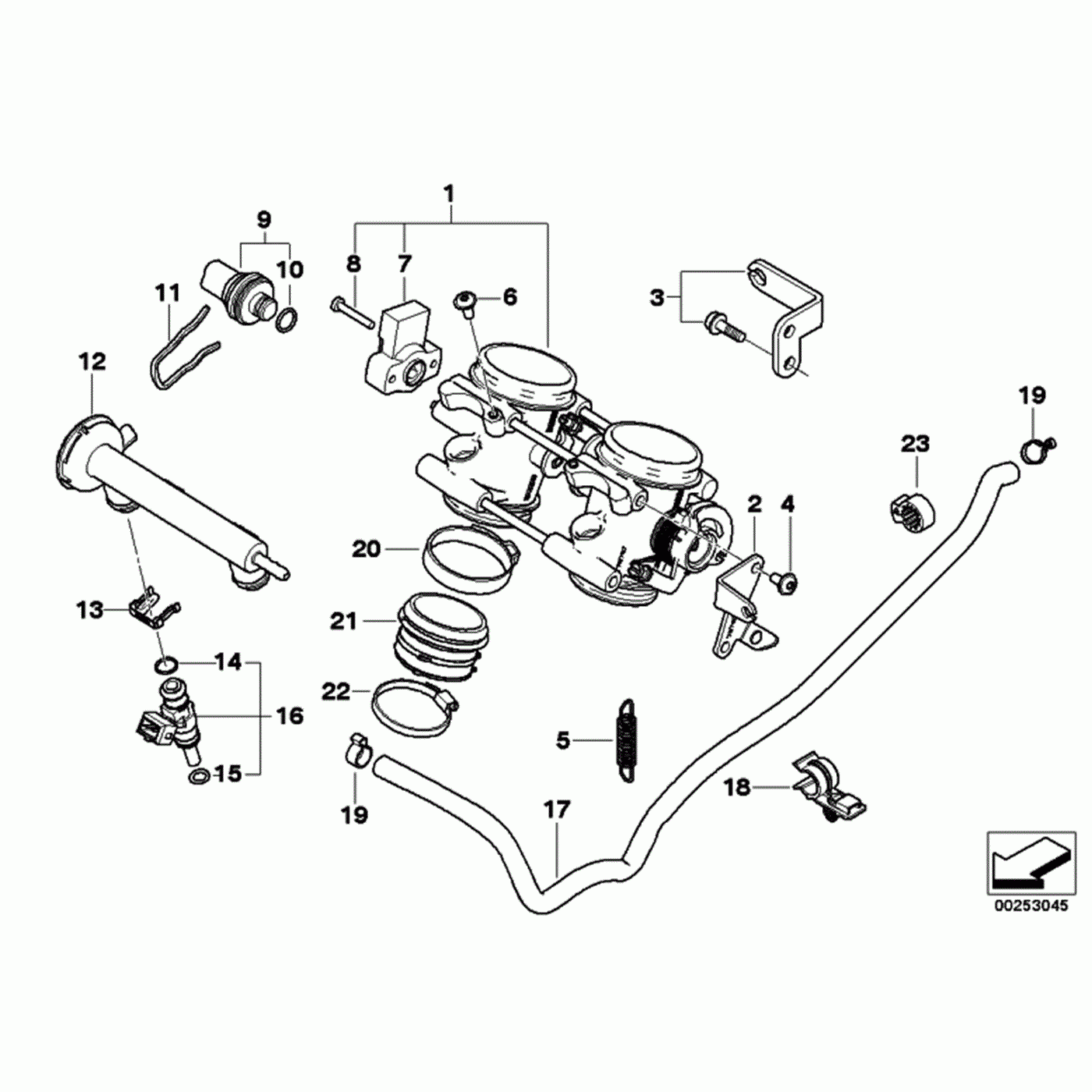

Корпус дроссельной заслонки Оригинальные запчасти для мотоциклов BMW F800R (K73) (2011)

Корпус дроссельной заслонки

BMW F800R (K73)

oem код

название

цена

13547702369

Throttle Housing Assy

Not For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers

13547722134

Bracket For Accelerator Bowden Cable

13547702371

Bracket For Accelerator Bowden Cable - 25kw

For Vehicles With Power Reduction (code: X703a) Only For Repair At The Dealers

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.

13547713348

Tension Spring

For Vehicles With Power Reduction (code: X703a)

07129903323

Torx Bolt - M5x12

13547696412

Throttle Valve Switch - 4 Kohm

13547701545

Isa Screw With Washer - M4x25

13537694579

Fuel Pressure Sensor

13537688284

O-ring Pressure Sensor - 9, 25x1, 7

Clamping Spring

Injection Rail

Пружинный Зажим

O-ring - 7, 52x3, 51

O-ring - 8, 3x3

Injection Valve - Ev14

Installed Only On Secondary Injection Line

13547722828

Fuel Hose - L=555mm

Shorten From 655 Mm To 635 Mm

11731277848

Hose Clamp - 11, 1-13, 1

13721338650

Hose Clamp - D=58mm

11117720771

Резиновый патрубок

13547655405

Torx Bolt - M5x14

Use Loctite 243 Moderate-strength Thread Lock To Secure.
