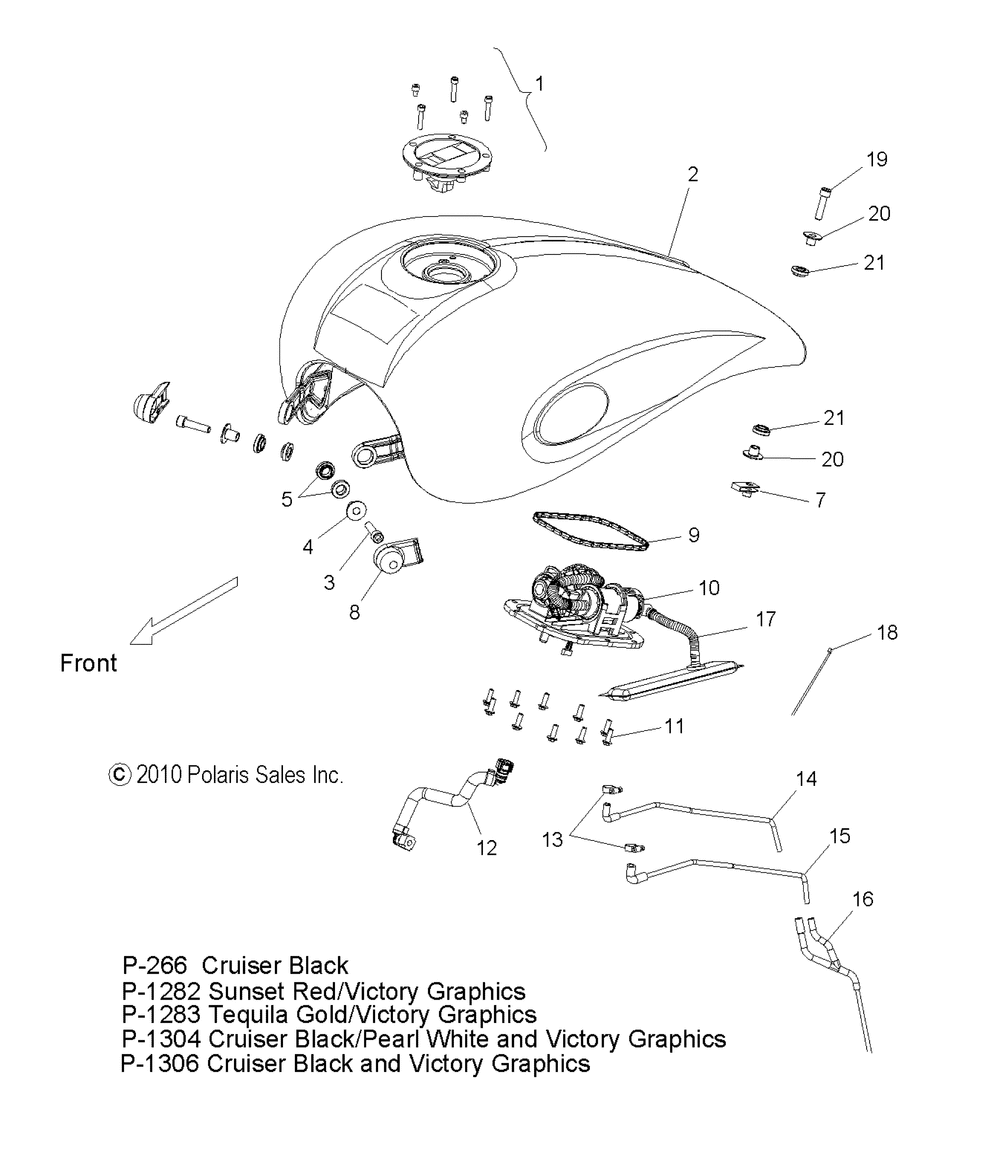

Body, fuel tank - v11xb36 all options

Victory (Polaris) V11XB36 JACKPOT ALL OPTIONS
Victory (Polaris)
#oem кодцена
1
4012376-266
Asm-ign Switch/fuel Cap, Blk
1
4012377-266
Asm-ign/fuel/fork Lk, Intl, Blk ([int'l] )
1
7518086
Scr-sochd, M5x25
1
7517845
Scr-sochd, M5x12
1
7517515
Screw, Sochd, M5x8
2
1018003-1304
Wld-tank, Fuel, Spine, Blk/wht/gx
2
1018003-1306
Wld-tank, Fuel, Spine, Blk/r Gfx
2
1018003-266
Wld-tank, Fuel, Spine, Blk
2
1018003-1282
Wld-tank, Fuel, Spine, S Red/gfx
2
1018003-1283
Wld-tank, Fuel, Spine, T Gold/gfx
3
7517525
Screw, Sochd, M10x40
4
5136665
Bshg-flg, 10.2x14x19.5
5
5412480
Bshg-flg, 14x20.6x9.25, Rbr
7
7547233
Nut-u, M10x1.5, Long
8
5412414
Cover-fuel Tank Mnt, Lh
8
5412415
Cover-fuel Tank Mnt, Rh
9
5413346
Seal-fuel, Molded
10
2521169
Pump-fuel, Csr ([incl. 17] )
11
7518923
Scr-flghd, M5x16, 06000086
12
5413413
Line-fuel, Tank To Fuel Rail
13
7081151
Clamp-hose, 9-14 Mm Clamp Dia
14
5435764
Line-water Drain
15
5437376
Line-fuel Vent, Low Perm
16
5435771
Line-water/fuel To Ground
17
2520909
Asm-filter, Fuel
18
7080138
Зажим (поставляется по 10шт)
19
7517946
Scr-hexhd, M10x50, 0600088
20
5137570
Bshg-flg, 10.0x12x19.5
21
5413491
Bshg-flg, 12x19.5x10, Rbr
