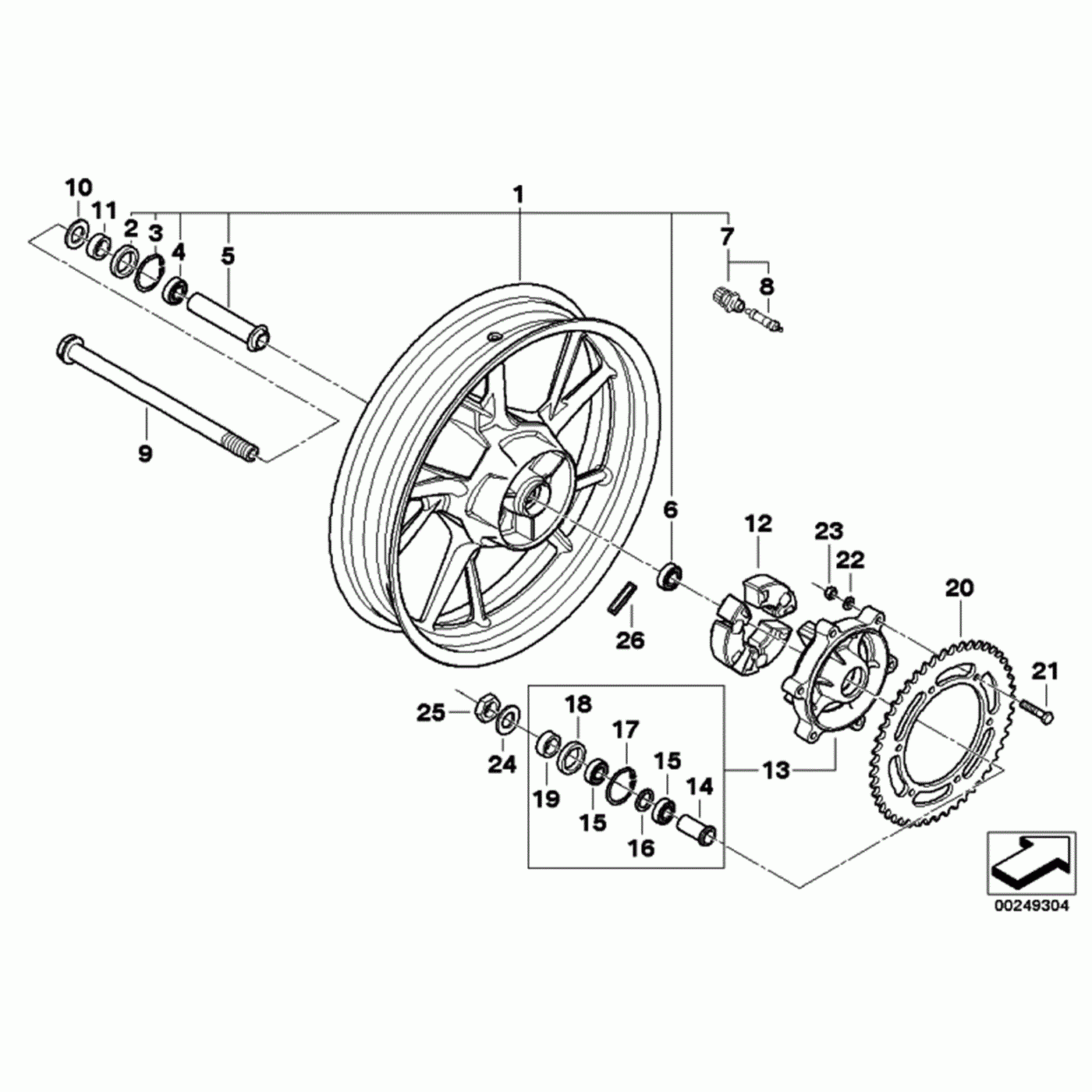

Диск колеса задний

BMW G650GS 10+ (R131)
BMW
#oem кодцена
01
36317728610
Cast Rim, Rear - 3,5x17
02
07119965056
Shaft Seal - As30x40x7
03
07119906782
Lock Ring - 40x1, 75-zns3
04
31422314724
Grooved Ball Bearing - 17x40x12
05
36312345809
Spacer Sleeve, Interior
06
31422314724
Grooved Ball Bearing - 17x40x12
07
36317693061
Клапан
08
36317685555
Valve - L=16mm
09
36317650587
Axle Shaft Rear
10
36317650590
Шайба
11
36312345814
Spacer Sleeve, Exterior
12
27712345789
Absorber
13
27718522563
Sprocket Hub
14
27712345812
Spacer Sleeve, Interior
15
07119981221
Grooved Ball Bearing - 6204-2rs
16
27717655483
Стопор
17
07119906808
Lock Ring - 47x1, 75
18
07119965056
Shaft Seal - As30x40x7
19
27712345813
Spacer Sleeve, Exterior
20
27712345857
Chain Pinion - Z=47
21
07119902910
Hex Bolt - M8x40-8.8-zns3
22
07119903078
Washer - S8 Zns3
23
07129906196
Self-locking Hex Nut - M8-8-znni Si
24
36317650590
Шайба
25
07129906784
Hex Nut - M16x1, 5
26
36317720635
Balance Weight, Zinc, W. Adhesive Foil - 5g
26
36317720636
Balance Weight, Zinc, W. Adhesive Foil - 10g
26
36317720637
Balance Weight, Zinc, W. Adhesive Foil - 15g
26
36317720638
Balance Weight, Zinc, W. Adhesive Foil - 20g
26
36317720639
Balance Weight, Zinc, W. Adhesive Foil - 25g
26
36317720640
Balance Weight, Zinc, W. Adhesive Foil - 30g
