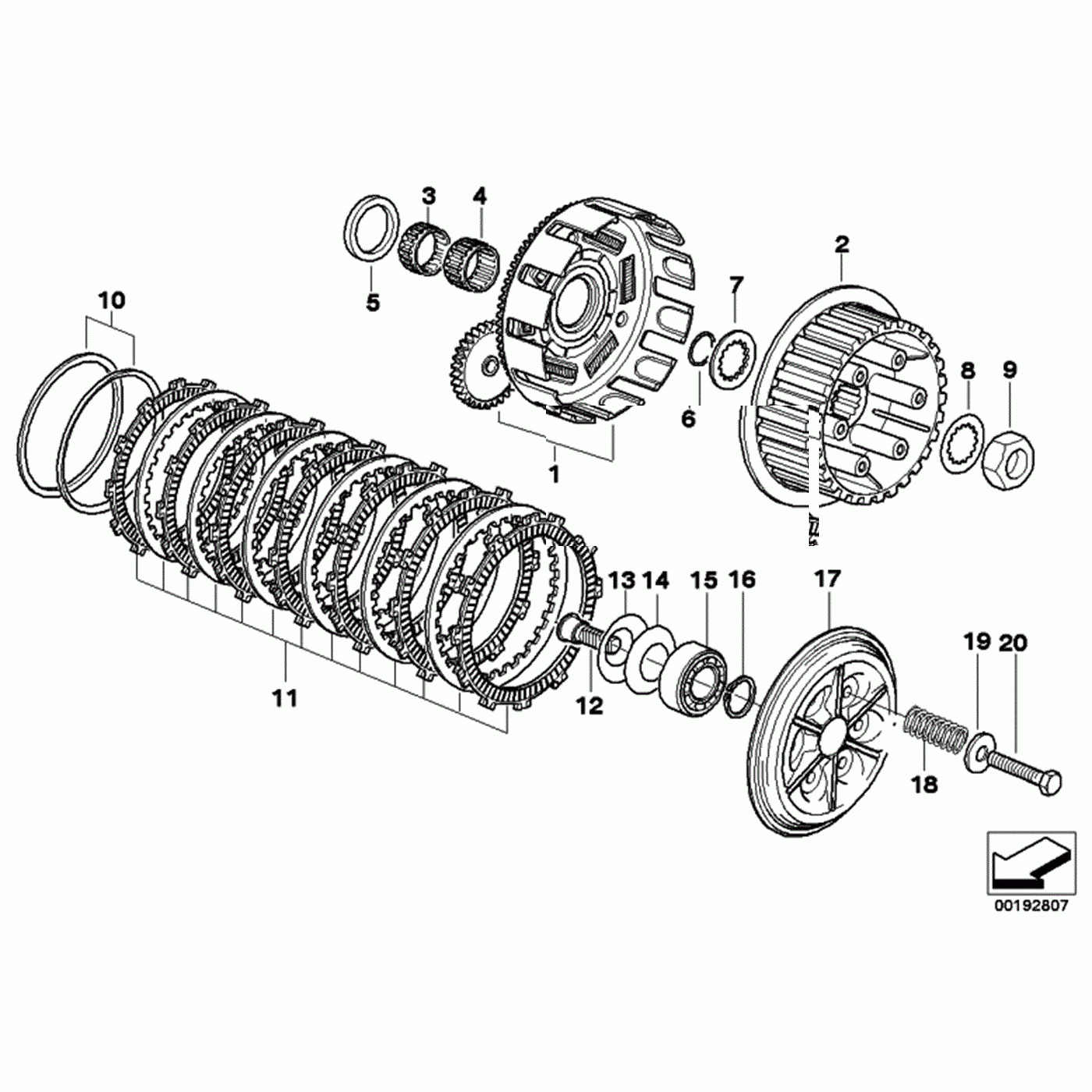

Сцепление

BMW G650GS Sertao (R134)

Сцепление

#

oem код

название

цена

01

Clutch Housing

Clutch Housing

02

Driving Dog

Driving Dog

03

Needle Cage - 25x29x13

Needle Cage - 25x29x13

04

Needle Cage - 25x29x17

Needle Cage - 25x29x17

05

Support - 25x35x2

Support - 25x35x2

06

O-ring - 17x1, 5

O-ring - 17x1, 5

07

Stop Disk - 20x38x3

Stop Disk - 20x38x3

08

Securing Plate

Securing Plate

09

Hex Nut - M18x1, 5

Hex Nut - M18x1, 5

10

Set: Judder Spring/support Disk

Set: Judder Spring/support Disk

11

Set: Set Of Clutch Disks W. Friction Liner

Set: Set Of Clutch Disks W. Friction Liner

12

Release Bearing

Release Bearing

13

Diaphragm Spring - 25, 7x14, 3x0, 4

Diaphragm Spring - 25, 7x14, 3x0, 4

14

Ball Cup

Ball Cup

15

Grooved Ball Bearing - 15x32x9

Grooved Ball Bearing - 15x32x9

16

Lock Ring - 14x1

Lock Ring - 14x1

17

Пластина

Пластина

18

Set: Spring Set

Set: Spring Set

19

Step Plate

Step Plate

20

Torx Bolt - M6x25

Torx Bolt - M6x25
