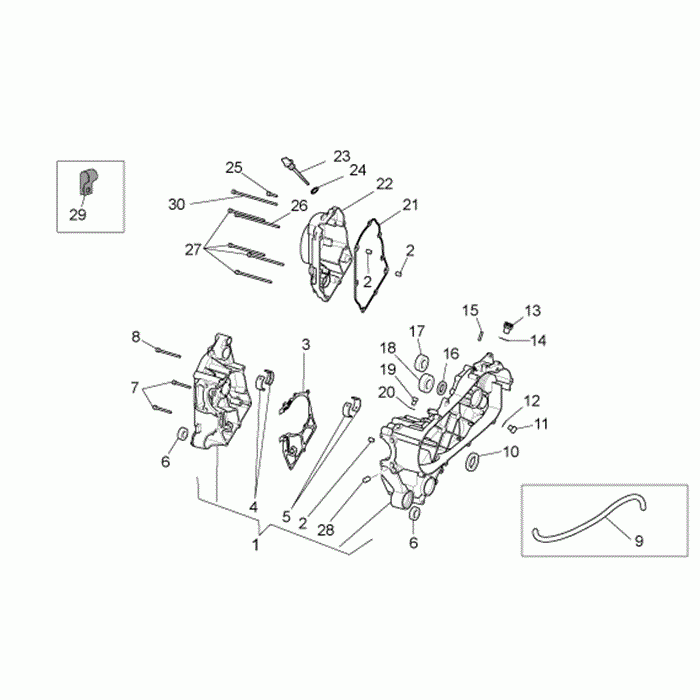

Картер

Aprilia Scarabeo 125-200 Light Carb.
Aprilia
#oem кодцена
1
856164
Crankcase Assy 125
1
856165
Crankcase Assy 200
2
AP3FCN000126
Pin D.10 H=13
3
AP3HVA000301
Прокладка
4
AP3FCA00028701
Rh Bushing Half-shell, Blue
4
AP3FCA00028702
Rh Bushing Half-shell, Red
4
AP3FCA00028703
Rh Bushing Half-shell, Yellow
5
AP3FCA00045101
Lh Bushing Half-shell, Blue
5
AP3FCA00045103
Lh Bushing Half-shell, Red
5
AP3FCA00045102
Lh Bushing Half-shell, Yellow
6
AP4GAN000263
Подшипник
7
AP4ADN000141
Screw M6x50
8
AP4ADN000142
Screw M6x70
9
JC09354X00300
Breather Pipe
10
852995
Gasket Ring 30x52x7
11
AP3HAA000305
Oil Plug
12
AP4EAN000148
Gasket 12x18
13
AP3HAA000306
Воронка
14
AP4EAN000147
Уплотнительное кольцо
15
AP3HDN000122
Pipe 6, 5x25
16
AP4EBN000228
Gasket Ring 25x40x7
17
AP4GAN000137
Подшипник
18
AP4GAN000136
Подшипник
19
AP4ADN000145
Screw M8x14
20
AP4EAN000146
Gasket 8x12
21
AP3HVA000302
Прокладка
22
852758
Flywheel Cover Cpl.
23
AP3HAA000303
Oil Level Rod Cpl.
24
AP4EAN000134
Уплотнительное кольцо
25
AP4ADN000016
Hex Socket Screw M6x25
26
AP4ADN000144
Hex Socket Screw M6x140
27
AP4ADN000143
Hex Socket Screw M6x110
28
AP4FCN000324
Pin 5x12 125
29
JC09404X06431
Wiring Clip
30
JCC2010X6170W
Hex Socket Screw M6x170
