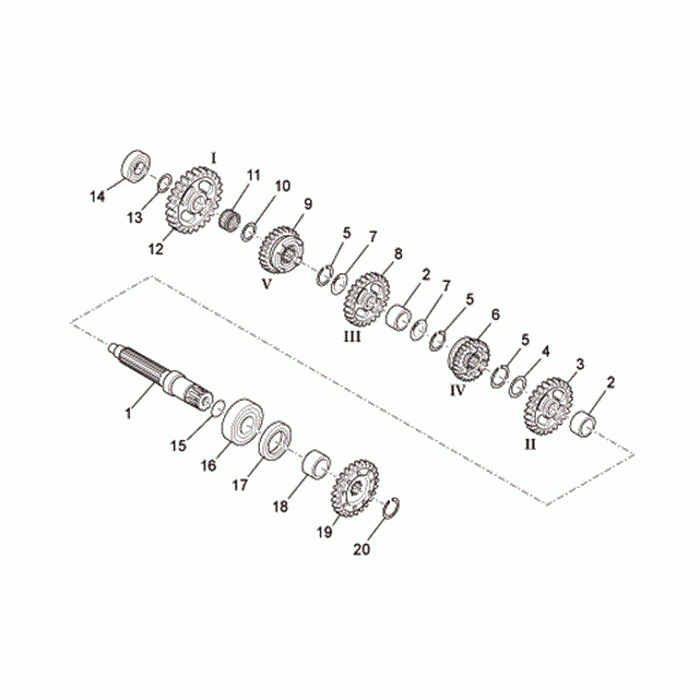

Ведомый вал

Aprilia RXV-SXV 450-550 Pikes Peak
Aprilia
#oem кодцена
1
AP9150311
Driven Shaft
1
AP9150263
Driven Shaft Sx45-sx55-vdb45-vdb55
2
AP9150216
Bush D25x28x9, 9
3
AP9150250
2nd Wheel Gear Z=25
3
AP9150262
2nd Wheel Gear Z=27 Sx45-sx55-vdb45-vdb55
4
AP9150297
Plain Washer D25, 1x30, 8x0, 5
5
AP9150302
Outside Circlip D25
6
AP9150249
4th Wheel Gear Z=24
6
AP9150261
4th Wheel Gear Z=23 Sx45-sx55-vdb45-vdb55
7
AP9150267
Special Washer D25, 1x30, 8x0,
8
AP9150248
3rd Wheel Gear Z=23
8
AP9150260
3rd Wheel Gear Z=23 Sx45-sx55-vdb45-vdb55
9
AP9150259
5th Wheel Gear Z=21 Sx45-sx55-vdb45-vdb55
9
AP9150247
5th Wheel Gear Z=22
10
AP9150296
Washer D20, 1x28, 8x0, 8
11
AP9150370
Roller Cage D20x24x10
12
AP9150246
1st Wheel Gear Z=31
12
AP9150258
1st Wheel Gear Z=30 Sx45-sx55-vdb45-vdb55
13
AP9150294
Washer D17, 1x27, 8x0, 8
14
AP9150361
Ball Bearing D17x47x14
15
AP9150357
O-ring D21, 95x1, 78
16
AP9150363
Ball Bearing D25x52x15
17
AP9150382
Oil Seal D40x32x5
18
AP9150218
Spacer 25x32x14
18
AP9150237
Spacer 25x32x22 Sx45-sx55-vdb45-vdb55
19
AP9100600
Pinion Z=16 Sx55
19
AP9100525
Pinion Z=15
20
AP9100451
Outside Circlip D25
