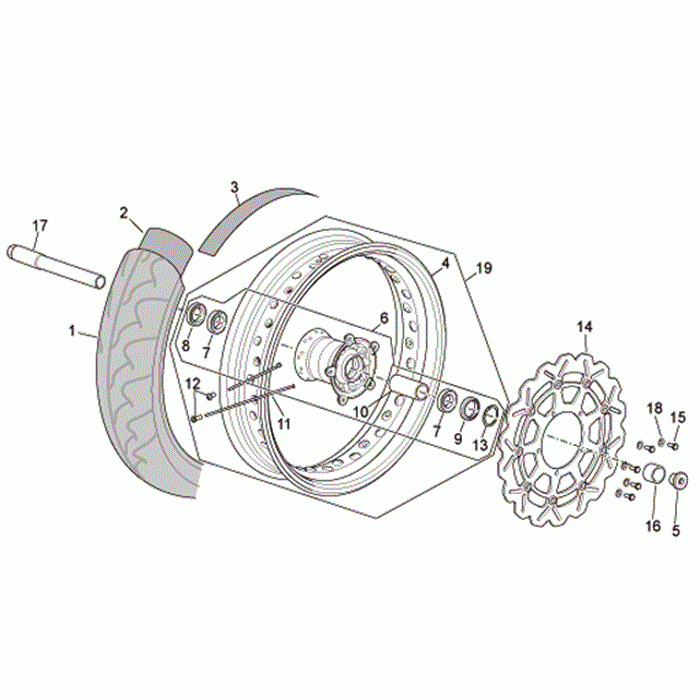

Front wheel ii

Aprilia RXV-SXV 450-550 Pikes Peak
Aprilia
#oem кодцена
1
AP9100530
Front/rear Tyre 120/70x17" Sx
2
AP8109306
Inner Tube 17" Fac
3
AP8109309
Flap 17" Fac
4
AP9100561
Front Wheel 3, 5x17" Sx
5
AP9100171
Plug M22
6
AP9100225
Front Hub
7
AP9100216
Ball Bearing 25x42x9
8
AP9100228
Gasket Ring 28x42x7
9
AP9100227
Gasket Ring 32x42x7
10
AP9100226
Internal Spacer L=69, 7
11
AP9100106
Spoke D.3, 5-17" Sx
12
AP8108672
Nipples D3, 5
13
AP8121334
Circlip D.42 125-200
14
AP9100528
Front Brake Disc D.320 Sx
15
AP8150070
Hex Screw M6x16 Rally-rx
16
AP9100229
Outside Spacer L=26, 3
17
AP9100230
Front Wheel Spindle L=221, 5 Rally-rx
18
AP8150429
Spring Washer 6, 4x11x0, 5*
19
851064
Front Wheel 17" Sx
