Front body - internal shield

Aprilia Scarabeo 125-200 IE Light

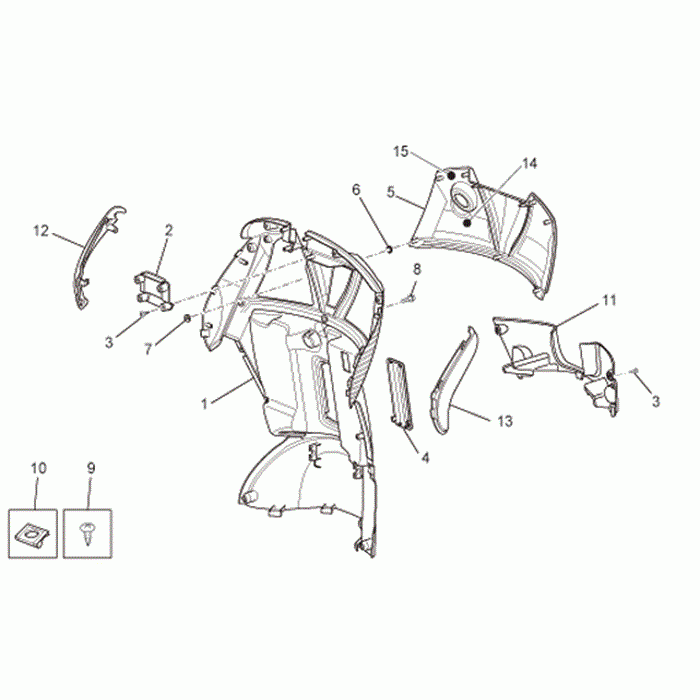

Front body - internal shield

#

oem код

название

цена

1

Internal Shield

Internal Shield

2

Front Protection

Front Protection

3

Inox Self Tapping Screw 3, 9x14

Inox Self Tapping Screw 3, 9x14

4

Type Appr.data Cover

Type Appr.data Cover

5

JC921819200007B

Cover, Black

Cover, Black

5

Cover, Blank

Cover, Blank

5

JC921819200006B

Cover, Blue

Cover, Blue

5

JC921819200007C

Cover, Grey

Cover, Grey

5

JC921819200006Z

Cover, Sky Blue

Cover, Sky Blue

5

JC921819200007D

Cover, White

Cover, White

6

Plastic Washer

Plastic Washer

7

Зажим

Зажим

8

Screw W/ Flange M5x12*

Screw W/ Flange M5x12*

9

Screw 4, 2x16*

Screw 4, 2x16*

10

Зажим

Зажим

11

Glove Box Internal Grille

Glove Box Internal Grille

12

Lh Air Intake

Lh Air Intake

13

Rh Air Intake

Rh Air Intake

14

Decal 125 125

Decal 125 125

14

Decal 200 200

Decal 200 200

15

Decal "i.e."

Decal "i.e."
