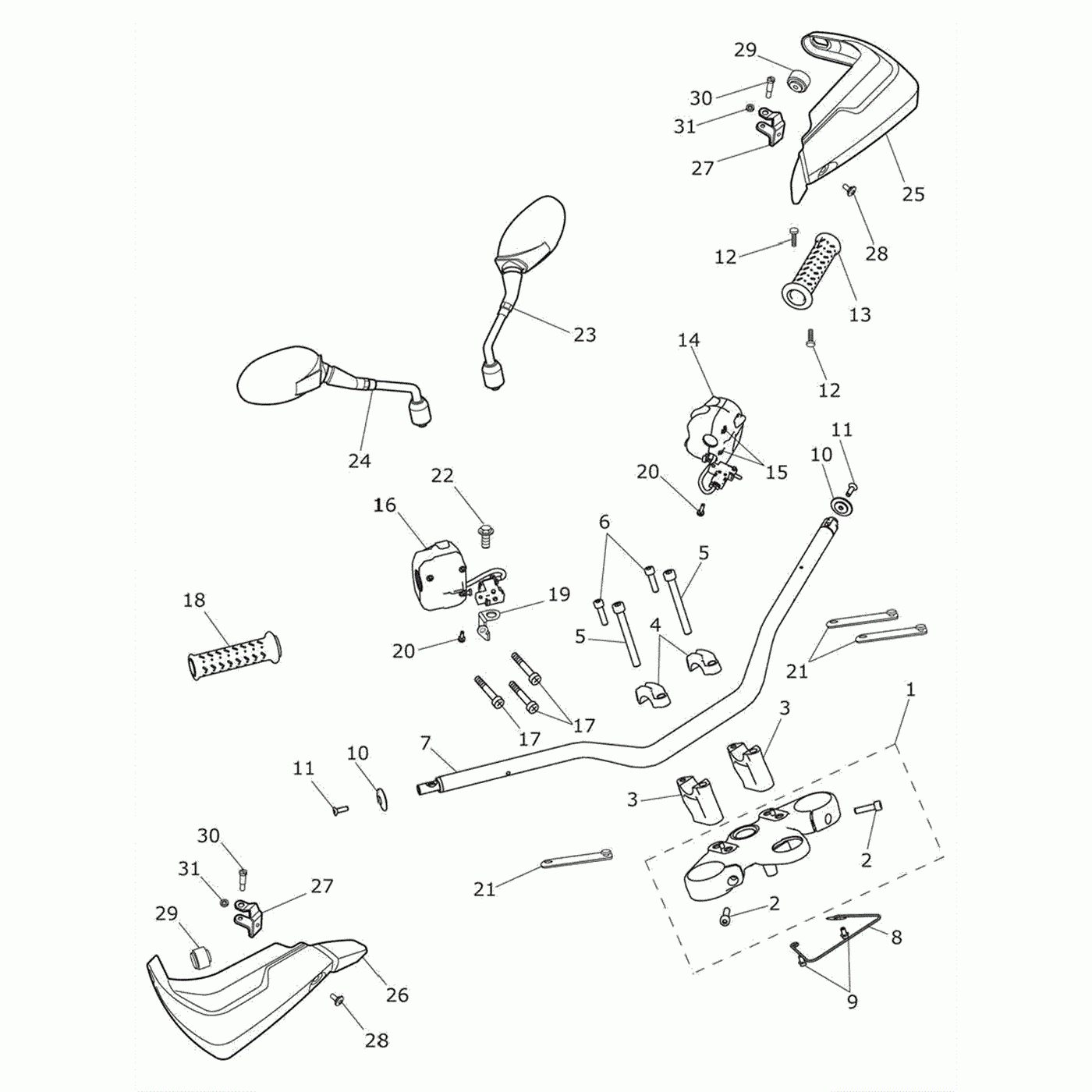

Руль и переключатели

Triumph Tiger Explorer
Triumph
#oem кодцена
1
T2041622
Yoke Assy, Upper
2
T3050323
Screw, Cap/hd, M8x1.25x30, Slv
3
T2040813
Clamp, Handlebar, Lower
4
T2040826
Clamp, Handlebar, Upper
5
T3050154
Bolt,cap/hd, M10x1.25x90
6
T3050323
Screw, Cap/hd, M8x1.25x30, Slv
7
T2041624
Handlebar, Tapered
8
T2040623
Wire Guide
9
T3205061
Bolt, Hhf, Lghtd, M6x1.0x10, Slv
10
T2041849
Handlebar End Weight
11
T3330876
Screw, C/sunk, Skt, M6x1.0x40, S/s
12
T3331439
Screw, S/tap, Pan/hd, M4x10, Slv
13
T2042464
Grip, Handlebar, Lh
14
T2042035
Switch Cube Assy, Lh
15
T3331790
Screw, M5 X 30
16
T2042463
Switchcube, Aps, Rh, Non Drl
17
T3331440
Screw, Pan/hd, Phil, M5x0.8x40
18
T2042454
Grip, Handlebar, Rh
19
T2042664
Bracket, Switchcube
20
T3331750
Screw, Tx, M4x0.7x17.5, Slv
21
T3050141
Bolt, H/hd, M10x1.25x16
21
T3700212
Band, Rubber
22
T3332655
Screw, Button Hd, M5*12, Slv
23
T2060036
Mirror Assy, Lh
24
T2060041
Mirror Assy, Rh
25
T2303388
Handguard, Moulding, Lh
26
T2303389
Handguard, Moulding, Rh
27
T2303384
Bracket, Handguard
28
T3330858
Bolt, But/hd, M6x1.0x15, Shld, Slv
29
T2303383
Spacer, Handguard
30
T2020524
Bolt, Pivot, M6*1.0, Dia 7.9
31
T2309018
Sleeve, 8.2 X 11.0 X 2.3
