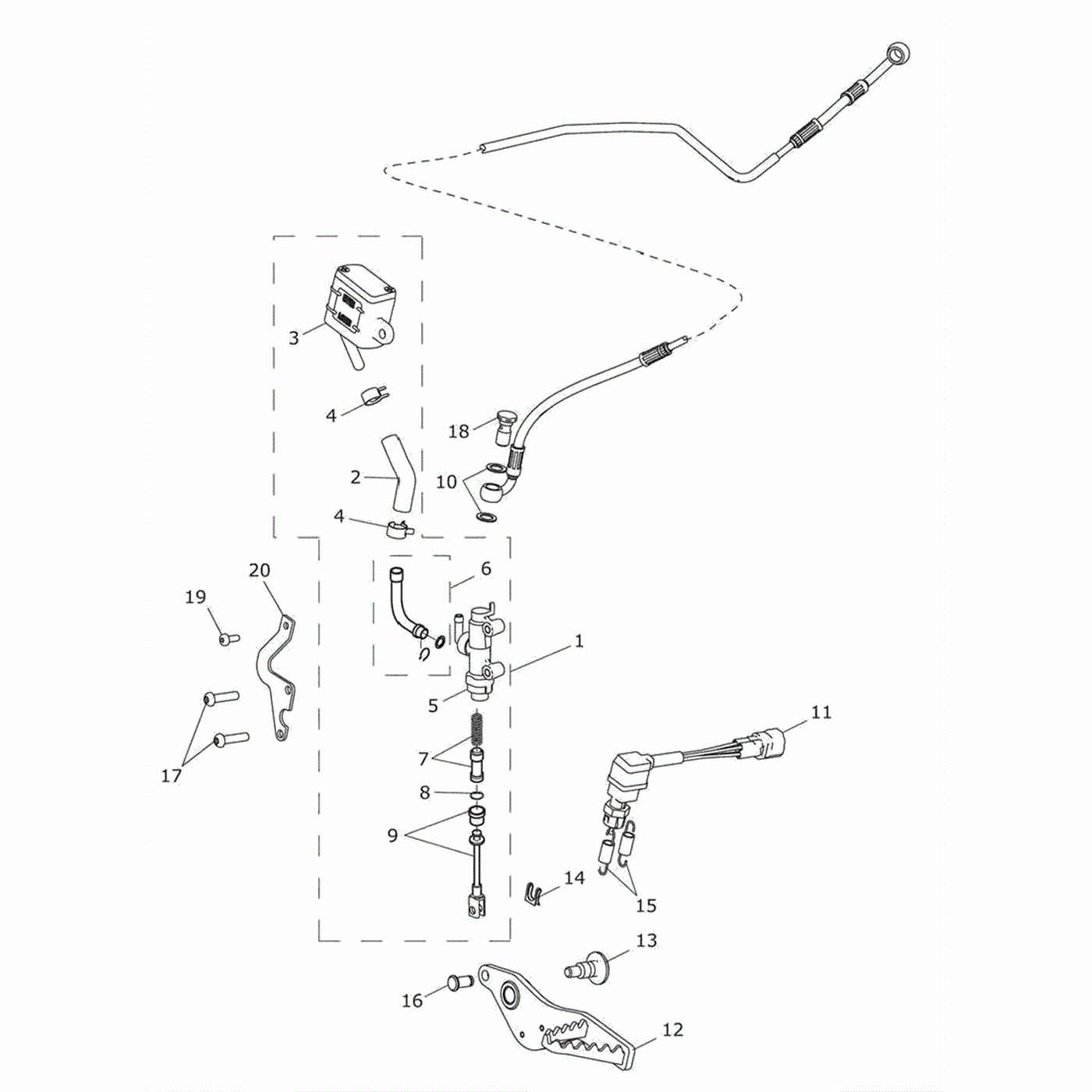

Задний цилиндр и педаль тормоза

Triumph Tiger Explorer

Задний цилиндр и педаль тормоза

#

oem код

название

цена

1

M/cyl, Brake, Rear

M/cyl, Brake, Rear

2

Hose, Reservoir, M/cyl, Rr

Hose, Reservoir, M/cyl, Rr

3

Reservoir, Square, Tank Assy

Reservoir, Square, Tank Assy

4

Зажим

Зажим

6

Connector Set

Connector Set

7

Piston Set, Rear M'cylinder

Piston Set, Rear M'cylinder

8

Circlip, M'cylinder, Rear

Circlip, M'cylinder, Rear

9

M/cyl Push Rod Assy

M/cyl Push Rod Assy

10

Washer, 15.2 X 10 X 1.0, Plated

Washer, 15.2 X 10 X 1.0, Plated

11

Switch, Brake, Dual

Switch, Brake, Dual

12

Brake Pedal Assy, Rear

Brake Pedal Assy, Rear

13

Bolt, Shld, M8 X 1.25, Slv, Enc

Bolt, Shld, M8 X 1.25, Slv, Enc

14

Clip, 8mm Clevis Pin

Clip, 8mm Clevis Pin

15

Spring, Brake Lever Return

Spring, Brake Lever Return

16

Pin, Clevis 8 X 13.7

Pin, Clevis 8 X 13.7

17

Screw, But/hd, Tx, Ss, M8x1.25x35

Screw, But/hd, Tx, Ss, M8x1.25x35

18

Bolt, Banjo, M10x1.25x21

Bolt, Banjo, M10x1.25x21

19

Screw, Tx, Pan/hd, M6x1.0x16, Slv

Screw, Tx, Pan/hd, M6x1.0x16, Slv

20

Bracket, Reservoir

Bracket, Reservoir
