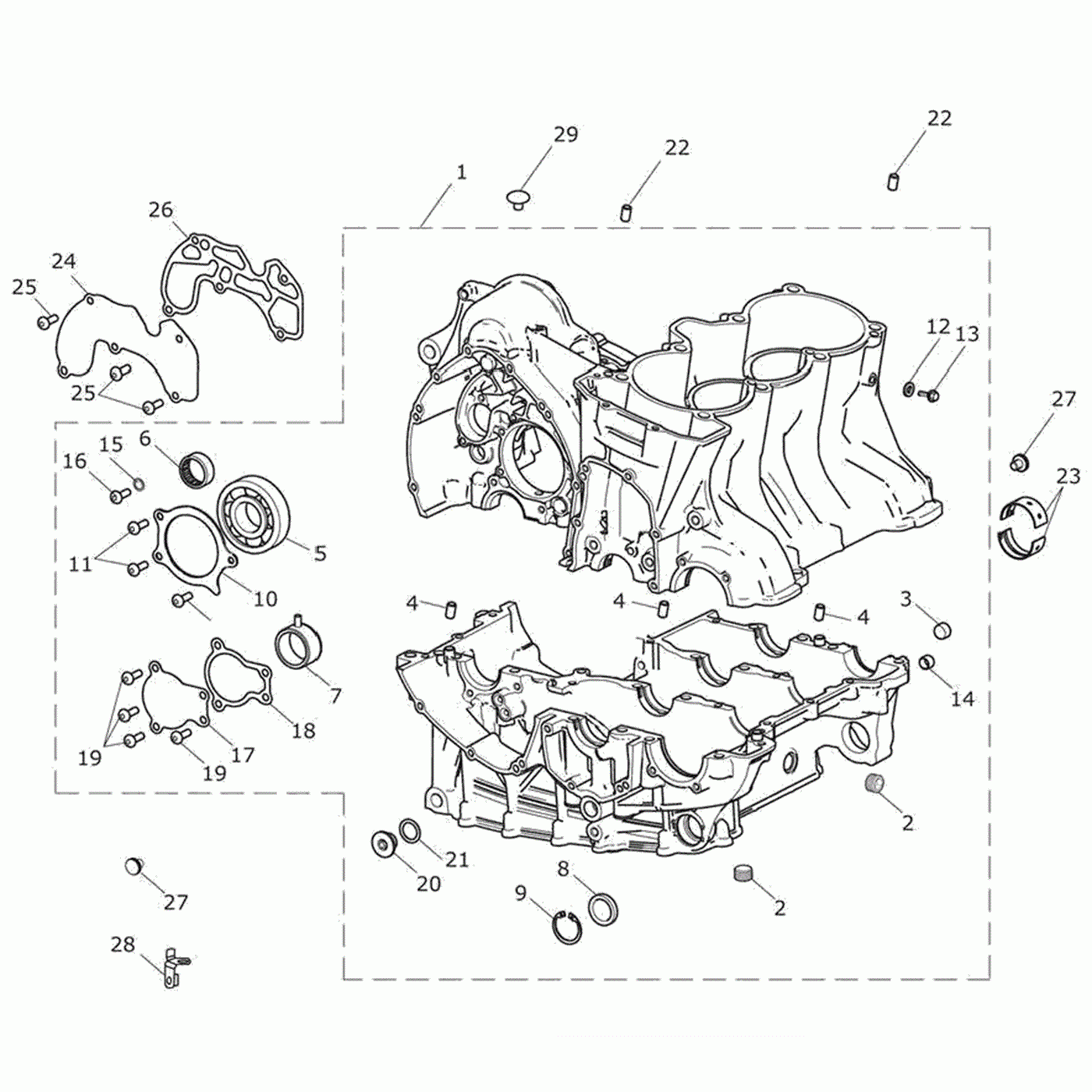

Crankcase & fittings

Triumph Tiger Explorer
Triumph
#oem кодцена
2
T3450005
Plug, N.p.s.i. 3/8 Dry Seal
3
T3450091
Plug, Dia 14mm Alum
4
T3000102
Dowel, Hollow, 10x14
5
T3800165
Brg, D.g.ball, 30x72x19
6
T3800203
Bearing, Needle, 25x32x12
7
T1180156
Sleeve Assy, I/put, Fixed Dowel
8
T1261049
Sight Glass
9
T3500078
Circlip,internal, Dia 31.4
10
T1182203
Plate, Retainer, Bearing, Input
11
T3331189
Screw, Pan/hd, Tx, M6x1.0x12, Enc
12
T3550542
Washer, Cu, Od12.5, Id6.4, 0.8
13
T3205062
Bolt, Hhf, Lghtd, M6x1.0x12, Slv
14
T1222207
Bush, 10x12x8
15
T3550601
Washer, 6.4x16x2
16
T3331189
Screw, Pan/hd, Tx, M6x1.0x12, Enc
17
T1160217
Plate, Oil Retainer
18
T1160218
Gasket, Oil Retainer Plate
19
T3331189
Screw, Pan/hd, Tx, M6x1.0x12, Enc
20
T3450119
Plug, Face Seal, 5/8 Bsp
21
T3600191
O Ring, 16 X 2.0
22
T3000101
Dowel, Hollow, 8x14
23
T1161453
Main Bearing, Grooved, Green
23
T1161452
Main Bearing, Grooved, Blue
23
T1161451
Main Bearing, Grooved, Red
23
T1161450
Main Bearing, Grooved, White
24
T1162201
Baffle Plate, C/case Breather
25
T3331189
Screw, Pan/hd, Tx, M6x1.0x12, Enc
27
T3450299
Fir Tree M6 17.8 X 15.5
28
T2503147
Brkt, Cable Tidy Mldg
29
T3450101
Button,. Fir Tree, M6
