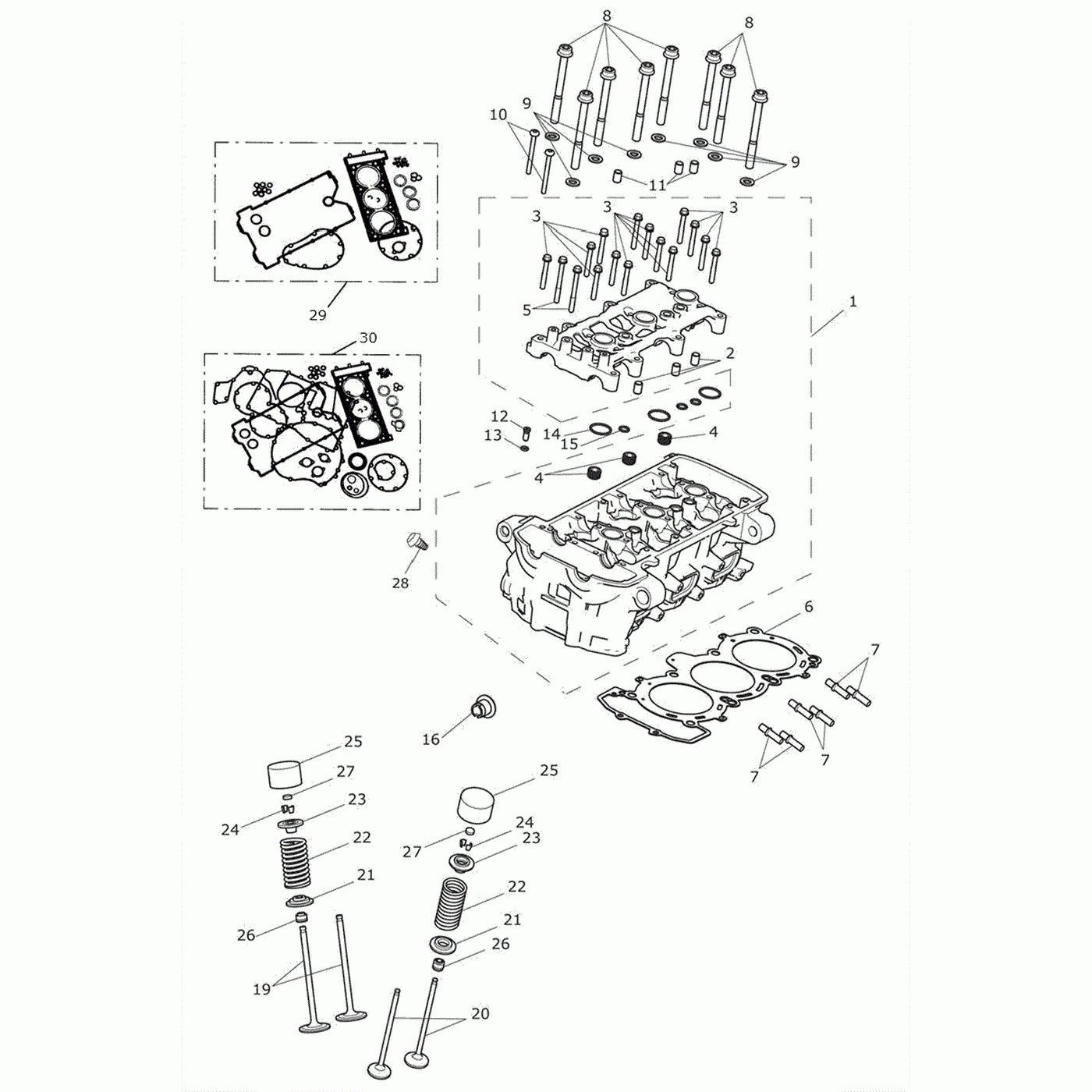

Головка блока цилиндров и клапаны

Triumph Tiger Explorer

Головка блока цилиндров и клапаны

#

oem код

название

цена

1

Cylinder Head, Machined Sai

Cylinder Head, Machined Sai

2

Dowel, Hollow, 10x14

Dowel, Hollow, 10x14

3

Bolt, M6x40

Bolt, M6x40

4

Plug, N.p.s.i. 3/8 Dry Seal

Plug, N.p.s.i. 3/8 Dry Seal

5

Bolt, Rhhf, M6 X 60, 10.9 Raw

Bolt, Rhhf, M6 X 60, 10.9 Raw

6

Прокладка

Прокладка

7

Stud, Shld, M8x1.25x36.5, Slv, Enc

Stud, Shld, M8x1.25x36.5, Slv, Enc

8

Bolt, Cylinder Head

Bolt, Cylinder Head

9

Washer, Hardened, 10.5x18.1x2.0

Washer, Hardened, 10.5x18.1x2.0

10

Screw, Pan/hd, Tx, M6x55, Slv

Screw, Pan/hd, Tx, M6x55, Slv

11

Dowel, Hollow, 10x14

Dowel, Hollow, 10x14

12

Restrictor, Oil

Restrictor, Oil

13

O Ring, Restrictor

O Ring, Restrictor

14

O-ring, Fluorocarbon, 25 X 2.0

O-ring, Fluorocarbon, 25 X 2.0

15

O Ring, 8.0 X 2.0

O Ring, 8.0 X 2.0

16

Adjuster, Frame, M12

Adjuster, Frame, M12

19

Valve, Inlet

Valve, Inlet

20

Клапан выпускной

Клапан выпускной

21

Platform, Spring, Valve

Platform, Spring, Valve

22

Пружина клапана

Пружина клапана

23

Retainer, Spring, Valve

Retainer, Spring, Valve

24

Collet, Valve

Collet, Valve

25

Bucket, Tappet, Dia 28.5mm

Bucket, Tappet, Dia 28.5mm

26

Seal, Oil, Valve Stem, 5 Mm

Seal, Oil, Valve Stem, 5 Mm

27

Shim,1.725mm, Dia 9.5

Shim,1.725mm, Dia 9.5

27

Shim, 1.7mm, Dia 9.5

Shim, 1.7mm, Dia 9.5

27

Shim, 3.0mm Dia 9.5

Shim, 3.0mm Dia 9.5

27

Shim,2.975mm, Dia 9.5

Shim,2.975mm, Dia 9.5

27

Shim,2.95mm, Dia 9.5

Shim,2.95mm, Dia 9.5

27

Shim, 2.925mm, Dia 9.5

Shim, 2.925mm, Dia 9.5

27

Shim,2.9mm, Dia 9.5

Shim,2.9mm, Dia 9.5

27

Shim, 2.875mm, Dia 9.5

Shim, 2.875mm, Dia 9.5

27

Shim, 2.85mm, Dia 9.5

Shim, 2.85mm, Dia 9.5

27

Shim,2.825mm, Dia 9.5

Shim,2.825mm, Dia 9.5

27

Shim, 2.8mm, Dia 9.5

Shim, 2.8mm, Dia 9.5

27

Shim,2.775mm, Dia 9.5

Shim,2.775mm, Dia 9.5

27

Shim, 2.75mm, Dia 9.5

Shim, 2.75mm, Dia 9.5

27

Shim,2.725mm, Dia 9.5

Shim,2.725mm, Dia 9.5

27

Shim,2.7mm, Dia 9.5

Shim,2.7mm, Dia 9.5

27

Shim,2.675mm, Dia 9.5

Shim,2.675mm, Dia 9.5

27

Shim,2.65mm, 9.5

Shim,2.65mm, 9.5

27

Shim, 2.625mm, 9.5

Shim, 2.625mm, 9.5

27

Shim, 2.6mm, Dia 9.5

Shim, 2.6mm, Dia 9.5

27

Shim,2.575mm, Dia 9.5

Shim,2.575mm, Dia 9.5

27

Shim,2.55mm, Dia 9.5

Shim,2.55mm, Dia 9.5

27

Shim, 2.525mm,dia 9.5

Shim, 2.525mm,dia 9.5

27

Shim,2.5mm, Dia 9.5

Shim,2.5mm, Dia 9.5

27

Shim, 2.475mm, Dia 9.5

Shim, 2.475mm, Dia 9.5

27

Shim, 2.45mm, Dia 9.5

Shim, 2.45mm, Dia 9.5

27

Shim, 2.425mm, Dia 9.5

Shim, 2.425mm, Dia 9.5

27

Shim, 2.4mm, Dia 9.5

Shim, 2.4mm, Dia 9.5

27

Shim, 2.375mm, Dia 9.5

Shim, 2.375mm, Dia 9.5

27

Shim, 2.35mm, Dia 9.5

Shim, 2.35mm, Dia 9.5

27

Shim, 2.325mm, Dia 9.5

Shim, 2.325mm, Dia 9.5

27

Shim, 2.3mm, Dia 9.5

Shim, 2.3mm, Dia 9.5

27

Shim,2.275m, Dia 9.5

Shim,2.275m, Dia 9.5

27

Shim,2.25mm, Dia 9.5

Shim,2.25mm, Dia 9.5

27

Shim,2.225mm, Dia 9.5

Shim,2.225mm, Dia 9.5

27

Shim, 2.2mm, Dia 9.5

Shim, 2.2mm, Dia 9.5

27

Shim, 2.175mm, Dia 9.5

Shim, 2.175mm, Dia 9.5

27

Shim,2.125mm, Dia 9.5

Shim,2.125mm, Dia 9.5

27

Shim, 2.125mm, Dia 9.5

Shim, 2.125mm, Dia 9.5

27

Shim, 2.1mm, Dia 9.5

Shim, 2.1mm, Dia 9.5

27

Shim,2.075mm, Dia 9.5

Shim,2.075mm, Dia 9.5

27

Shim,2.05mm, Dia 9.5

Shim,2.05mm, Dia 9.5

27

Shim,2.025mm, Dia 9.5

Shim,2.025mm, Dia 9.5

27

Shim,2.0mm, Dia 9.5

Shim,2.0mm, Dia 9.5

27

Shim,1.975mm, Dia 9.5

Shim,1.975mm, Dia 9.5

27

Shim,1.95mm, Dia 9.5

Shim,1.95mm, Dia 9.5

27

Shim,1.925mm, Dia

Shim,1.925mm, Dia

27

Shim, 1.9mm, Dia 9.5

Shim, 1.9mm, Dia 9.5

27

Shim,1.875mm, Dia 9.5

Shim,1.875mm, Dia 9.5

27

Shim, 1085mm, 9.5

Shim, 1085mm, 9.5

27

Shim, 1.825mm, Dia 9.5

Shim, 1.825mm, Dia 9.5

27

Shim, 1.8mm, Dia 9.5

Shim, 1.8mm, Dia 9.5

27

Shim,1.775, Dia 9.5

Shim,1.775, Dia 9.5

27

Shim, 1.75mm, Dia 9.5

Shim, 1.75mm, Dia 9.5

28

Fir Tree, M5, Dia 12.1 X 15.0

Fir Tree, M5, Dia 12.1 X 15.0
