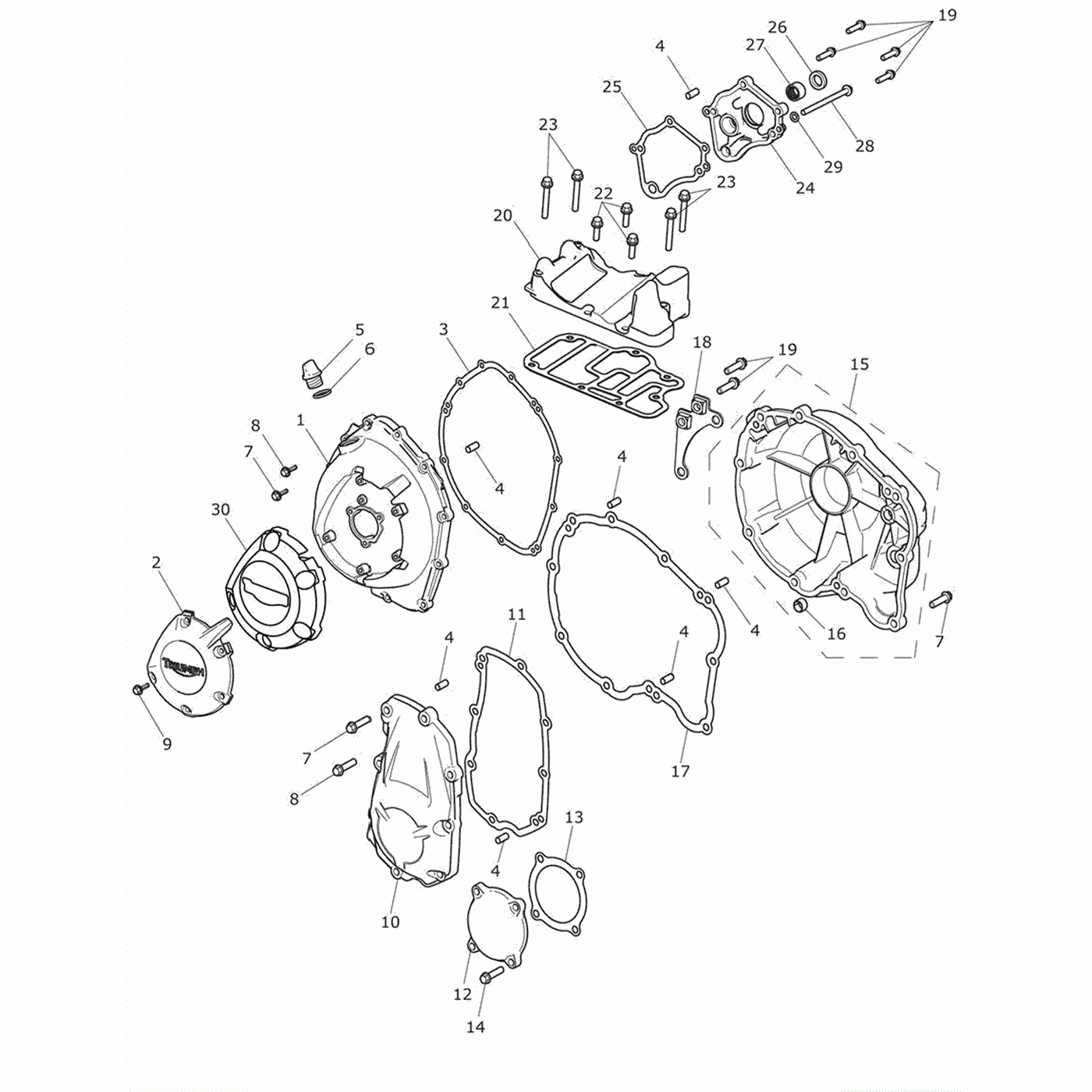

Крышки двигателя

Triumph Tiger Explorer
Triumph
#oem кодцена
1
T1261440
Крышка сцепления
2
T1261424
Cover, Slave Cylinder
3
T1261430
Прокладка крышки сцепления
4
T3000005
Dowel 6 X 16
5
T1261053
Oil Filler Cap
6
T3600163
O-ring, Id 19x3.0
7
T3205067
Bolt, Hhf, Lghtd, M6x1.0x25, Slv
8
T3205081
Bolt, Hhf, Lghtd, M6x1.0x28, Enc
9
T3205085
Bolt, Hhf, Lghtd, M6x1.0x20, Enc
10
T1261421
Cover, Crank, Rhs
11
T1261431
Gasket, Rh Crank Cover
12
T1261621
Cover, Balancer, Lavante
13
T1260267
Gasket, Balancer Cover
14
T3205066
Bolt, Rhhf, M6x1x20, Slv
15
T1261422
Cover, Lh Crank, Assy
16
T1222207
Bush, 10x12x8
17
T1261433
Gasket, Lh Crank
18
T2100462
Bracket, Expansion Tank
19
T3205083
Bolt, Hhf, Lghtd, M6x1.0x28, Slv
21
T1260296
Gasket, Breather Cover
22
T3205064
Bolt Rhhf Domed S/s M6 X 16
23
T3205078
Bolt, Hhf, Lghtd, M6x1.0x35, Enc
24
T1261427
Cover, Gearchange
25
T1261426
Gasket, Gearchange Cover
26
T3600088
Seal, Oil, 14x22x4.5
27
T3800001
Bearing, Needle Roller, 20x14x12
28
T3202330
Bolt, Rhhf, M6x1.0x90.0, Slv
29
T3550542
Washer, Cu, Od12.5, Id6.4, 0.8
30
T1262202
Supression Pad, Clutch
