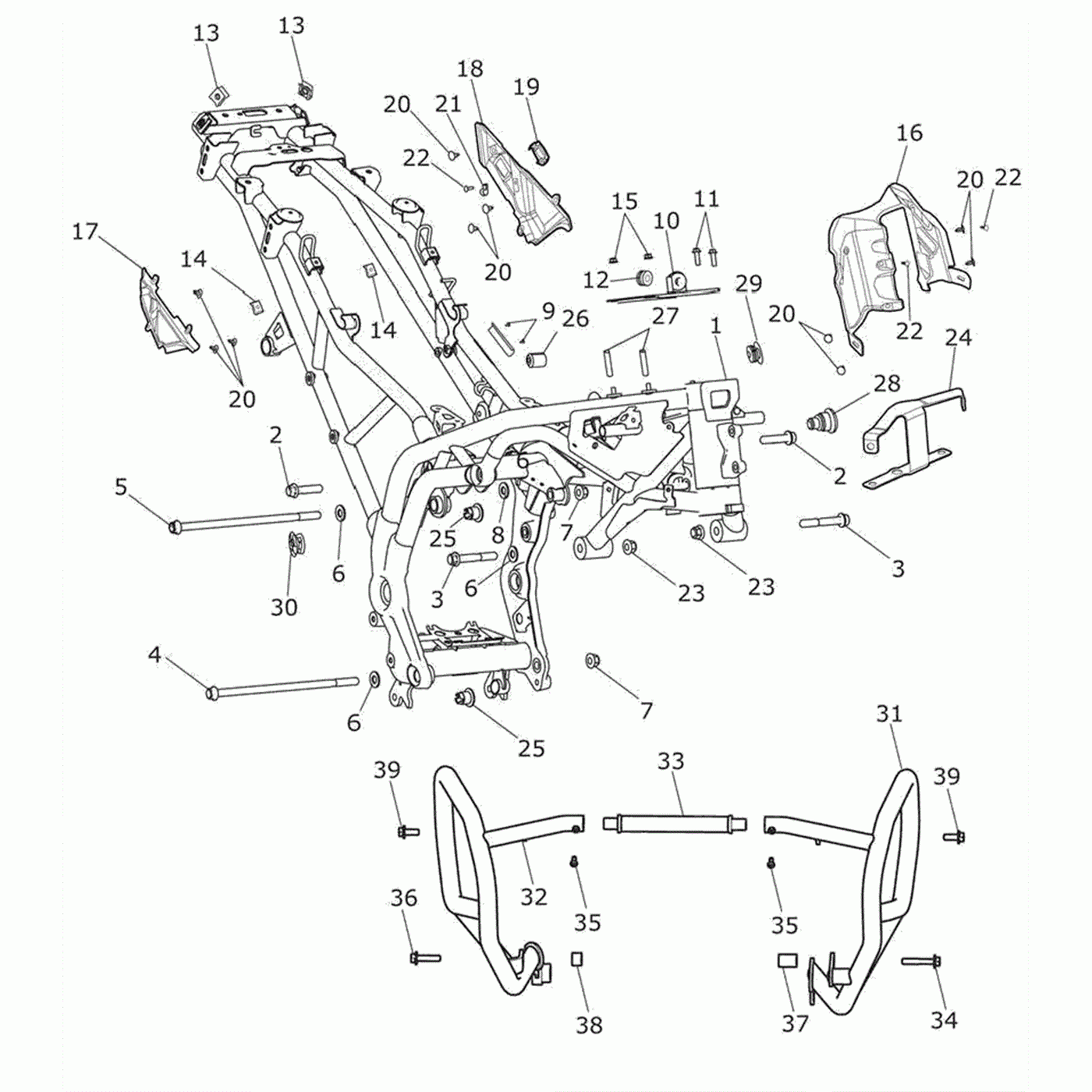

Главная рама и фитинги

Triumph Tiger Explorer

Главная рама и фитинги

#

oem код

название

цена

2

Screw,torx, M12 X 1.25 X 50

Screw,torx, M12 X 1.25 X 50

3

Bolt, M12x1.25x75

Bolt, M12x1.25x75

5

Screw,torx, M12x1.25x265

Screw,torx, M12x1.25x265

6

Washer, Hardened,26.0x12.5x3.0

Washer, Hardened,26.0x12.5x3.0

7

Washer, Thrust, 26x19x1.5

Washer, Thrust, 26x19x1.5

8

Spacer, Engine Mount, M12

Spacer, Engine Mount, M12

9

Заклёпка

Заклёпка

10

Pressing, Headstock Brace, Top

Pressing, Headstock Brace, Top

11

Bolt, Rhhf, M6x1.0x20, Slv

Bolt, Rhhf, M6x1.0x20, Slv

12

Grommet; Dia 19.5 X 4.0 Panel

Grommet; Dia 19.5 X 4.0 Panel

13

Nut, Captive M6

Nut, Captive M6

14

Nut, Captive, M5, Non Secured

Nut, Captive, M5, Non Secured

15

Flanged Lock Nut, M6

Flanged Lock Nut, M6

16

Headstock Infill, Mldg

Headstock Infill, Mldg

17

Frame Infill, Rhs

Frame Infill, Rhs

18

Frame Infill, Lhs

Frame Infill, Lhs

19

Blank Plug, Switch

Blank Plug, Switch

20

Rivet, Plastic, Screw Type

Rivet, Plastic, Screw Type

21

Clip, Dia 9.5 Plastic Black

Clip, Dia 9.5 Plastic Black

22

Clip, Firtree, Dia5.0x18.0

Clip, Firtree, Dia5.0x18.0

23

Locknut, Flgd, M12x1.25, Silver

Locknut, Flgd, M12x1.25, Silver

25

Adjuster, Frame, M12

Adjuster, Frame, M12

26

Bush, Rubber Mount, 10.2x27x32

Bush, Rubber Mount, 10.2x27x32

27

Stud, M6

Stud, M6

28

Pin, Pivot, M30 X 1.5

Pin, Pivot, M30 X 1.5

29

Bung, Tube, Upper Cross Beam, Lhs

Bung, Tube, Upper Cross Beam, Lhs

30

Bung,tube,upper Cross Beam, Rh

Bung,tube,upper Cross Beam, Rh

31

Protector Bar, Engine, Lh

Protector Bar, Engine, Lh

32

Protector Bar, Engine, Rh

Protector Bar, Engine, Rh

33

Link Bar, Fab

Link Bar, Fab

34

Bolt, Hhf, Lghtd, M8x1.25x45, Slv

Bolt, Hhf, Lghtd, M8x1.25x45, Slv

35

Screw, Pan/hd, Tx, M5x0.8x12, Slv

Screw, Pan/hd, Tx, M5x0.8x12, Slv

36

Bolt, Hhf, Lghtd, M8x1.25x33, Slv

Bolt, Hhf, Lghtd, M8x1.25x33, Slv

37

Spacer, 8.4 X 17.8 X 25, Alum

Spacer, 8.4 X 17.8 X 25, Alum

38

Spacer, 8.4 X 17.8 X 13, Alum

Spacer, 8.4 X 17.8 X 13, Alum

39

Bolt, Hhf, Lghtd, M8x1.25x25, Slv

Bolt, Hhf, Lghtd, M8x1.25x25, Slv

4

Screw,torx, M12x1.25x250

Screw,torx, M12x1.25x250
