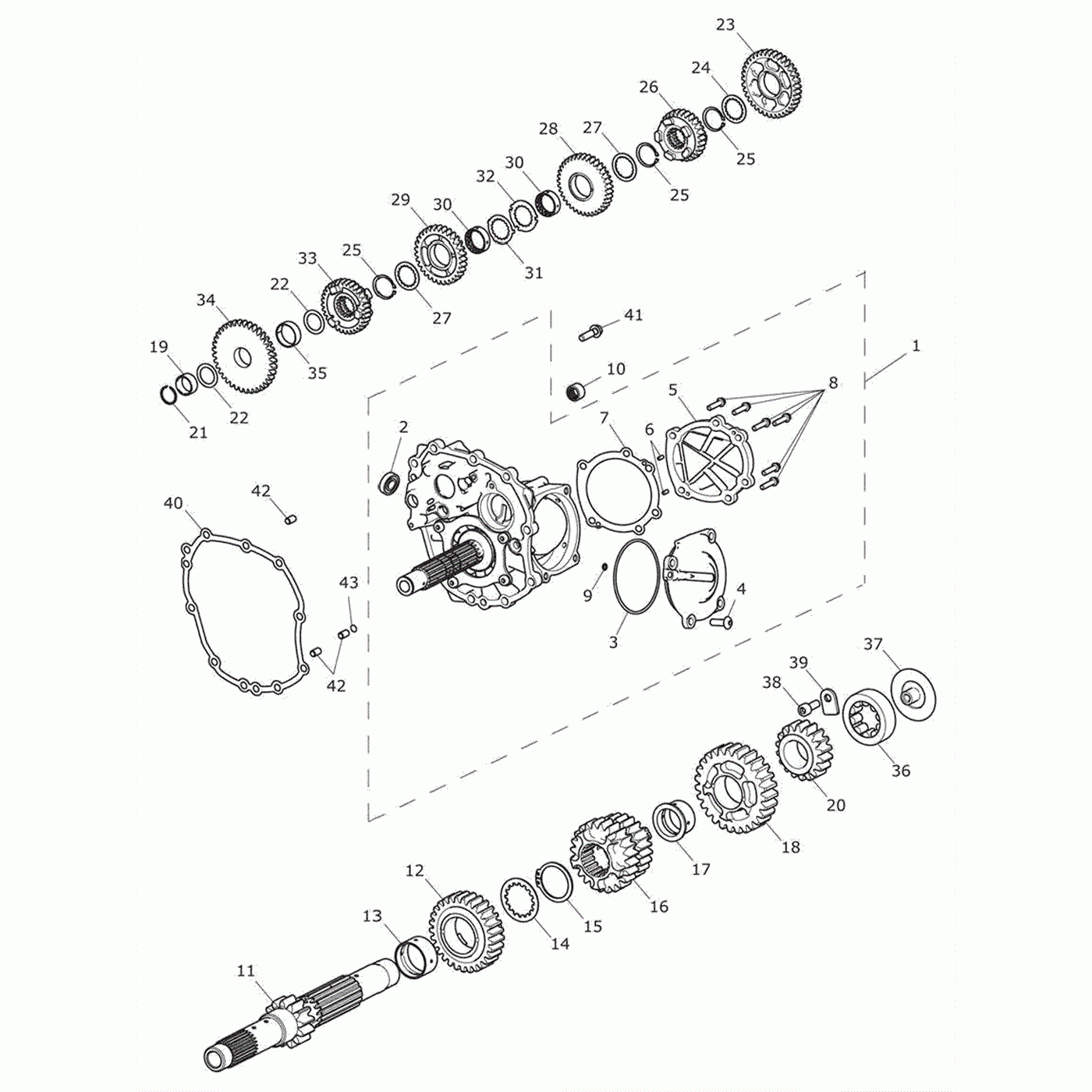

ТРАНСМИССИЯ

Triumph Tiger Explorer

ТРАНСМИССИЯ

#

oem код

название

цена

1

Drive Unit, Front Bevel Box

Drive Unit, Front Bevel Box

2

Seal, Oil, 25x42x7

Seal, Oil, 25x42x7

3

O-ring, Id9oxdia2.5

O-ring, Id9oxdia2.5

4

Screw, But/hd, Skt, M8x1.25x25

Screw, But/hd, Skt, M8x1.25x25

5

Cover, Side, Front Beval Box

Cover, Side, Front Beval Box

6

Dowel, Dia 4.0 X 10.0

Dowel, Dia 4.0 X 10.0

7

Gasket, Side Cover, Fbb

Gasket, Side Cover, Fbb

8

Bolt, Hhf, M6x25, S/s

Bolt, Hhf, M6x25, S/s

9

O-ring, Id 5.1xdia 1.6

O-ring, Id 5.1xdia 1.6

10

Bearing, Needle Roller, 20x14x12

Bearing, Needle Roller, 20x14x12

11

Shaft, Input, Vf And Vh

Shaft, Input, Vf And Vh

12

Gear, 5th, Input

Gear, 5th, Input

13

Bush, 5th, Input, Plain

Bush, 5th, Input, Plain

14

Washer, Trust, 38.0 Od X1.0

Washer, Trust, 38.0 Od X1.0

15

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

16

Gear, Input, 3rd/4th, 24t/24t

Gear, Input, 3rd/4th, 24t/24t

17

Bush, 6th Gear, Shouldered

Bush, 6th Gear, Shouldered

18

Gear, Input, 6th, 27t

Gear, Input, 6th, 27t

19

Bearing, Needle, K25x32x16v5

Bearing, Needle, K25x32x16v5

20

Gear, 2nd, Input

Gear, 2nd, Input

21

Circlip, Ext, 23.5x1.2

Circlip, Ext, 23.5x1.2

22

Washer, Thrust, 35 X 25 X 1.0

Washer, Thrust, 35 X 25 X 1.0

23

Gear, 2nd, Output

Gear, 2nd, Output

24

Washer, Thrust, 41 Od X1.5

Washer, Thrust, 41 Od X1.5

25

Circlip, 32mm Shaft

Circlip, 32mm Shaft

26

Gear, Output, 6th, 28t

Gear, Output, 6th, 28t

27

Washer, Thrust,41 Od X 1.5

Washer, Thrust,41 Od X 1.5

28

Gear, Output, 3rd, 38t

Gear, Output, 3rd, 38t

29

Gear, Output, 4th, 31t

Gear, Output, 4th, 31t

30

Bush, 3rd/4th Splined

Bush, 3rd/4th Splined

31

Washer, Splined, Locking, Outer

Washer, Splined, Locking, Outer

32

Washer, Splined, Locking, Inner

Washer, Splined, Locking, Inner

33

Gear, 5th, Output

Gear, 5th, Output

34

Gear, 1st, Output

Gear, 1st, Output

35

Brg, Needle Roller, 25x29x13

Brg, Needle Roller, 25x29x13

36

Brg, Cyl Roller, 24.2x47x14

Brg, Cyl Roller, 24.2x47x14

37

Restrictor, Oil

Restrictor, Oil

38

Screw, Cap/hd, M6x1x16, Enc, Raw

Screw, Cap/hd, M6x1x16, Enc, Raw

39

Keeper Plate

Keeper Plate

40

Gasket, Front Bevel Box

Gasket, Front Bevel Box

41

Bolt, Hhf, Lghtd, M8x1.25x33, Slv

Bolt, Hhf, Lghtd, M8x1.25x33, Slv

42

Dowel, Hollow, 8x14

Dowel, Hollow, 8x14

43

O-ring, Id Dia 8 X Dia 3.5, Fkm

O-ring, Id Dia 8 X Dia 3.5, Fkm
