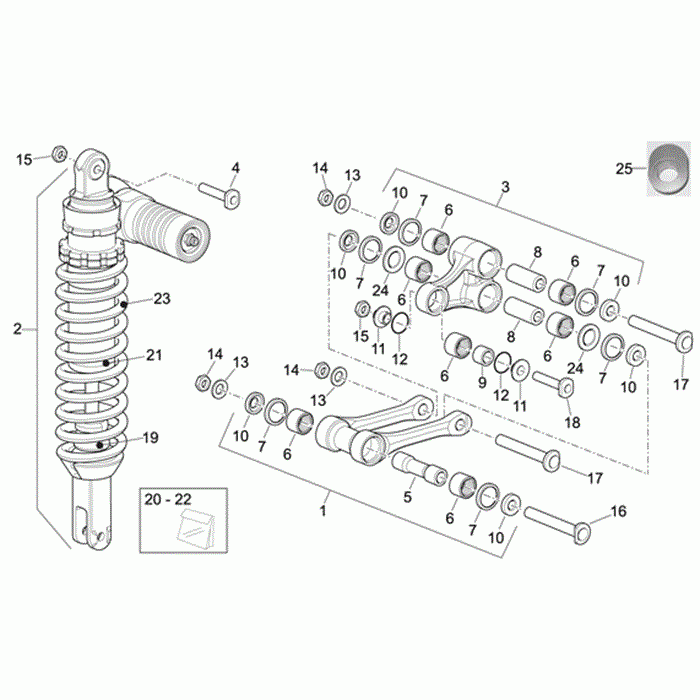

Задний амортизатор

Aprilia RXV-SXV 450-550
Aprilia
#oem кодцена
1
853612
Single Conrod Comp. Vdb
1
AP9100176
Single Conrod Comp.
2
853584
Rear Shock Absorber Sxv Vdb
2
AP9100114
Rear Shock Absorber Sxv Sx
2
AP9100113
Rear Shock Absorber Rxv Rx
2
851292
Rear Shock Absorber Rxv Rally-rx
3
853806
Double Conrod Comp. Vdb
3
AP9100180
Double Conrod Comp. Rally-rx-sx
4
853581
Screw M10x1, 25 L=53 Titan Vdb
4
AP9100007
Screw M10x1, 25 L=53
5
AP9100178
Палец поршневой
5
853574
Piston Pin Titan Vdb
6
AP9100181
Needle Bearing 20x27x15
7
AP9100177
Gasket Ring 25x32x4
8
AP9100184
Палец поршневой
8
853575
Piston Pin Titan Vdb
9
AP9100111
Проставка
10
AP9100179
Проставка
10
853576
Spacer Titan Vdb
11
AP9100186
Outside Spacer
12
AP9100549
O-ring 1, 5x24
13
AP8152018
Шайба 12, 2x22x2
14
AP9100442
Low Self-locking Nut M12x1, 25
14
853578
Low Self-locking Nut M12x1, 25 Vdb
15
853583
Low Self-locking Nut M10x1, 25 Vdb
15
AP9100439
Low Self-locking Nut M10x1, 25
16
AP9100604
Screw M12x1, 25 L=120
16
853577
Screw M12x1, 25 L=120 Titan Vdb
17
853579
Screw M12x1, 25 L=95 Titan Vdb
17
AP9100289
Screw M12x1, 25 L=95
18
AP9100208
Screw M10x1, 25 L=44
18
853582
Screw M10x1, 25 L=44 Titan Vdb
19
AP9100808
Опора
20
AP9100815
Gasket Set Sx
20
AP9100814
Gasket Set Rally-rx
21
AP9100817
Sleeve Unit
22
AP9100820
Sleeve Gasket Set
23
AP9100827
Spring Sx
23
AP9100826
Spring Rx
24
AP9100182
Flat Washer 31x20, 2x1, 4
25
853572
Cam Vdb
