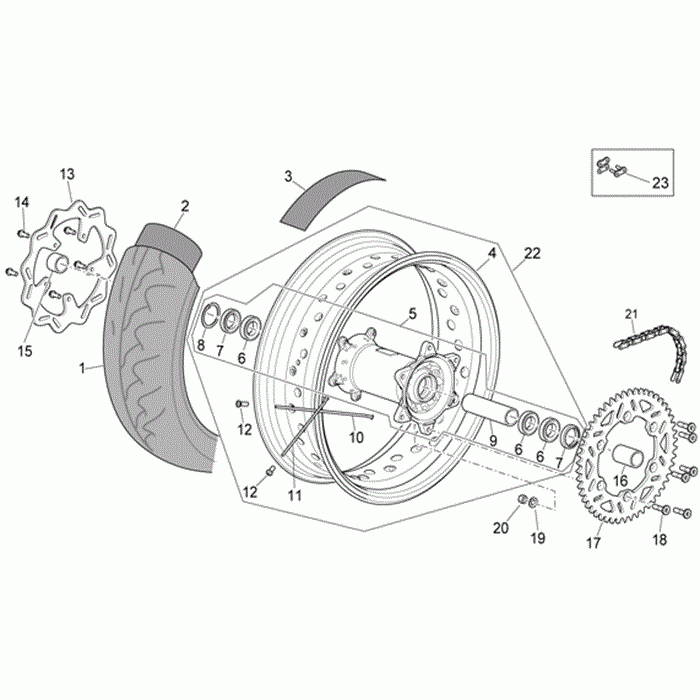

Rear wheel ii

Aprilia RXV-SXV 450-550
Aprilia
#oem кодцена
1
AP9100608
Rear Tyre 180/55x17" Sx
1
853632
Rear Tyre 170/55x17" Vdb
2
AP9100526
Inner Tube 17" Fac
3
AP9100527
Flap 17" Fac
4
AP9100560
Rear Wheel 5, 5x17" Sx
4
853633
Rear Wheel 5, 5x17" Vdb
5
853636
Rear Hub Vdb
5
AP9100322
Rear Hub Sx
6
853626
Ball Bearing 25x42x9 Vdb
6
AP9100216
Ball Bearing 25x42x9
7
AP9100227
Gasket Ring 32x42x7
7
853628
Gasket Ring 28x42x7 Vdb
8
853629
Circlip D.42 Vdb
8
AP8121334
Circlip D.42 125-200
9
853639
Internal Spacer L=134, 3 Vdb
9
AP9100584
Internal Spacer L=134, 3 Sx
10
8536350001
Rear Spoke 4-17"-l.188 Vdb
10
8536350002
Rear Spoke 4-17"-l.199 Vdb
10
AP9100559
Spoke 4-17"-l.189 Sx
11
853634
Spoke D.4-17"-l.184 Vdb
11
AP9100107
Spoke D.4-17"-l.184 Sx
12
AP9100569
Nipple D.4 Sx
12
853621
Nipple D.4 Vdb
13
AP9100466
Rear Brake Disc D.240 Rally-rx
14
853595
Screw W/ Flange M6x16 Titan Vdb
15
AP9100595
Outside Spacer L=21, 9
15
853643
Outside Spacer L=21, 9 Vdb
16
853644
Outside Spacer L=45, 1 Vdb
16
AP9100596
Outside Spacer L=45, 1 Sx
17
AP9100334
Chain Ring Z=46 Sx
17
AP9100335
Chain Ring Z=47 Vdb
17
AP9100932
Chain Ring Z=44 Vdb
17
AP9100333
Chain Ring Z=45 Vdb
18
853640
Screw M8x30 Titan Vdb
18
AP9100467
Screw M8x30 Rally-rx
19
AP8150017
Washer 8, 4x16x1, 6*
20
AP9100432
Low Self-locking Nut M8x1, 25
20
853641
Low Self-locking Nut M8x1, 25 Vdb
21
AP9100715
Chain 5/8x1/4 Sx
21
853645
Chain 5/8x1/4 Vdb
22
853685
Rear Wheel 17" Vdb
22
851066
Rear Wheel 17" Sx
23
853870
Connecting Link Vdb
