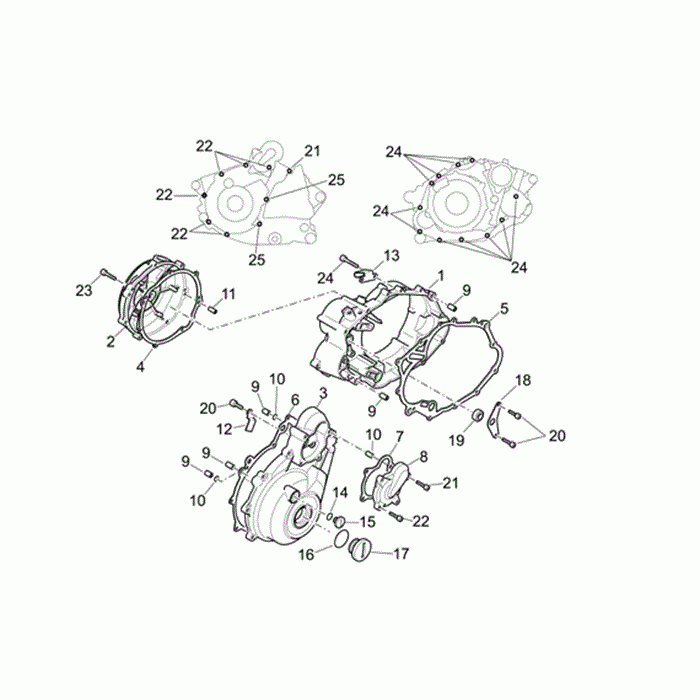

Картер 2

Aprilia Pegaso Strada-Trail 650 IE
Aprilia
#oem кодцена
1
AP8520010
Крышка в сборе
2
AP8520034
Clutch Side Cover Vd0-vda
2
853329
Clutch Side Cover Vdb-vdd-vde
3
AP8520011
Flywheel Side Cover
4
AP8520105
Cover Gasket
5
AP8520106
Clutch Crancase Gasket
6
AP8520108
Flywheel Housing Cover Gasket
7
AP8520283
K.start Cover Gasket
8
AP8520036
Kickstart Cover Vd0-vda
8
853331
Kickstart Cover Vdb-vdd-vde
9
AP8206169
Crankcase Pin D12x16
10
AP8520277
Gasket Ring D12, 6x2, 5
11
AP8520121
Locating Dowel D6, 4x8x16
12
AP8520171
Пластина
13
AP8520169
Cable Fixing Plate
14
AP8520269
Gasket Ring D13, 5x2, 2
15
AP8520039
Plug Vd0-vda
15
853334
Plug Vdb-vdd-vde
16
AP8520281
Gasket Ring D34, 6x2, 5
17
AP8520038
Plug Vd0-vda
17
853333
Plug Vdb-vdd-vde
18
AP8520049
Пластина
19
AP8520288
Oil Seal 14x22x5
20
AP8520245
Винт M6x12
21
AP8520234
Screw M6x35
22
AP8520255
Screw M6x25
23
AP8520246
Screw W/ Flange M6x25
24
AP8520231
Screw M6x30
25
AP8520207
Screw M6x50
