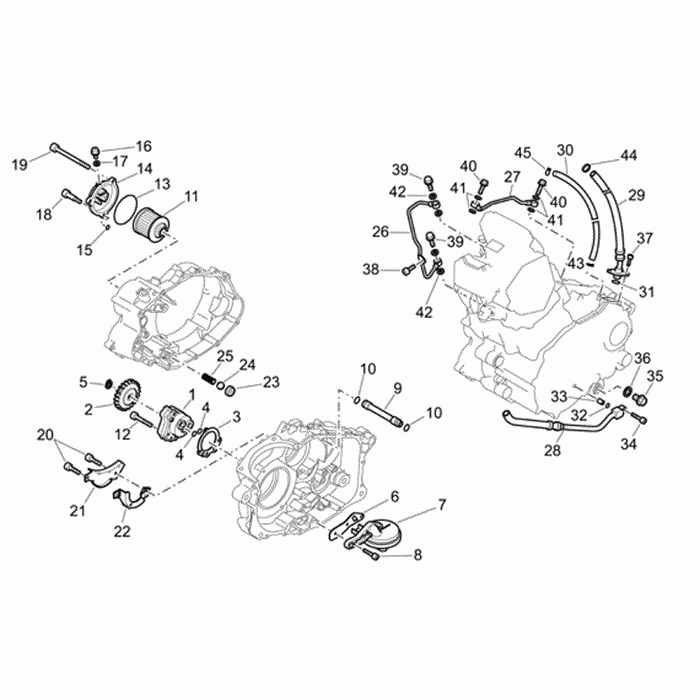

МАСЛЯНЫЙ НАСОС

Aprilia Pegaso Strada-Trail 650 IE
Aprilia
#oem кодцена
1
AP8520016
Oil Pump Assy.
2
AP8520074
Oil Pump Gear Z=64
3
AP8520110
Oil Pump Gasket
4
AP8520277
Gasket Ring D12, 6x2, 5
5
AP8520149
Circlip D11
6
AP8520284
Прокладка
7
AP8520139
Filter With Net-air Intake
8
AP8520232
Screw M6x20
9
AP8520046
Oil Pipe Passaggio Olio 3
10
AP8520278
Gasket Ring D10, 8x2, 4
11
AP8520017
Масляный Фильтр
12
AP8520205
Screw M6x35
13
AP8520268
Gasket Ring D63, 8x3, 7
14
AP8520030
Oil Filter Cover Vd0-vda
14
853326
Oil Filter Cover Vdb-vdd-vde
15
AP8520279
Gasket Ring D6, 9x2, 4
16
AP8520237
Screw W/ Flange M5x0, 8
17
AP8520227
Seal Washer D5, 5x10, 3x1
18
AP8520238
Screw M6x39
19
AP8520239
Screw M6x95
20
AP8520251
Screw M5x8
21
AP8520035
Pump Protection Plate
22
AP8520037
Крышка насоса
23
AP8520287
Oil Seal 6x15x5, 7
24
AP8520101
Ball D9, 53
25
AP8520085
Spring D0, 4
26
AP8520045
Oil Pipe
27
AP8520043
Oil Pipe
28
AP8520165
Oil Inlet Pipe
29
AP8520166
Oil Outlet Pipe
30
AP8520160
Pipe D7x11x660
32
AP8520280
Gasket Ring D9, 8x1, 9
33
AP8502807
Pin D.10x14-int.d.8, 5
34
AP8520255
Screw M6x25
35
AP8520202
Screw W/ Flange M14x1, 5
36
AP8520211
Steel Washer D14x19, 2x2
37
AP8520256
Screw M6x16
38
AP8520245
Винт M6x12
39
AP8520241
Screw W/ Flange M10x1, 25x21
40
AP8520240
Screw W/ Flange M8x1, 25x24
41
AP8520228
Seal Washer D8, 2x15x2
42
AP8520229
Seal Washer D10x16x1, 2
43
AP8520262
Hose Clamp D11
44
AP8102349
White Hose Clip D17, 5x8
45
AP8102738
Зажим
